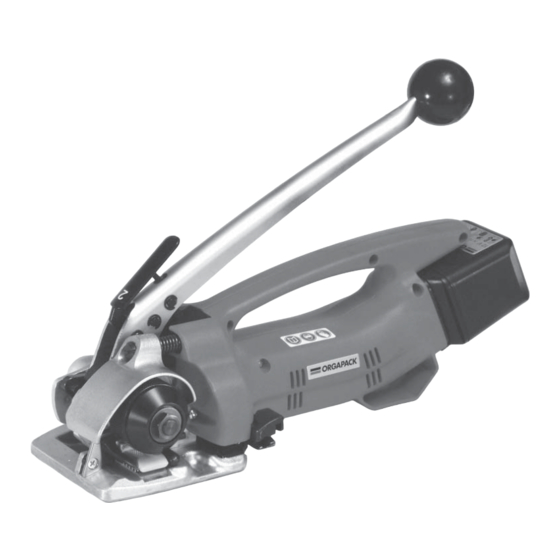

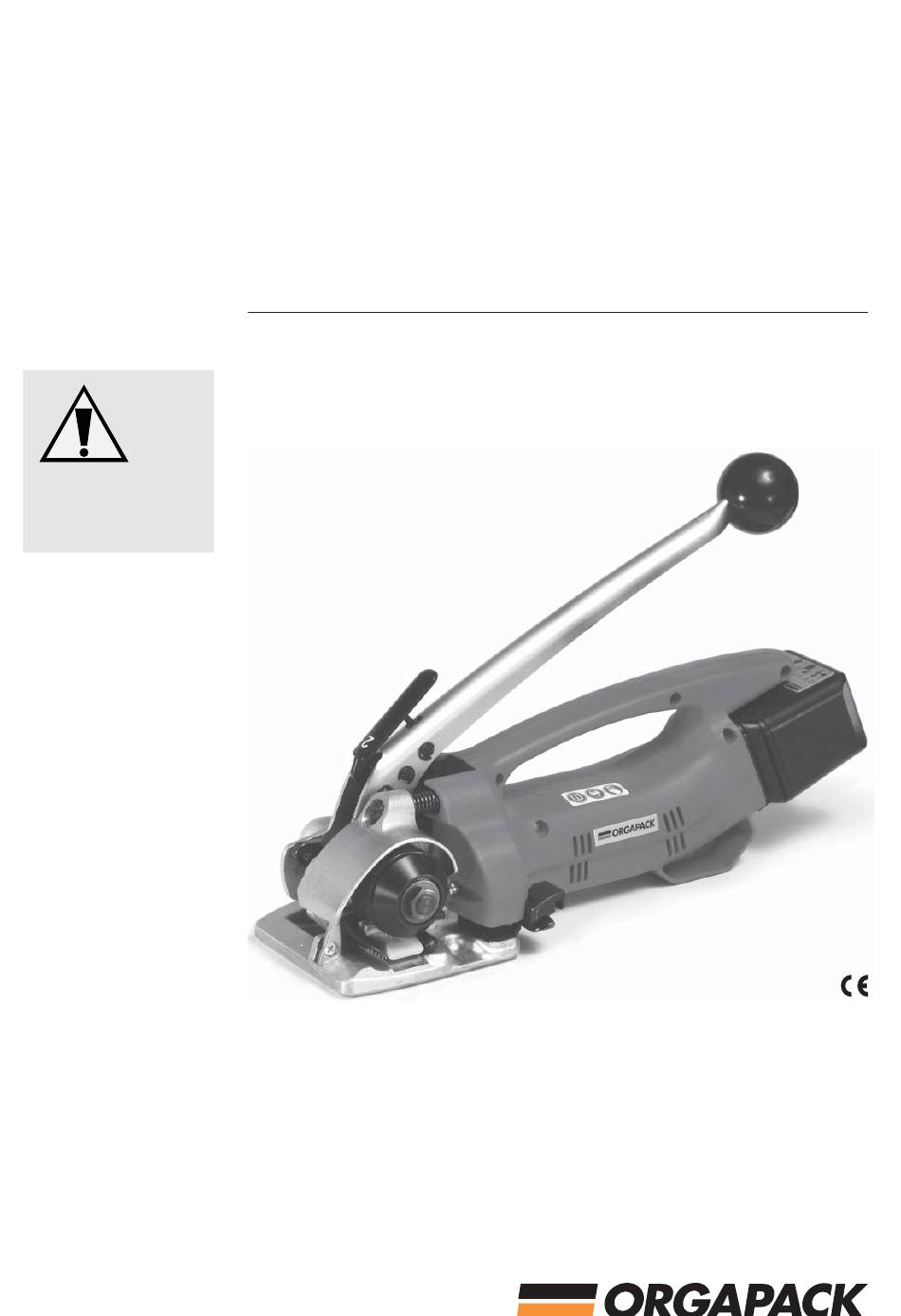

  • Page 1 H-1334 OR-T 50 Hand tool for plastic strapping Before using the tool, read the operating instructions carefully. 02/11...
  • Page 2: Table Of Contents

    ORGAPACK OR-T 50 TABLE OF CONTENTS TECHNICAL DATA Page Weight 4 kg (8.8 lbs.) Dimensions Length 400 mm (15.75“) Information on environmental protection ) “ ) “ Safety instructions for battery Strap tension With friction clutch fully Battery charger indicators...
  • Page 3: Information On Environmental Protection

    ORGAPACK OR-T 50 GENERAL INFORMATION These operating instructions are intended to simplify familiarisation with the strapping tool and its proper CAUTION! use for the intended purpose. The operating instruc- tions contain important information concerning the Used where there is dan- safe, proper and effi...
  • Page 4: Safety Instructions For Battery

    ORGAPACK OR-T 50 SAFETY INSTRUCTIONS Inform yourself! Original ORGAPACK spare Original Read the operating instructions parts must be used exclusi- carefully. vely! jklsfjklsdjš lksdfjkl Preventive and corrective main- Not using original spare parts jkljsdllkjjkljsd fkljjklkjkljsdafj ORGAPACK asdfjklkjjkljklj ksldafkjkljklš jkljklkljsdafjlkj tenance on the tool may only...
  • Page 5: Battery Charger Indicators

    ORGAPACK OR-T 50 DESCRIPTION 4.1 DESIGN 1 Welding lever 2 Tension lever 3 Battery 4 Cutting device 5 Tension shoe 6 Tension wheel 7 Potentiometer „Welding time“ 8 Indicator „Battery“ 9 Battery charger 10 Adapter Fig. 1 4.2 BATTERY CHARGER INDICATORS...
  • Page 6 ORGAPACK OR-T 50 INITIAL OPERATION 5.1 BATTERY CHARGER AL 60 DV 1419 The battery charger is suitable only for charging 7.2 V - 14.4 V (NiCd/NiMH) batteries (voltage between 7.2 V and 14.4 V). Fig. 3 5.2 FIRST BATTERY CHARGE...
  • Page 7: Operating Instructions

    ORGAPACK OR-T 50 OPERATING INSTRUCTIONS 6.1 OPERATING THE TOOL – Insert charged battery and close the bow spring (5/1). Fig. 5 – Place the strap around the package and hold it with the left hand so that the lower strap lead is approx.
  • Page 8 ORGAPACK OR-T 50 – Insert the strap from coil holder between the tension wheel (7/3) and the tension shoe (7/2). Then insert the strap into the slot of the cutting device (7/1) until stop is reached. Fig. 7 – Hold the tool by the grip with the left hand and...
  • Page 9 ORGAPACK OR-T 50 – Bring back the tension lever to the intermediate position, push the yellow welding lever towards the tension lever. Now the tool is ready for sealing the straps. Fig. 9 – Push lever to stop (sealing position). The left hand remains on the handle of the tool to bear the coun- terforce.
  • Page 10: Preventive And Corrective Maintenance

    ORGAPACK OR-T 50 PREVENTIVE AND CORRECTIVE MAINTENANCE 7.1 CHANGING THE BATTERY t i l , y l Continuous red light – Open bow spring and remove discharged battery. – Insert charged battery and lock with bow spring. When changing the battery, the new battery must only be inserted after approx.
  • Page 11: Adjusting Strap Tension

    ORGAPACK OR-T 50 7.3 ADJUSTING STRAP TENSION The maximum strap tension is determined by the adjustment of the friction clutch. For this reason two fork wrenches are supplied. – – Block the tension shaft with the small fork wrench (SW 11).
  • Page 12: Changing The Tension Wheel

    ORGAPACK OR-T 50 7.5 CLEANING THE TOOL If the tool is used in a dusty environment, it is recommended to clean the tool regularly. The tension wheel (18/1) in particular should be kept clean. – Clean the tension wheel with the steel brush sup- plied with the tool.

This manual is also suitable for:
