dB Technologies VIO X315 Quick Start User Manual

VIO X315
MAIN FEATURES
• Modular point source system
• Impressive sound pressure
• New powerful amplifier
• Quick installation
• Easy handling and transport
• Stack or flyable use
• AURORA Net control
PACKAGE CONTENTS
The box contains:
N°1 VIO X315 loudspeaker
N°1 mains cable
N°1 fuse for 100-120Vac power supply
N°1 tranport cover
This quick start and warranty documentation
DESCRIPTION

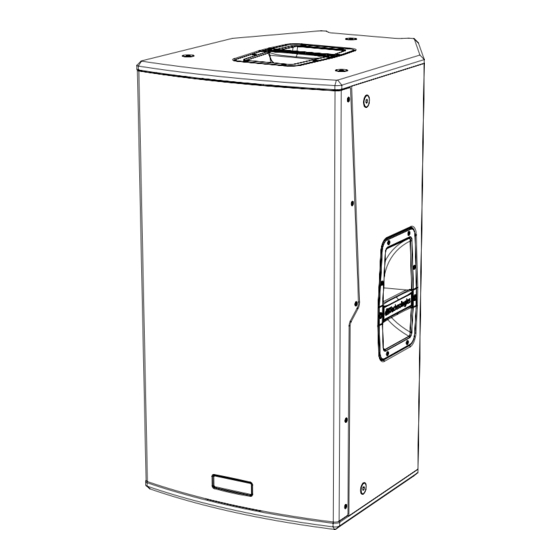

VIO X315 is the new dB Technologies 3-way active
speaker for professional use. It is equipped with: one
coaxial neodymium transducer (MF voice coil: 4", HF
voice coil: 2,5", HF exit: 1.4") and a 15" neodymium
woofer (4" voice coil). The coverage pattern is 90° (H)
x 50° (V) (5° tilted down). The horn is rotatable and
the mechanical design allows an easy, accurate and
quick installation for stand or flyable use. The powerful
DigiPro G4 amplifier section, capable of handling up
to 1400 W (RMS power), is controlled by a DSP, which
can perform a detailed customization of the output
sound of the speaker. In addition, the integrated RDNet
connections are useful for a remote in-depth control
and configuration using AURORA NET software.
QUICK START USER MANUAL SECTION 1
TECHNICAL SPECIFICATIONS
Speaker Type
Frequency Response
[-6dB]
Usable Bandwith
[-10dB]
Max SPL (1 m)
Directivity (HxV)
HF
LF
Crossover Frequency
Amplifier
Power Supply
Cooling
Operating Range
Limiter
Processing
Controller
AD/DA Converter
Controls
Signal Input
Signal Output
Housing
Rigging Points
Dimensions (WxHxD)
Weight
1

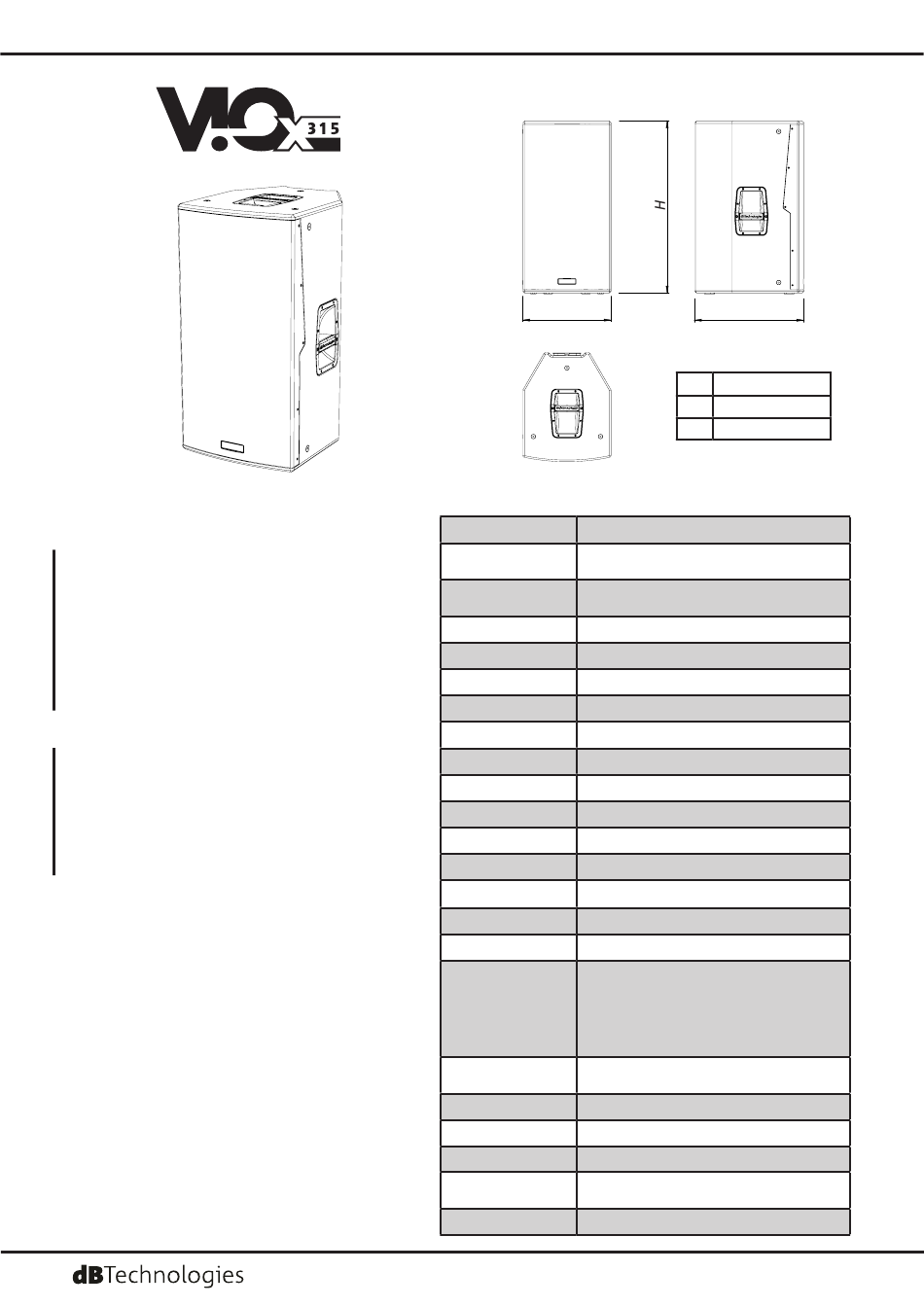

DIMENSIONS
W
3 Way Active Loudspeaker
37 - 18.000 Hz
34 - 19.200 Hz
137 dB
90° x 50° (5° tilted down)
4" - 2.5" coax neodymium, 1.4" exit
15" neodymium, 4" v.c.
550 Hz (LF - MF), 4 kHz (MF -HF) 24 dB/oct
Digipro® G4 1400 W RMS Class-D (4 channels)
Full-range SMPS with PFC
Passive (convection)
220-240V~ (50-60Hz)/100-120V~ (50-60 Hz)
Peak, RMS, Thermal
FIR Linear Phase Filters
32 bit DSP
24 bit/96 kHz
1x Rotary Encoder (8x EQ presets)
1x Ready LED
1x Mute/Prot LED
1x Signal LED
1x Limiter LED
1x System Test button
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x
USB (Data Service)
1x XLR balanced, 1 x RJ45 Link (RDNet)
Wooden box - black finished
4
420x820x520 mm
(16.5x32.3x20.5 in)
39.5 Kg (87.1 lbs.)
info@dbtechnologies-aeb.com
420120425Q REV1.0
D
W 420mm (16.5 in)
H 820mm (32.3 in)
D 520mm (20.5 in)
