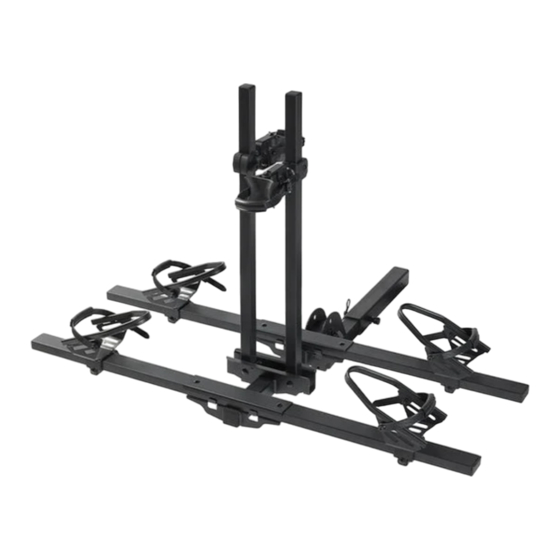

2'' hitch 2-bike rack
Hide thumbs Also See for Fellow:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fellow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Young Electric Fellow

Summary of Contents for Young Electric Fellow

  • Page 2 Parts...

  • Page 3: Parts List

    Part# Description Parts List φ16 Spring Washer Part# Description φ16 Flat Washer Rotating Group Bottom Fixing Bracket φ16 Bent Pin Requied Tools（Not included） M16x85 Hexagon Boltt Name Imperial Metric M16 Lock Nut Monkey Wrench 12’’ 300mm φ3.8 Pin Open Wrench 7/16’’...
  • Page 4 the gap between Bottom Fixing Bracket (2) and Rotating Group STEP1 (1). Note: Do not overtighten the bolts to prevent Bottom Fixing Bracket (2) and Rotating Group (1) components from rotating easily. Align the Bottom Fixing Bracket (2) with the hol e of the Rotating Group (1), insert the M16*85 Outer Hexagon Bolt (4), and then screw on the M16 Lock Nut (5).
  • Page 5 STEP2 STEP3 Insert the Left and Right Wheel Holder (9, 10) into the Beam Insert the component in step 2 into the component in step 1, and Assembly (8) respectively, then center them appropriately to fit fasten them with the Reinforcement Plate (11), put the 8 Flat the distance between bike tire.
  • Page 6 STEP4 STEP5 50Nm Insert Middle Support Tube (15) into the base of Bottom Fixing Install the adjustable Connecting Block (18) to the Middle Bracket (2), then fix them with M10x60 Bolt (16) and M10 Lock Support Tube (15), then tighten the knob from the Connecting Nut (17).
  • Page 7 STEP6 The diameter of lock beam should be less than 7mm. The lock is not included. 2" Align the holes of the folding tube with the holes on the vehicle’s 2’’ hitch receiver, then connect the two parts as shown below. Place an M16 Shockproof Bolt (19), through the φ16 Spring Washer (20), φ16 Flat Washer (21) and the align the holes.

  • Page 8: Folding Steps

    Folding Steps ∶ · ∴ ∷...
  • Page 9 Bike Installation Instructions It will be easier to install if turning the Middle Support Tube (15) to be a horizontal position before placing bike(s) on platform. It should place the first bike or a bike to the side which is close to the vehicle. Note: Use the ratchet wheel strap to fix and tighten the seat tube or horizontal tube of the bicycle.

  • Page 10: Technical Specifications

    Applicable Hitched Bike Types: Electric Bike/Regular Bike  Not intended for use with mopeds, motorcycles or 3  wheels bikes Universal sized up to 5'' wide tire  Model Name YOUNG ELECTRIC Fellow Description 2'' Hitch 2-Bike Rack Material Steel Maximum Weight Capacity 200lbs Applicable Vehicles...
  • Page 11 ⚠ WARNINGS ⚠ Do not overload beyond the bike rack’s weight capacity of 200lbs.  Do not carry more than 2 bikes on the carrier.  The bike rack is not intended for transporting humans or animals.  If you are planning to load only one bike, it is recommended to place it in the position closest to the vehicle. ...
  • Page 12 Young Electric) is a purchaser’s exclusive remedy under this Young Electric Warranty Policy warranty. Young Electric is committed to providing our customers with a quality shopping experience, for the products we sell, we provide Young Electric shall not be liable for any direct, indirect,...

  • Page 13: Get Support

    Get Support https://youngelectricbikes.com support@youngelectricbikes.com Toll Free Number: 888-933-8899...
