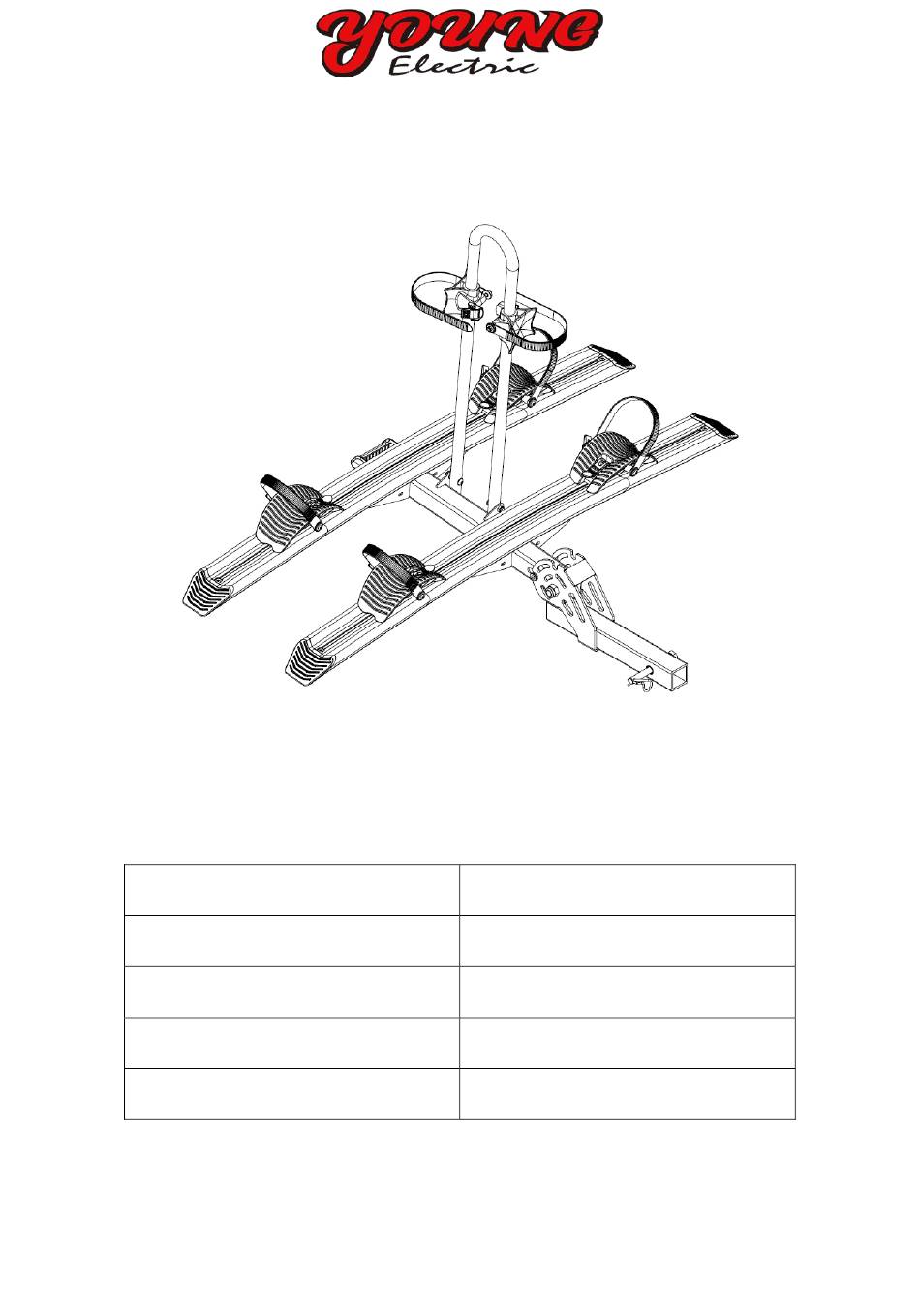

- Page 1 Aluminum Hitch-Mounted Bike Carrier Item# 10104098 Technical Specifications Property Specification Length 51.5″ Width 37.2″ Height 38.6″ Maximum Weight Capacity 200LBS* *-Do not use on RV.
-
Page 2: Parts List
Diagram Parts List Part # Description Part # Description Folding Connector U-Shaped Tube Supporting Tube M8x40 Hexagon Bolt M16x80 Hexagon Bolt M16 Shockproof Bolt φ16 Spring Washer M16 Lock Nut φ16 Flat Washer Crossbeam M8x20 Carriage Bolt φ3.8 Pin (pre-installed) φ8 Flat Washer φ8 Nylon Washer M8 Lock Nut... - Page 3 ⚠ WARNING⚠ Do not overload beyond bike rack’s weight capacity of 200 lbs (120lbs when used in a RV). Do not carry more than 2 bikes on the carrier. The bike rack is not intended for transporting humans or animals. ...
- Page 4 Assembly Instructions Step 1: Align the holes on the supporting tube (2) and folding connector (1), then connect the two parts by inserting the M16*80 hexagon bolt (3) through the holes. Secure the bolt in place by screwing on the M16 lock nut (4).
- Page 5 Step 2: Install a crossbeam (5) on the supporting tube (2) closest to the folding connector, making sure the crossbeam is centered on the supporting tube. Locate the M8*20 carriage bolts in the crossbeam and align each of them with a slot in the supporting tube. Place φ8 Flat Washers (6) below the supporting tube and secure the bolt and washer in place with M8 lock nuts (7).
- Page 6 Step 3: Install the other crossbeam (5) on the supporting tube (2), farthest from the folding connector. Follow the steps outlined in Step 2.
- Page 7 Step 4: Slide the blocks (15) on the U-Shaped Tube (8), ensuring the straps are facing outward. Step 5: Align the holes on the U-Shaped Tube (8) with the holes from supporting tube (2), then connect the two parts. To do this, insert a M8*40 hexagon bolt (9) through a φ8 Nylon Washer (14), the holes on the U-Shaped Tube, another φ8 Nylon Washer (14) and the hole on the supporting tube.
- Page 8 Step 6: Align the holes of the folding tube with the holes on the vehicle’s 2’’ hitch receiver, then connect the two parts as shown below. Place an M16 shockproof bolt (10), through the φ16 Spring Washer (11), φ16 Flat Washer (12) and the aligned holes. Secure the bolt in place with the 3.8 pin (13), making sure to place the pin through the holes on the bolt.
- Page 9 Bike Installation Instructions STEP 1: If you are planning to load only one bike, we recommended to placing it on the crossbeam closest to the vehicle. Press the buckle on each wheel cradle to release the straps, as shown below. Note: The bicycle’s front tire should be on the driver’s side of the vehicle.
- Page 10 2A. How to secure the wheel cradle. Pull the cam gear Press it down Turn it clockwise 2B. How to release the wheel cradle. Turn it Pull the cam gear Press it down Counterclockwise STEP 3: Secure the bicycle in the wheel cradles. Insert a strap through each rim, then reinsert the strap into the buckle on the wheel cradle.
- Page 11 Step 4: If desired, place a second bike on the crossbeam farthest from the vehicle. Follow the process outlined in Steps 1-3, but ensure the bicycle’s front tire is on the passenger’s side of the vehicle and do not move the U-Shaped Tube. Instead, adjust the second block to ensure it will rest comfortably against the second bicycle.
- Page 12 Carrier Folding Instructions Folding Status 1 Press the U-Shaped Tube in the area shown at right. Then, while continuing to press, lower the U-Shaped Tube so that it sits level with the crossbeams as shown below. Ensure that each block faces the inside of the U-Shaped Tube.
- Page 13 Folding Status 2 Pull the handle in the direction the arrow shows to fold the bike rack vertically, or to unfold it so it sits flat. The bike rack will automatically stop when it reaches a fixed position. Handle...
