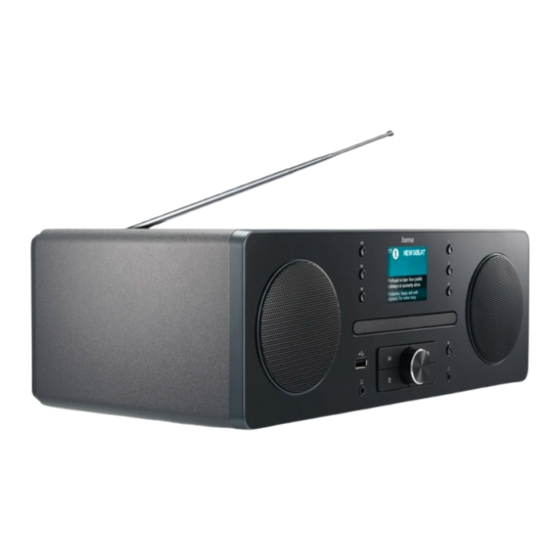

00054254
(DR1560CBT)
Digital Radio
Digital-Radio
Operating Instructions / Bedienungsanleitung / Mode d'emploi / Instrucciones de uso /
Руководство по эксплуатации / Istruzioni per l'uso / Gebruiksaanwijzing / Οδηγίες χρήσης / Instrukcja obsługi /
Használati útmutató / Návod k použití / Návod na použitie / Manual de instruções / Kullanma kılavuzu /
Manual de utilizare / Bruksanvisning / Käyttöohje / Работна инструкция / Betjeningsvejledning / Manuelt stasjonssøk
Advertisement
Table of Contents
Related Manuals for Hama 00054254
Summary of Contents for Hama 00054254
- Page 1 00054254 (DR1560CBT) Digital Radio Digital-Radio Operating Instructions / Bedienungsanleitung / Mode d‘emploi / Instrucciones de uso / Руководство по эксплуатации / Istruzioni per l‘uso / Gebruiksaanwijzing / Οδηγίες χρήσης / Instrukcja obsługi / Használati útmutató / Návod k použití / Návod na použitie / Manual de instruções / Kullanma kılavuzu /...
-
Page 2: Table Of Contents
Table of conTenTs 1. Table of contents 1. Table of contents ............2 2. - Page 3 Table of conTenTs 12.2 Aux In ..............18 12.3 USB.
-
Page 4: Introduction
InTRoDUcTIon 2. Introduction Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner. -
Page 5: Safety Instructions
safeTy InsTRUcTIons 3. safety instructions • The product is intended for private, non-commercial use only. • Do not use the product in areas in which electronic products are not permitted. • Protect the product from dirt, moisture and overheating and use it in dry rooms only. •... -
Page 6: Setting Up The Radio And Accessories
seTTInG UP The RaDIo anD accessoRIes 4. setting up the radio and accessories 4.1 Rear view Designation function Antenna... -
Page 7: Front View
seTTInG UP The RaDIo anD accessoRIes 4.2 front view 11 10 12 button Designation button Designation [PRESET 1] button [MENU/SETTINGS] button [PRESET 2] button [MODE] button [PRESET] button [HOME] button [Play/Pause] button [BACK] button [Forward] button [POWER/VOLUME/ENTER/ [Back] button NAVIGATE] button Button (CD eject) USB connection Headset connection (3.5 mm) -
Page 8: Operating Concept
oPeRaTInG concePT 5. operating concept 5.1 General operation Icon Designation function Hand symbol Press once Hand symbol Press multiple times Hand symbol Press repeatedly Hand symbol Hold for 3 seconds button Designation function • Navigation forwards in the current menu •... -
Page 9: Managing Favourites
oPeRaTInG concePT 5.3 Managing favourites button Designation function • short button press: Access favourite storage space 1 for current playback mode [PReseT 1] button • long button press: Save the current station to favourite storage space 1 • short button press: Access favourite storage space 2 for current playback mode [PReseT 2] button... -
Page 10: Setup
• The power supply unit is suitable for mains voltages between 100 and 240 V and can therefore be used on virtually any AC power grid. Please note that a country-specific adapter may be necessary. • You can find an appropriate selection of Hama products at www.hama.com. Once the product has been connected to mains power, initialisation takes place. -
Page 11: Navigation And Controls
naVIGaTIon anD conTRols 7. navigation and controls Once the radio has been initialised for the first time, switch it on using the button (Power button) naVIGaTe if required to start the product setup process. Below, the relevant steps are explained in brief. Further information can be found in the relevant detailed sections. -
Page 12: Managing Favourites
3 - Rockantenne 4 - Bayern 1 5 - ... 6 - ... 7 - ... 12:35 12:35 Antenne Bayern Antenne Bayern Artist: Hama Artist: Hama Song: Hama Song: Hama naVIGaTe 12:35 RECALL FROM PRESET Antenne Bayern 1 - Antenne Bayern... -
Page 13: Screen Display
naVIGaTIon anD conTRols 7.5 screen display For playback modes that display image content, which can be slideshow content, station logos or album covers, for example, you can choose between different display methods. enTeR 1) Split screen 2) Display of image content on the entire screen Please refer to the operating concept for the key assignment. -
Page 14: Menu Structure
MenU sTRUcTURe 8. Menu structure This device has a variety of reception methods and additional functions. These are summarised in the radio's main menu and divided into several sections. The following overview should help you to find the desired function in the menu structure quickly. The exact explanations are gone into in more detail in the following section and each operation is illustrated graphically. -
Page 15: Dab-Radio
Dab-RaDIo 9. Dab-Radio This radio receives all common digital radio frequencies in the range of 174 MHz to 239.2 MHz. The automatic DAB station search starts automatically when DAB mode is started for the first time. As soon as this has been completed, the current station list is displayed. By calling up the corresponding DAB settings menu, you can access the following settings options and –... -
Page 16: Ukw-Radio
UKW-RaDIo 10. UKW-Radio This radio has a software-based VHF receiver that can receive and play analogue radio. It covers the frequency range from 87.5 MHz to 108 MHz. automatic station search The radio automatically searches for stations that can be played back with sufficient quality. As soon as a –... -
Page 17: Repeat
• The storage medium is now read in and playback is started. 12:35 Interpret 1 Artist: Hama Track: Hama 11.1 Repeat The "Repeat" function offers the option of repeating individual tracks or everything. If one of these functions is activated, the radio repeats the corresponding playback until you deactivate the function again - i.e. -
Page 18: External Sources
eXTeRnal soURces 12. external sources 12.1 bluetooth streaming This radio has a Bluetooth receiver which allows you to transfer audio content to the radio. The ® transmitting device, for example a smartphone, is connected to the radio for this purpose and the audio content is transmitted directly to the radio. -
Page 19: Usb
eXTeRnal soURces 12.3 The radio has a USB port that allows you to play external storage media. Please note that only storage media formatted in faT32 format are supported - other file systems can lead to problems in recognising the storage medium and prevent playback. The radio supports the playback of MP3 files. -
Page 20: Routines
RoUTInes 13. Routines This radio has comfort functions which are available in addition to traditional radio playback. 13.1 alarm The radio has two individually adjustable alarm times. Alarm 1 and alarm 2 are configured in the same way. MaIn MenU configuration First select whether you want to configure alarm 1 or alarm 2 and then specify the exact details: status... -
Page 21: Settings - Summary
seTTInGs - sUMMaRy 14. seTTInGs - summary The system settings are divided into four main categories under which the other settings are located. seTTInGs aUDIo seTTInGs seTTInGs equaliser My eQ-settings DIsPlay seTTInGs Time-out backlight on level Dim level enTeR obsidian Ruby Theme emerald... -
Page 22: Audio Settings
aUDIo seTTInGs 15. audio settings 15.1 equaliser The equaliser allows you to adjust the sound of the radio to suit your preferences by amplifying or reducing the amount of bass or treble in the audio . You can choose from preconfigured profiles, adjusted to suit a variety of music genres, or create your own custom profile. -
Page 23: Display Settings
DIsPlay seTTInGs 16. Display settings 16.1 backlight 16.1.1 Time-out This setting refers to the radio's standby mode, i.e. when the radio has been set to standby. The "Wait" function refers to the period of time between switching off the radio and adjusting the lighting intensity. seTTInGs If the timeout function is deactivated, the intensity of the display illumination is adjusted immediately when the radio is put into standby mode. -
Page 24: System Settings
sysTeM seTTInGs 17. system settings The radio's general settings are summarised under the System item. 17.1 Time/Date 17.1.1 set Time/Date seTTInGs If you want to set the date and time manually, you can do this via the screen mask and confirm the entries one after the other for the day, month, year, hours and minutes. -
Page 25: About-System Information
18.1 Info A summary of the radio's software and hardware. You can find the current software version of your device seTTInGs in this information, should you require support from Hama's product advice team. naVIGaTe about-system Information... -
Page 26: Technical Data
Built-in power supply, AC100-240V, output power 32W English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, languages supported Portuguese, Spanish, Swedish, Turkish, Czech, Slovak Packaging contents Hama DR1560CBT, Quick Start Manual connectivity bluetooth receiver (RX): V5.0, class 2, A2DP, AVRCP Charge: 5 V / 1 A... - Page 27 Bluetooth SIG, Inc. and ® any use of such marks by Hama GmbH & Co KG is under license. Other trademarks and trade names are those of their respective owners. All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,...
