00054228
00054230
(
)

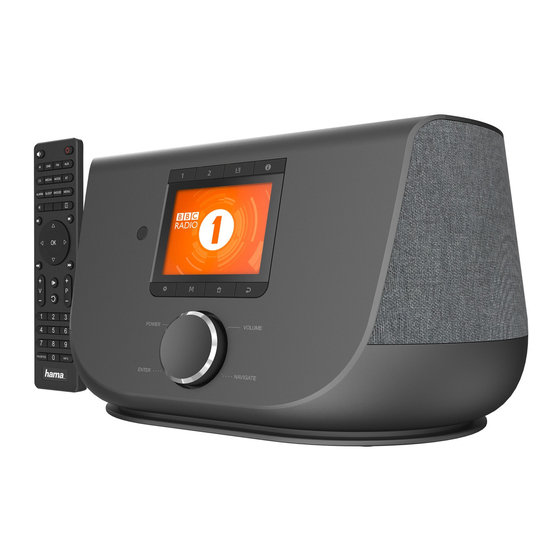

DIR3300SBT
Digital Radio
Digital-Radio
Operating Instructions / Bedienungsanleitung / Mode d'emploi / Instrucciones de uso /
Руководство по эксплуатации / Istruzioni per l'uso / Gebruiksaanwijzing / Οδηγίες χρήσης / Instrukcja obsługi /
Használati útmutató / Návod k použití / Návod na použitie / Manual de instruções / Kullanma kılavuzu /
Manual de utilizare / Bruksanvisning / Käyttöohje / Работна инструкция / Betjeningsvejledning / Manuelt stasjonssøk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIR3300SBT and is the answer not in the manual?

Questions and answers

Related Manuals for Hama DIR3300SBT

Summary of Contents for Hama DIR3300SBT

  • Page 1 00054228 00054230 DIR3300SBT Digital Radio Digital-Radio Operating Instructions / Bedienungsanleitung / Mode d‘emploi / Instrucciones de uso / Руководство по эксплуатации / Istruzioni per l‘uso / Gebruiksaanwijzing / Οδηγίες χρήσης / Instrukcja obsługi / Használati útmutató / Návod k použití / Návod na použitie / Manual de instruções / Kullanma kılavuzu /...

  • Page 2: Table Of Contents

    TABle Of cONTeNTS 1. Table of contents 1. Table of contents ............2 2.
  • Page 3 TABle Of cONTeNTS 11. Internet radio & podcasts ..........23 11.1 Country (based on the IP address of the radio) .
  • Page 4 TABle Of cONTeNTS 19. System settings - Overview ..........37 20.

  • Page 5: Introduction

    INTRODUcTION 2. Introduction Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

  • Page 6: Safety Instructions

    SAfeTy INSTRUcTIONS 3. Safety instructions • The product is intended for private, non-commercial use only. • Protect the product from dirt, moisture and overheating and use it in dry rooms only. • As with all electrical products, this device should be kept out of the reach of children. •...
  • Page 7 SAfeTy INSTRUcTIONS Warning - Batteries • When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding. • Only use batteries (or rechargeable batteries) that match the specified type. •...

  • Page 8: Information And Notes Before Getting Started

    Note on the UNDOK app A detailed description of the UNDOK app and all of its functions can be found in our UNDOK guide at: www.hama.com - > 00054228 - > Downloads www.hama.com - > 00054230 - > Downloads Note – Optimising reception •...

  • Page 9: Setting Up The Radio And Accessories

    SeTTING UP The RADIO AND AcceSSORIeS 5. Setting up the radio and accessories 5.1 Rear view Designation function Mains connection Connection of the enclosed mains adapter to the power supply Analogue connection with external audio sources via 3.5 mm Aux-in (3.5 mm) audio cable Analogue connection with wired headphones with 3.5 mm jack Headphone connection (3.5 mm)

  • Page 10: Front View

    SeTTING UP The RADIO AND AcceSSORIeS 5.2 front view No. Button Designation Favourites button 1 Favourites button 2 List of favourites Information Infra-red sensor remote control 2.8" colour screen Settings Mode Playback display Back Navigation / ENTER / Volume...

  • Page 11: Remote Control

    SeTTING UP The RADIO AND AcceSSORIeS 5.3 Remote control Button Designation Power Mute Favourites buttons 1-4 Equaliser List of favourites Menu Mode Navigation buttons left, right, up, down Reduce volume Increase volume Playback display Back Information Display illumination Pause Continue Previous track Next track...

  • Page 12: Operating Concept

    OPeRATING cONcePT 6. Operating concept 6.1 General operation Icon Designation function Hand symbol Press once Hand symbol Press multiple times Hand symbol Press repeatedly Hand symbol Hold for 3 seconds Remote Button Designation function control • Navigation forwards in the current menu Navigation rotary •...

  • Page 13: Managing Favourites

    OPeRATING cONcePT 6.3 Managing favourites Remote Button Designation function control • Short key press: Access favourite storage space 1 for current playback mode [PReSeT 1] button • long key press: Save the current station to favourite storage space 1 • Short key press: Access favourite storage space 2 for current playback mode [PReSeT 2] button...

  • Page 14: Getting Started

    • The power supply unit is suitable for mains voltages between 100 and 240 V, and is thus operable on almost any AC power grid. Please note that a country-specific adapter may be necessary. • You can find an appropriate selection of Hama products at www.hama.com. Once the product has been connected to mains power, initialisation takes place.

  • Page 15: Prepare The Network Connection/Internet Connection

    GeTTING STARTeD 7.3 Prepare the network connection/Internet connection You can integrate this radio into a local network. To receive internet radio or access non-local media (streaming, such as Spotify Connect), the network must be connected to the internet. Note The LAN connection is less susceptible to faults than a WLAN connection. That´s why it´s recommended to use a wired connection between access point (AP) and radio to ensure an undisturbed reception.

  • Page 16: Wlan/Wifi Connection (Wireless Network)

    GeTTING STARTeD 7.5 WlAN/Wifi connection (wireless network) • Ensure the router is switched on, is functioning correctly and that there is a connection to the internet/ network. • Activate the WLAN function of your router if it is not already activated. •...

  • Page 17: Navigation And Controls

    NAVIGATION AND cONTROlS 8. Navigation and controls Once the radio has been initialised for the first time, switch it on using the button (Power button) if required to start the product setup process. Below, the relevant steps are explained in brief. Further information can be found in the relevant detailed sections.

  • Page 18: Keep Network Connected

    NAVIGATION AND cONTROlS 8.5 Keep network connected This setting is a radio energy-saving function. If the function is switched off, the network function automatically switches to standby mode in order to reduce energy consumption. This means that, when the network function is disabled, the radio cannot be accessed from your PC, smartphone or tablet. 8.6 Network wizard Using the network wizard will help you connect the radio to the local network or Internet.

  • Page 19: Managing Favourites

    6 - ... Amazon Music 7 - ... Save favourites Remote control 12:35 12:35 Antenne Bayern Antenne Bayern Artist: Hama Artist: Hama Song: Hama Song: Hama on the product 12:35 RECALL FROM PRESET Antenne Bayern 1 - Antenne Bayern ENTER...

  • Page 20: Screen Display

    NAVIGATION AND cONTROlS 8.8 Screen display For playback modes that display image content, which can be slideshow content, station logos or album covers, for example, you can choose between different display methods. 1) Split screen 2) Display of image content on the entire screen NAVIGATe Please refer to the operating concept for the key assignment.

  • Page 21: Menu Structure

    MeNU STRUcTURe 9. Menu structure This device has a variety of reception methods and additional functions. These are summarised in the radio's main menu and divided into several sections. The following overview should help you to find the desired function in the menu structure quickly. The exact explanations are gone into in more detail in the following section and each operation is illustrated graphically.

  • Page 22: Dab Radio

    DAB RADIO 10. DAB radio This radio receives all common digital radio frequencies in the range of 174 MHz to 240 MHz (band III, channels 5A to 13F). The automatic DAB station search starts automatically when DAB mode is started for the first time.

  • Page 23: Internet Radio & Podcasts

    INTeRNeT RADIO & PODcASTS 11. Internet radio & podcasts This radio has the ability to play radio stations and podcasts from around the world via Internet radio. When you first enter this mode, the radio displays the possible search and narrowing filters. These can be called up later via the corresponding mode menu.

  • Page 24: Popular

    INTeRNeT RADIO & PODcASTS 11.5 Popular If the search filter "Popular" is selected, you will receive a selection of popular stations from the platform provider based on user figures. 11.6 Discover This function gives you further filter options to refine the selection of suitable search results. Origin You can limit the search to the whole world, continents or individual countries.

  • Page 25: Calling Up The Administration Interface

    INTeRNeT RADIO & PODcASTS 11.8 calling up the administration interface To access the administration interface, you must first determine the radio's IP address on the local network. To do this, open the Network settings display, which you will VIEW SETTINGS find under System Settings - Network &...

  • Page 26: Add Your Own Stations

    INTeRNeT RADIO & PODcASTS 11.9 Add your own stations To add or edit a favourite, click Change. The storage spaces of the web administration correspond to those of the radio. Changes on the radio or in the web interface are adopted accordingly. To edit or add a new station, complete the "Name"...

  • Page 27: Delete Stations

    INTeRNeT RADIO & PODcASTS The added station is now displayed in the radio's favourites list and on the overview page of the web portal. To access the station from the overview page, press "Play". 11.10 Delete stations To delete a saved station, press the "change" button and then "Remove". Note Please note that only stations that offer transmission in AAC or MP3 format are supported.

  • Page 28: Spotify Connect

    Streaming Services Now click on the icon for Spotify Connect. Spotify In the following list view, select the Hama digital radio to which you want to transfer the content. The current playback is now transferred to the radio and continued eNTeR there.

  • Page 29: Amazon Music

    Note on the UNDOK app A detailed description of the UNDOK app and all of its functions can be found in our UNDOK guide at: www.hama.com - > 00054228 - > Downloads www.hama.com - > 00054230 - > Downloads Streaming Services...
  • Page 30 AMAzON MUSIc Search: The search function allows you to search specifically for content or individual keywords. Artist 0 1 2 3 4 5 6 7 8 9 . , - @ ENTER You can use the on-screen keyboard to enter the search term and a b c d e f g h i j k h l m <---- then start the search.

  • Page 31: Music Player (Usb)

    12:35 PLAYLIST Artist 1 1 - Artist 1 2 - Artist 2 Artist: Hama 3 - Artist 3 external Sources Track: Hama 4 - Artist 4 Playlist (up to 200 tracks) Tracks that were previously added to the playlist are displayed in this menu item. Select the desired track here and start playback.

  • Page 32: Ukw Radio

    UKW RADIO 15. UKW radio This radio has a software-based VHF receiver that can receive and play analogue radio. It covers the frequency range from 87.5 MHz to 108 MHz. 15.1 Automatic station search – – ODeR – – The radio automatically searches for stations that can be played back with sufficient quality. As soon as a station is found, the search stops automatically and playback starts.

  • Page 33: Aux In (Playback From External Sources)

    AUX IN (PlAyBAcK fROM eXTeRNAl SOURceS) 16. AUX In (playback from external sources) This radio has a 3.5 mm jack connection that allows you to connect external source devices to the radio. Please note that all operations are carried out via the source device. On the radio, you can only change the volume.

  • Page 34: Bluetooth® Playback (Rx)

    BlUeTOOTh® PlAyBAcK (RX) 17. Bluetooth playback (RX) ® This radio has a Bluetooth receiver which allows you to transfer audio content to the radio. The ® transmitting device, for example a smartphone, is connected to the radio for this purpose and the audio content is transmitted directly to the radio.

  • Page 35: Routines

    ROUTINeS 18. Routines This radio has comfort functions which are available in addition to traditional radio playback. 18.1 Sleep The snooze function provides you with predefined time intervals from which you can choose. Based on the selection, set a time period after which the radio is automatically switched off. MAIN MeNU Note •...

  • Page 36: Timer

    ROUTINeS • If a radio station is selected that is not available at the time of the alarm, the signal tone is played automatically. • Note that synchronisation of the time via the Internet or radio is recommended so that the time is re-synchronised in the event of a power failure.

  • Page 37: System Settings - Overview

    SySTeM SeTTINGS - OVeRVIeW 19. System settings - Overview The system settings are divided into four main categories under which the other settings are located. Network & Sound Submenus Network wizard WPS Setup SySTeM View settings SeTTINGS Manual settings Network settings NetRemote PIN Setup Network profile Clear network settings...

  • Page 38: Network & Audio

    • Numerous settings can be made conveniently via the app! With the free UNDOK app, you can set up the network connection via your smartphone or tablet. • More information is available in the free UNDOK guide from Hama. NAVIGATe 20.1.1 Network wizard • The network wizard guides you through setting up the radio's network and Internet connection.

  • Page 39: Pre-Shared Key (Psk)

    NeTWORK & AUDIO 20.1.3 Pre-Shared Key (PSK) If you have selected "Skip WPS", you will be taken to the input mask for the pre-shared key (PSK), i.e. the password for the WLAN you are trying to connect to. Navigate between the letters (lowercase/ uppercase), numbers and special characters to enter your password in the input mask.

  • Page 40: Wps Setup

    NeTWORK & AUDIO 20.1.5 WPS setup • If this menu item is selected or if you want to establish a connection by pressing a button via the network wizard, the radio display shows "Press WPS button on remote station" after selecting this function.
  • Page 41 NeTWORK & AUDIO Wireless connection - DhcP inactive IP ADRESS Select the "Wireless connection" option and then "DhcP IP adress 2 - Bayern 3 inactive". Now enter the necessary network information such 192.168.2.100 as IP address, subnet mask, gateway address, primary DNS and Subnet mask secondary DNS in the input fields.
  • Page 42 NeTWORK & AUDIO Network profile The radio automatically saves all successful network connections (profiles). This means that re- establishing these connections (for example, after the radio was disconnected from the power supply) does not require you to re-enter the network access information. To remove individual network profiles, select the corresponding network profile and confirm the selection and subsequent prompt with "yeS".

  • Page 43: Bluetooth ® Receiver / Transmitter (Bt Rx)

    NeTWORK & AUDIO 20.2 Bluetooth receiver / transmitter (BT RX) ® This radio has an integrated Bluetooth function that allows streaming (e.g. from a smartphone) on the ® radio. 20.2.1 Bluetooth receiver ® You can pair your terminal devices with the radio using Bluetooth and use this as a playback device.

  • Page 44: Equaliser

    NeTWORK & AUDIO 20.3 equaliser The equaliser allows you to adjust the sound of the radio to suit your preferences by amplifying or reducing the amount of bass or treble in the audio . You can choose from preconfigured profiles, adjusted to suit a variety of music genres, or create your own custom profile.

  • Page 45: Screen Settings

    ScReeN SeTTINGS 21. Screen settings This radio has an integrated twilight sensor that adjusts the lighting intensity of the display to the surrounding lighting conditions. If the sensor is activated, the display is dimmed in a dark environment and illuminated again more strongly when the brightness is sufficient. Note SySTeM The twilight sensor can be controlled automatically with the help of the software.

  • Page 46: System

    SySTeM 22. System The radio's general settings are summarised under the System item. 22.1 Setup wizard We recommend using the setup wizard for quick and easy first-time setup (setting of the time, date, Internet connection, etc.). SySTeM The settings included in the setup wizard can of course also be made or adjusted separately. The wizard SeTTINGS contains the settings: "Time format", "Time synchronisation", "Time zone", "Summer and winter time"...

  • Page 47: Time Display

    SySTeM 22.2.3 Time display You can choose between the display formats of 24 or 12 hours (am/pm) and adjust this at any time. 22.2.4 Setting the time zone You can freely choose between the available time zones of Coordinated Universal Time (UTC) and use time zones from -12 hours to +14 hours.

  • Page 48: About - System Information

    23.1 Info A summary of the radio's software and hardware. You can find the current software version of your device SySTeM in this information, should you require support from Hama's product advice team. SeTTINGS 23.2 Data protection policy The data protection policy is provided by the provider of the web-based applications.

  • Page 49: Technical Data

    DC 12.0 V / 2.0 A, max 24.0 W English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, languages supported Polish, Portuguese, Spanish, Swedish, Turkish, Czech, Slovak Hama DIR3300SBT, power supply, remote GB-RC001, 2x AAA batter- Packaging contents ies, quick start manual, telescope antenna coaxial (pre-mounted) connectivity...
  • Page 50 Bluetooth SIG, Inc. and ® any use of such marks by Hama GmbH & Co KG is under license. Other trademarks and trade names are those of their respective owners. All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,...
