SEE WATER, INC.
WS Series® Simplex Control Panel

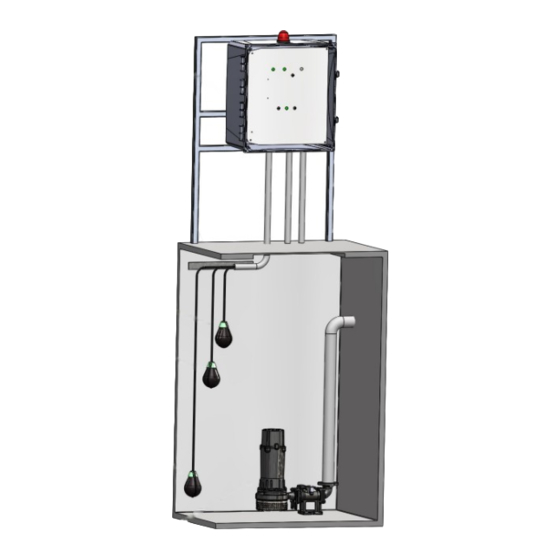

The WS Series® simplex control panels will control a pump in sewage,
wastewater, and dewatering applications. All panels are UL Listed for the
United States and Canada and come with a five-year warranty.
Model
WS1P-TP-1001
WS1P-TP-1002
WS1P-TP-1003
WS1P-TP-1004
WS1P-TP-1005
WS1P-TP-1006
Enclosure Mounting: NEMA 4X RATED
Mounting Brackets - A mounting bracket and screw pack are provided
with the premium enclosures. To assemble, turn the enclosure upside down
on a flat surface, place the mounting bracket over the square boss either
horizontally or vertically, and fasten the mounting bracket with the 1/4"-20
x 0.5 SS, countersunk phillips drive screws or vertically, with the mounting
brackets in any config., using any acceptable fastening technique.
Covers/Doors - Covers/doors have a gasket pre-assembled to seal against
the base.
Note: The control panel should not be mounted in a location that may be
subject to submersion.
www.seewaterinc.com
951.487.8073 • 888.733.9283 • info@seewaterinc.com
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
FLA Range
(0.0-7.0 FLA)
(7.0-15.0 FLA)
(15.0-22.0 FLA)
(22.0-28.0 FLA)
(28.0-36.0 FLA)
(37.0-50.0 FLA)
Page 1-3
Single Phase Simplex Control Panel
Installation and Operation Manual
WS1P-TP-100X

Panel Installation:

1. Caution: To maintain the NEMA 4X rating, make
all wiring connections with seal tight cable grips or
conduit connections.
2. Run pump cables and floats cables through
conduit. Make field connections as shown on wiring
schematic.
3. Run power line conductor through conduit. Wire to
terminals per enclosed schematic.
4. Branch circuit protection to be provided by
installer.
5. Panel circuit breakers are closed.
6. Floats are properly mounted at the correct levels.
Note: Floats shall have free range of motion
without touching each other or other equipment.
7. Connect service conductors 120/208/240VAC to
proper location.
IM 935 REV. 12/21
