See Water OSSIM-TP-30 Series Installation And Operation Manual

SEE WATER, INC.

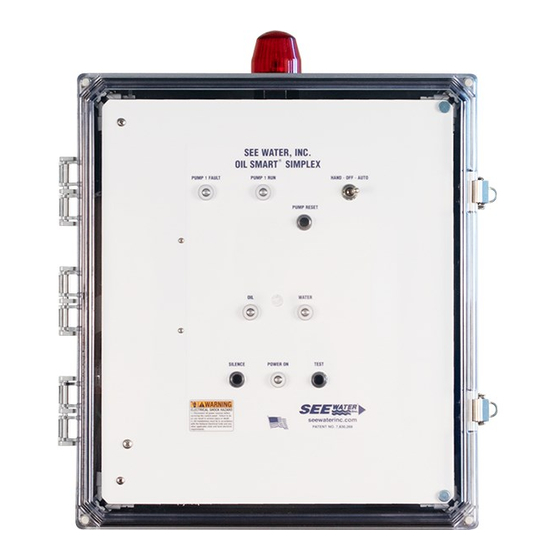

Oil Smart® Simplex System
The Oil Smart® OSSIM-TP-3 system incorporates pump controls and alarm
sensors that differentiate between oil and water, allowing companies to
responsibly discharge the water without the risk of pumping oil. Installation
of the OSSIM-TP-3 keeps companies in compliance with Elevator Code
ASME A17.1 and State/Federal regulations while reducing the risk of adverse
publicity, fines, and expensive cleanup cost.
Model
OSSIM-TP-3001
OSSIM-TP-3002
OSSIM-TP-3003
OSSIM-TP-3004
OSSIM-TP-3005
OSSIM-TP-3006
OSSIM-TP-3007
OSSIM-TP-3008
OSSIM-TP-3009
OSSIM-TP-3010
OSSIM-TP-3011
OSSIM-TP-3012
OSSIM-TP-3013
Enclosure Mounting: NEMA 4X RATED
Mounting Brackets - A mounting bracket and screw pack are provided
with the premium enclosures. To assemble, turn the enclosure upside down
on a flat surface, place the mounting bracket over the square boss either
horizontally or vertically, and fasten the mounting bracket with the 1/4"-20
x 0.5 SS, countersunk phillips drive screws or vertically, with the mounting
brackets in any config., using any acceptable fastening technique.
Covers/Doors - Covers/doors have a gasket pre-assembled to seal against
the base.
Note: The control panel should not be mounted in a location that may be
subject to submersion.
FLA Range
(1.0-1.6 FLA)
(1.6-2.5 FLA)
(2.5-4.0 FLA)
(4.0-6.3 FLA)
(6.0-10.0 FLA)
(9.0-14.0 FLA)
(13.0-18.0 FLA)
(17.0-23.0 FLA)
(20.0-25.0 FLA)
(24.0-32.0 FLA)
(30.0-40.0 FLA)
(37.0-50.0 FLA)
(48.0-65.0 FLA)
Page 1-3
Three Phase Simplex Control Panel
Installation and Operation Manual
OSSIM-TP-30XX
Panel Installation:
1. Caution: To maintain the NEMA 4X rating, make
all wiring connections with seal tight cable grips or
conduit connections.
2. Run pump cables and floats cables through
conduit. Make field connections as shown on wiring
schematic.
3. Run power line conductor through conduit. Wire to
terminals per enclosed schematic.
4. Branch circuit protection to be provided by
installer.
5. Mount Oil Smart® pump switch and Liquid
Smart® alarm sensor with provided mounting
hardware to pump discharge pipe. The 'OFF' sen-
sor of the Oil Smart® pump switch shall be posi-
tioned at least 3" above the impeller of the pump.
6. Mounting of the Liquid Smart® Sensor is applica-
tion driven and is to be placed where a high liquid
is deemed necessary. The Liquid Smart® Sensor
is typically mounted 3" - 6" above the Oil Smart®
Pump Switch.
7. Connect service conductors 208/240/480V to
proper location.
Remote Monitoring Dry Contacts:
• Normally Open dry contacts for high oil, high level,
pump run, and pump fault. Rated 0-60V AC/DC
www.seewaterinc.com
951.487.8073 • 888.733.9283 • info@seewaterinc.com
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
IM 804 REV. 02/20
