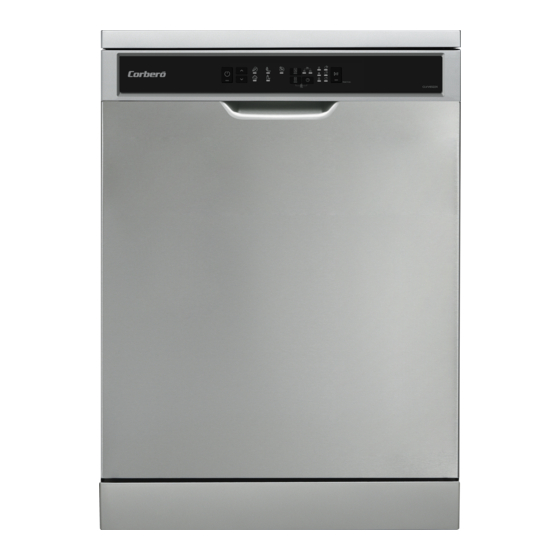

CORBERO CLVV6522X User Manual
  1. Manuals
  2. Brands
  3. CORBERO Manuals
  4. Dishwasher
  5. CLVV6522X
  6. User manual

CORBERO CLVV6522X User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Dishwasher / User Manual
CLVV6522X / CLVV6522W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLVV6522X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CORBERO CLVV6522X

Summary of Contents for CORBERO CLVV6522X

  • Page 1 Dishwasher / User Manual CLVV6522X / CLVV6522W...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6.
  • Page 4 8.CLEANING AND MAINTENANCE ................. 20 8.1. Filters ........................... 20 8.2. Spray Arms ........................20 8.3. Drain Pump ........................21 9.TROUBLESHOOTING ....................22...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 11: Electrical Connection

    To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 12 place Capacity settings Dimensions (mm) Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 47 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Worktop Total power 2. Upper basket with racks 1900(W) 3.

  • Page 13: Before Using The Appliance

    4 BEFORE USING THE APPLIANCE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •...

  • Page 14: Test Strip

    4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    4.11 Rinse-aid usage Add the proper detergent for the selected program to ensure the best performance. The rinse aid helps to dry the dishes without The amount of detergent needed depends streaks and stains. Rinse-aid is required for on the cycle, load size, and soil level of stain-free utensils and clear glasses.
  • Page 16 Level Brightener Dose Indicator Rinse-aid not Wash LED is on. dispensed 1 dose is Dry LED is on. dispensed 2 doses are End LED is on. dispensed 3 doses are Wash and Dry LEDs dispensed are on. 4 doses are Wash and End dispensed LEDs are on.

  • Page 17: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 18 Upper Basket Top basket Height adjustment Fixed Rack Turn the Rail Stop Clips, at the ends of the Upper basket racks have two positions: rails, to the sides to open them (as shown in open (a) and closed (b). You can place cups the image below), then pull out and remove on the racks to be washed.

  • Page 19: Alternative Basket Loads

    5.2. Alternative basket Unsuitable items for dishwashing loads Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
  • Page 20 EN - 15...

  • Page 21: Programme Table

    • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 22: The Control Panel

    7. THE CONTROL PANEL 7. Start/Pause Key When you press the Start/Pause key, the programme you have selected with the programme selection button will start operating and the washing light will be on. After the programme has started, the Start/ Pause light will go off.

  • Page 23: Cancelling A Programme

    7.3. Switching the Machine Off After the programme stops, select a new programme using the Programme Selection When the End light illuminates, Up/Down buttons. press On/Off button to switch your machine off. Disconnect the plug and turn off the water tap. Press the Start/Pause button to start the newly selected programme.

  • Page 24: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 25: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 26: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 27 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 28 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE CODE POSSIBLE FAULT WHAT TO DO Start / Wash Pause Make sure the water inlet tap is open and water is flowing. *Water inlet system Separate the inlet hose from the tap and failure clean the filter of the hose.
  • Page 29 Sevicio Técnico O cial: Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ info@corbero.es web_ www.corbero.es Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
  • Page 30 Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021” 911 08 08 08 Official Technical Service: Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ info@corbero.es web_ www.corbero.es Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
  • Page 31 WWW.CORBERO.ES 52253525 R35...

This manual is also suitable for:

Clvv6522w
