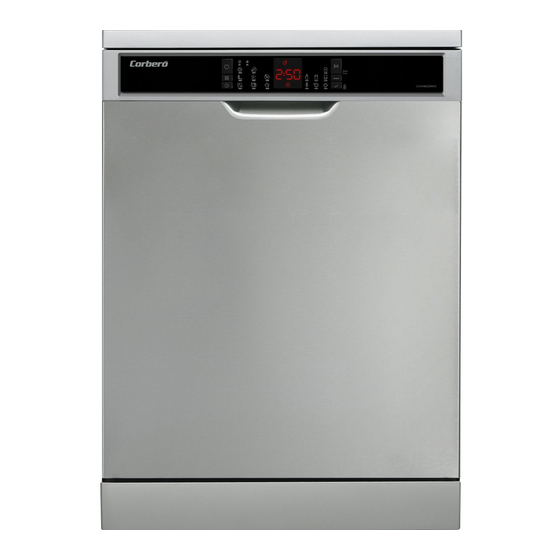

CORBERO CLVV8622INVX User Manual
  1. Manuals
  2. Brands
  3. CORBERO Manuals
  4. Dishwasher
  5. CLVV8622INVX
  6. User manual

CORBERO CLVV8622INVX User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Dishwasher / User Manual
CLVV8622INVX / CLVV8622INVW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLVV8622INVX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CORBERO CLVV8622INVX

Summary of Contents for CORBERO CLVV8622INVX

  • Page 1 Dishwasher / User Manual CLVV8622INVX / CLVV8622INVW...
  • Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings .....................5 1.3 During Usage........................6 2 INSTALLATION ....................9 2.1 Machine Positioning .......................9 2.2 Water Connection ......................9 2.3 Water Inlet Hose ......................9 2.4 Drain Hose (Model Depending) ..................10 2.5 Electrical Connection ....................10 2.6 Fitting The Machine Undercounter ................11 3 TECHNICAL SPECIFICATIONS ..............

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 5: Installation Warnings

    There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine.

  • Page 6: During Usage

    Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa.
  • Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
  • Page 8 Pull the plug to disconnect the machine from the mains, never pull on the cord. EN - 8...

  • Page 9: Installation

    2 INSTALLATION 2.3 Water Inlet Hose 2.1 Machine Positioning When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C. Read all warnings located on the packaging before removing the packaging and positioning the machine.

  • Page 10: Drain Hose (Model Depending)

    2.4 Drain Hose (Model Depending) 2.5 Electrical Connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the...

  • Page 11: Fitting The Machine Undercounter

    2.6 Fitting The Machine Undercounter If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

  • Page 12: Technical Specifications

    3 TECHNICAL SPECIFICATIONS 3.2 Technical Specifications Capacity 15 place settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 48,5 kg Operating voltage / 220-240V 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: 1 Water supply (Mpa) Minimum: pressure 0.03 (Mpa) 3.1 General Sppearance...
  • Page 13 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...

  • Page 14: Before Using The Appliance

    4 BEFORE USING THE 4.3 Fill The Salt (IF AVAILABLE) APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1 Preparing Your Dishwasher For First clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing.

  • Page 15: Test Strip

    4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 16: Detergent Usage

    4.8 Detergent Usage the detergent but also rinse-aid, salt replacement substances and additional Only use detergents specifically designed components depending on the combination. for domestic dishwashers. Keep your We recommend you do not use combined detergents in cool, dry places out of reach detergents in short programmes.
  • Page 17 • Switch off the machine to save the setting. • The factory setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level. Level Brightener Dose Indicator Rinse-aid not r1 is shown on the...

  • Page 18: Loading Your Dishwasher

    5 LOADING YOUR DISHWASHER For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc.
  • Page 19 Four Folding Racks (15 pc) Height Adjustment The folding racks allow easier placement of The upper basket includes a mechanism larger items, such as pots and pans. Each which enables the height of the basket to be adjusted up (1) or down (2) without section can be folded separately.
  • Page 20 Height Adjustable Rack (peg type) Upper Cutlery Basket The foldable racks in the upper basket The upper cutlery basket is designed for enable the placement of large items such the placement of large and small cutlery as pots and pans. Each section can be folded separately.

  • Page 21: Alternative Basket Loads

    5.2 Alternative Basket Loads Lower Basket Top Basket Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer’s recommendations for a good performans result. EN - 21...
  • Page 22 EN - 22...
  • Page 23 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only. • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 24: Programme Table

    7 THE CONTROL PANEL 3. Delay Button You can delay the start time of the programme for 1-2...24 hours by pressing the delay button (3) before the programme starts. The delay indicator (3.1) will be on. If you want to change the delay time,first press the Start/Pause button and then the delay button to select a new delay time.

  • Page 25: Changing A Programme

    10. Tablet Indicator 15 to 100 minutes. * Wash Select the Tablet Detergent function when using a combined detergent that contains * Rinse salt, rinse aid or other extras. The Tablet * Dry Detergent Indicator will remain on for as * End long as it is selected.

  • Page 26: Cancelling A Programme

    7.2 Cancelling a Programme Buzzer Sound Control (Model Depending) If you would like to cancel a programme To change the buzzer sound level, follow when it is running. the below steps: 1. Open the door and press Option (6) and Select (7) buttons at the same time for 3 seconds.
  • Page 27 Natural Ion Tech (Model Depending) This function provides extra hygiene to the machine thanks to Ion Technology. It opera- tes as an independent program. This func- tion is activated by pressing Options button (6) for 3 seconds in ready state. At the end of 3 seconds, “Ion”...

  • Page 28: Cleaning And Maintenance

    8 CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out Cleaning your dishwasher is important to of the micro filter (2).Then pull and remove maintain the machine’s service life the metal filter (3).Rinse the filter with lots of Make sure that the water softening setting...

  • Page 29: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on p ieces of broken glass or pointed implements.

  • Page 30: Troubleshooting

    9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 31 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 32 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.

  • Page 33: Certificado De Garantía

    Sevicio Técnico O cial: Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ info@corbero.es web_ www.corbero.es Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...

  • Page 34: Certificate Of Guarantee

    Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021” 911 08 08 08 Official Technical Service: Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ info@corbero.es web_ www.corbero.es Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
  • Page 35 Servicruz SL Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona Telf. 911 08 08 08 servicruz.sat@servicruz.es El periodo minimo en el que se deben suministrar las piezas de recambio para la lavadora de uso doméstico es de 10 años.
