EN Dishwasher / User Manual
CLVV321W / CLVV321X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLVV321X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CORBERO CLVV321X

Summary of Contents for CORBERO CLVV321X

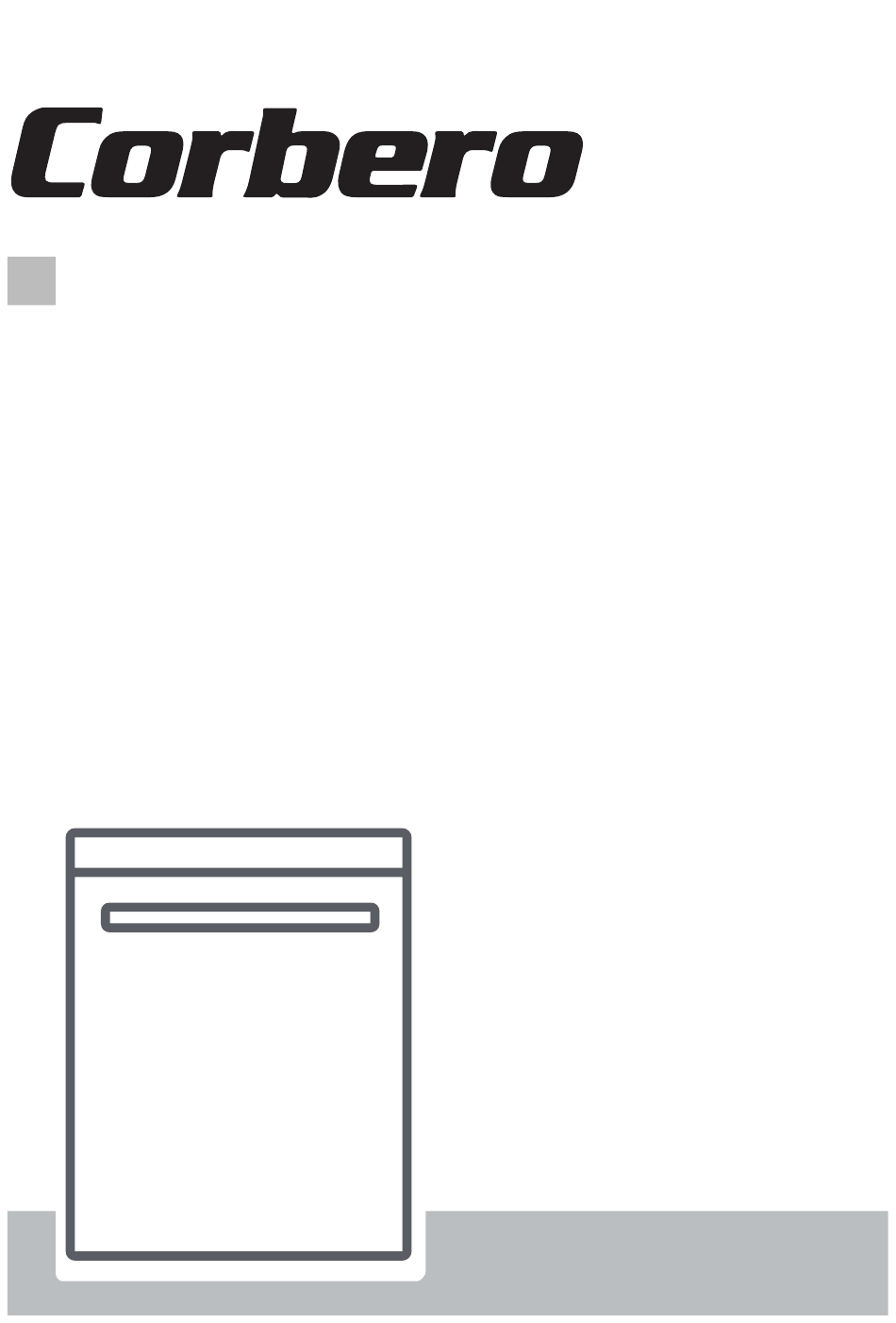

  • Page 1 EN Dishwasher / User Manual CLVV321W / CLVV321X...

  • Page 2: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6.
  • Page 3 8.CLEANING AND MAINTENANCE ................. 21 8.1. Filters ...........................21 8.2. Spray Arms ........................21 8.3. Drain Pump ........................22 9.TROUBLESHOOTING ....................23...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 5: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 6: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 7 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 8 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 9: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 10: Electrical Connection

    2.5 Electrical connection 2.6. Fitting the machine undercounter If you wish to fit your machine undercounter, there must be sufficient space to do so and WARNING: Your machine is set to the wiring-plumbing must be suitable to do operate at 220-240 V. If the mains voltage so (1).
  • Page 11 Products Product’s Height (±2 mm) 820 mm 825 mm 835 mm A: If there is no felt on the top of the product; you should take into account this product’s height. B1: If there is felt on the top of the product with 2nd basket;...

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 10 place Capacity settings Dimensions (mm) Height 850(mm) Width 450(mm) Depth 598(mm) Net weight 38,800 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Upper basket with racks Total power 2.

  • Page 13: Before Using The Appliance

    4. BEFORE USING THE APPLIANCE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •...

  • Page 14: Test Strip

    4.4. Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    Do not fill detergent into the detergent setting set too low, whitish stains remains compartment more than required; otherwise on dishes and dishes do not dry and you can see whitish streaks or bluish layers washed clean. If rinse aid dosage setting on glass and dishes and may cause glass set too height, you can see bluish layers on corrosion.

  • Page 16: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 17 Upper Basket Top basket Height adjustment Dish rack Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in Upper basket racks have two positions: the image below), then pull out and remove open (a) and closed (b).

  • Page 18: Alternative Basket Loads

    5.2. Alternative Basket Incorrect Loads Loads Lower Basket Top Basket Important Note for Test Laboratories For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: dishwasher@standardtest.info Incorrect Loads...
  • Page 19 EN - 15...
  • Page 20 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
  • Page 21 Programme Selection and Operating the Machine 1. Remaining Time Indicator city and water (see programme listing p 25) Remaining Time Indicator shows the du- Note: If you have used any extra func- ration of the programmes and the rema- tion (such as the delay or half load) in ining time during the programme flow.

  • Page 22: The Control Panel

    tor light on the display to have an idea whether the softening salt in your machi- ne is enough. When salt missing warning indicator is lit, fill the salt compartment. 7. Rinse Aid Missing Warning Indica- Check the rinse aid missing warning in- dicator light on the display to have an idea whether the amount of the rinse aid in your machine is enough.

  • Page 23: Changing A Programme

    Operating the Machine When the programme is started the light on the Start/Pause goes off and Washing light is lit. 1.By rotating the programme selection button, energise the machine and select the suitable After rotating the programme programme. selection button and energising 2.Start the programme by the machine, the light on pressing the Start/Pause key.

  • Page 24: Cancelling A Programme

    Cancelling the Programme If you would like cancel a programme while a washing programme is running on: Press and hold the Start/ Pause key for 3 seconds. After 3 seconds, programme cancellation step starts and the water inside the machine is discharged for 30 seconds.

  • Page 25: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 26: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 27: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of the Insufficient water hose.
  • Page 30 CERTIFICADO DE GARANTÍA Imprescindible la presentación de la factura de compra acompañada del presente certi cado de garantía. Riesgos cubiertos. Este aparato está garantizado contra cualquier defecto de funcionamiento, siempre que se destine a uso doméstico, procediéndose a su reparación dentro del plazo de garantía y sólo por la red de SAT autorizados. Excepciones de garantía.
  • Page 31 52253525 R35...
