INITIAL OPERATION
INSTRUCTIONS FOR USE
Technical changes reserved. You will find the newest instructions for use and more information
about this product here:
https://www.nubert.net/...
Many thanks for your confidence in our product. To obtain fast information briefly, please read
the quick start guide first.
The following instruction guide elucidates all functions, operating and connections explicitly, so
that you could enjoy your new loudspeaker in its entirety.
1 Coldness, Sound and Dependability
When loudspeakers and other electric devices are brought from a cold
into a warm room, it is possible that there will arise water condensation
inside. In consequence of that, there exists danger of any defects or an
electric shock. Furthermore, deep temperatures will have an impact on
the flexibility of movable parts inside of the loudspeaker.
Therefore, wait at least 4 hours before turning on the device until it has
taken room temperature. Your new Nubert loudspeaker will thank you
with the superior sound quality you're expecting from Nubert rightly.
2 Preferred Position
There are passive membranes on both sides, on the front and on the
back side. They undergird especially the bass tone significantly. For
smoothly operation and preventing flow noises, we recommend a space
to the next wall of approximately 5 centimetres (2 inches) at minimum.
Well-spaced distance to walls or other obstacles makes sure that the
sound will not be superelevated or muffled.
Accordingly, the best sound impression will be achieved central.
Nevertheless, the nuGo! ONE has a very homogeny sound in a horizon-
tally radiation angle up to 40 degrees.

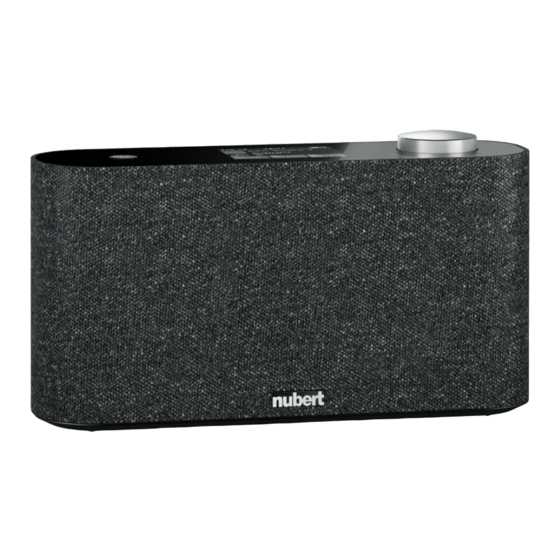

nuGo! ONE Bluetooth Speaker
.
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the nuGo! ONE and is the answer not in the manual?

Questions and answers

Summary of Contents for Nubert nuGo! ONE

  • Page 1 Well-spaced distance to walls or other obstacles makes sure that the sound will not be superelevated or muffled. Accordingly, the best sound impression will be achieved central. Nevertheless, the nuGo! ONE has a very homogeny sound in a horizon- tally radiation angle up to 40 degrees.
  • Page 2 3 Antenna On the back side, the nuGo! ONE is equipped with a telescopic antenna. In many situations it will be sufficient to extend the antenna a bit like shown in the picture. Best radio reception will be achieved with full extended antenna and a vertically alignment.
  • Page 3: Menu Navigation

    ⚠ Notice: ▪ The forced shutdown works in battery mode only. It will not work when the nuGo! ONE is connected to the main voltage by the power supply unit. Volume When the operating display works permanently, the loudness can be set by the rotary control knob.
  • Page 4: Bluetooth Input

    7 Analog Input (AUX) By selecting Analog Input in the main menu, the nuGo! ONE will play the Audio signal coming from the 3,5 mm phono jack on the back side. 8 Bluetooth Input Select bluetooth in the main menu to activate Bluetooth input.
  • Page 5 Possibly the nuGo! ONE reacts sluggishly then. To afford this problem, we recom- mend starting a new station scan when the nuGo! ONE will be placed at a new location.
  • Page 6: Alarm Clock

    spaces P1 to P6. If there are all six memory locations in use, you could choose which memory location you want to overwrite. Recall favourites Press the rotary control twice shortly seconds to switch into menu while the operating display works permanently. The display switches into the favourite list.
  • Page 7 ▪ With Alarm Vol. there can be set the volume of the wake-up tone. ▪ Snooze alarm: When buzzer is selected as source for the wake-up tone, you can activate a snooze alarm. When snooze alarm is activated, the wake-up tone will be repeated 10 minutes after first deactivation. Sound In this section you can set the following defaults: Mid-Hi...
  • Page 8 Bluetooth chip, and the installed firmware version. 12 Construction and technology Splash water protection The nuGo! ONE is certificated by the standard IPX5. This means, this device is protected by splash- and hose water, but not waterproof for diving under. ⚠...
  • Page 9 Recharge the battery immediately when there is shown a low battery charge level in the display. If you would like to keep the nuGo! ONE in store for a longer time, we recommend charging the battery first.
