Technical Data / Instruction Manual
AD-04/12BIT
Article no. 80027300

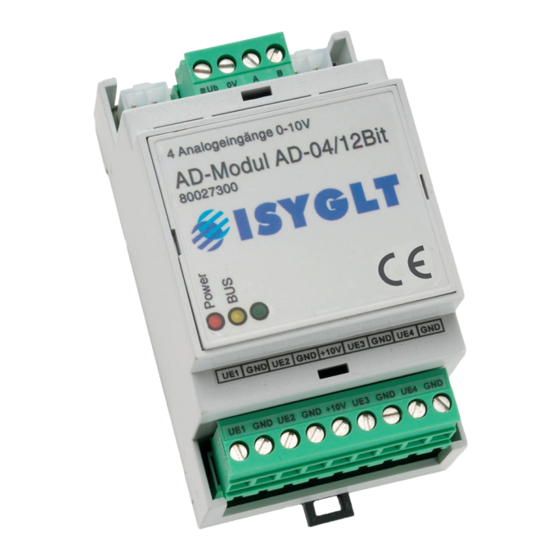

Analog module with 4 analog inputs 0-10V / 12 bits
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-04/12BIT and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT AD-04/12BIT

Summary of Contents for ISYGLT AD-04/12BIT

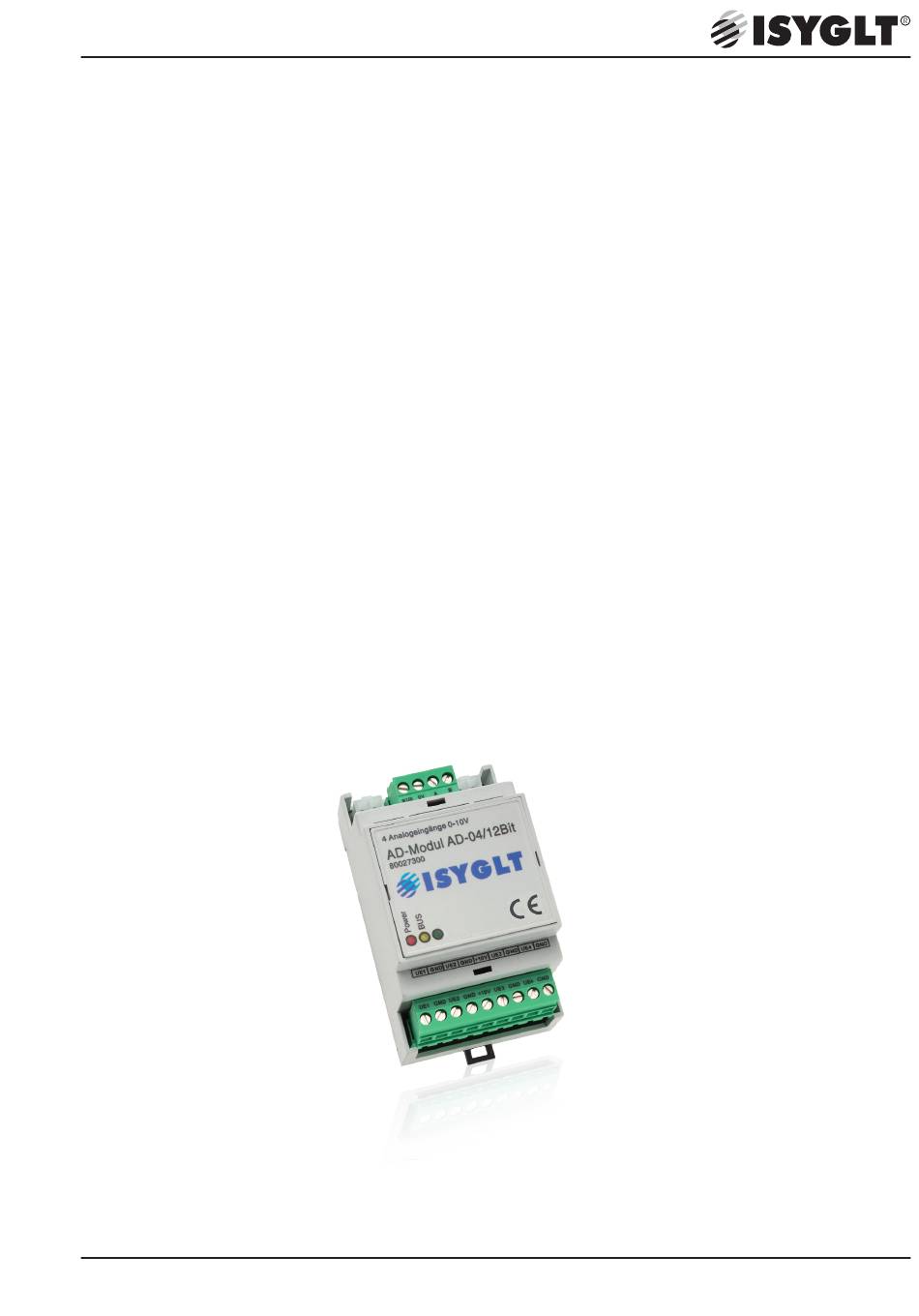

  • Page 1 Technical Data / Instruction Manual AD-04/12BIT Article no. 80027300 Analog module with 4 analog inputs 0-10V / 12 bits Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
  • Page 2 These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.
  • Page 3 Protect module from humidity • and configuration of the ISYGLT module may only be carried out by trained staff. In addition to these safety instructions, you must also observe the special safety instructions listed in the individual chapters for Observe the electrical installation regulations of the country in which the individual acts.
  • Page 4 These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.
  • Page 5 9. Product description The analog module is used to read 4 separate analog values 0-10V into the subnet. The resolution of each channel is 12 bits. The individual analog channels are available in the master module for further linking depending on the application purpose. Inputs / Outputs •...
  • Page 6 10. Technical data Type designation AD-04/12BIT Article no. 80027300 Operating voltage 12V-35V DC or 12V-27V AC Current consumption max. 100mA at 35V, max. 140mA at 24V, max. 180mA at 12V Input voltage 4 analog channels 12 bits resolution 0-10V (at 47kOhm) Reference voltage output 1 output +10V, output current max.
  • Page 7 View 11. Wiring diagram +24V BUS-A BUS-B Address 2 3 4 ISYGLT-AD-04/12BIT Art.-Nr.: 80027300 4 Analog inputs 0-10V 10kOhm External device Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de...
