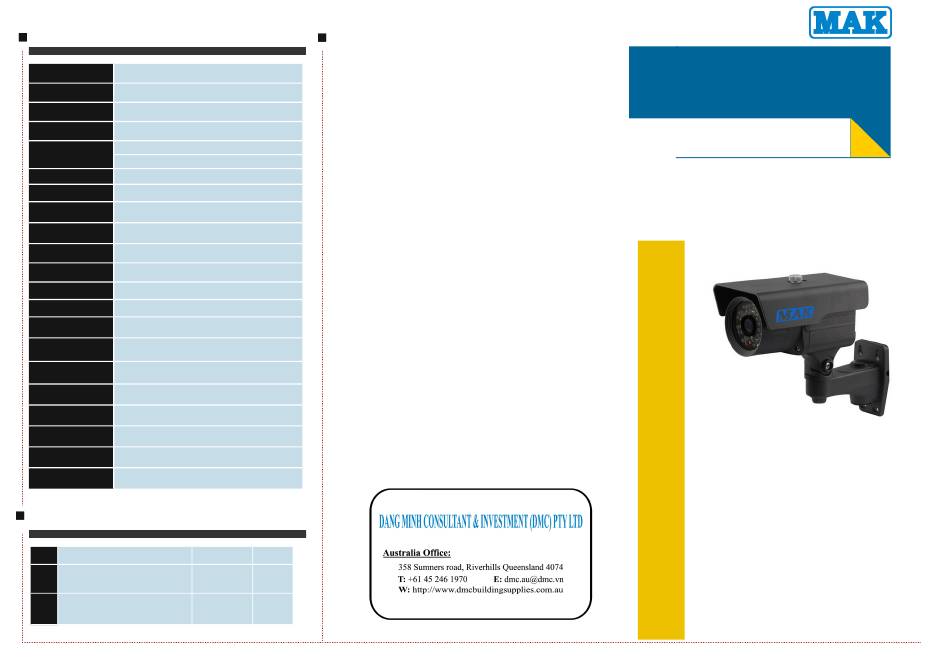

MAK LIE90XSHE Quick Start Manual

Specification
LIE90XSHE
Model
Pick up Element 1/3" SONY Super HAD CCD
Effective Picture Elements
NTSC:976(H)×494(V) PAL:976(H)x582(V)
(H×V)
700 TV Line
Horizontal Resolution
0.001 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
More than 52dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
60 Meters (with ￠5X72PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/1000mA
Power/Current
2.8-12mm Auto Zoom Lens (controlled by RS485)
Lens
315(W)x125(H)x120(D)
Dimension (mm)
2000
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Color Camera LIE90XSHE
2.
LIE90XSHE
User Guide
II
Franchiser：
Model Number
1
1
LIE90XSHE Color Camera
Weatherproof IR Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
