Specification
LIU40HM
Model
1/3"CMOS
Pick up Element
700TV Line
Horizontal Resolution
0.001Lux /F1.2
Minimum Illumination
More than 46dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
40 Meters (with ￠5X42PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V (+/-10%)/500mA
Power/Current
2.8-12mm Manual Zoom Lens
Lens
242(W) x84(H) x86(D)
Dimension (mm)
1600
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Color Camera
LIU40HM
2.
User Guide
LIU40HM
Franchiser：
Model
Number
1
1
LIU40HM Color Camera

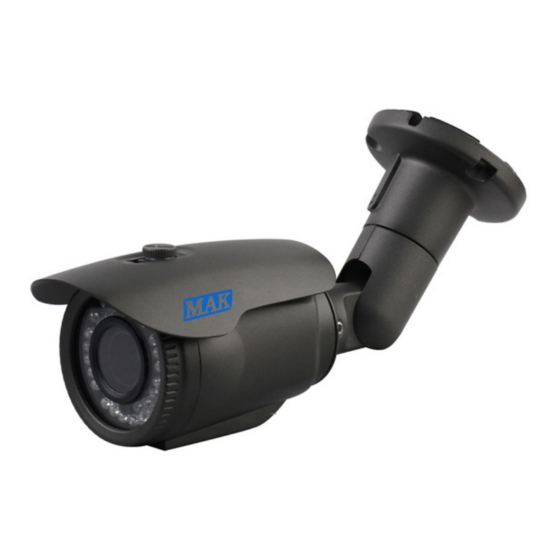

Weatherproof IR Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
