Specification
LVDF452FM
Model
1/3"CMOS
Pick up Element
Effective Picture Elements
720(H)X576(V)
(H×V)
800TV Line
Horizontal Resolution
0.01Lux/F1.2
Minimum lllumination
More than 50dB
S/N Ratio
2:1 interlace
Scanning System
Internal, Negative sync.
Synchronous System
NTSC:1/60s~1/100,000s,PAL:1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
25 Meters (with ￠5X30 Unit Infrared LED)
IR Distance
Under 10 Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp,75 Ω
Video Output
Auto
Auto Gain Control
12VDC(+/-10%)/ 400mA
Power/Current
2.8-12 Manual Zoom Lens
Lens
Dimension (mm)
￠140 x 110(H)
1200
Weight (g)
Storage Temperature
-30~ +60℃ RH95% MAX
-10~ +50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
Model
1.
Vandalproof IR Dome Color Camera
LVDF45FM
2.
User Guide
LVDF45FM
Franchiser：
Number
1
1
LVDF45FM Color Camera

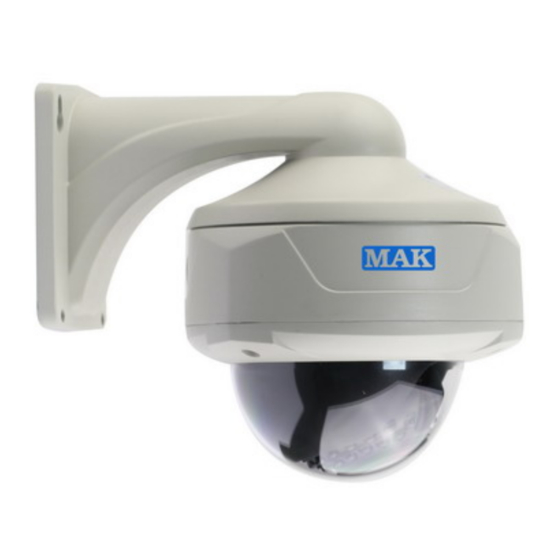

Vandalproof IR Dome Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
