Specification
LIG24HM
Model
1/3"CMOS
Pick up Element
700TV Line
Horizontal Resolution
0.001Lux /F1.2
Minimum Illumination
More than 46dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
20 Meters (with ￠5X24PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V (+/-10%)/350mA
Power/Current
Board Lens 3.6mm/F2.0
Lens
208(W) x 66(H) x 65(D)
Dimension (mm)
500
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.

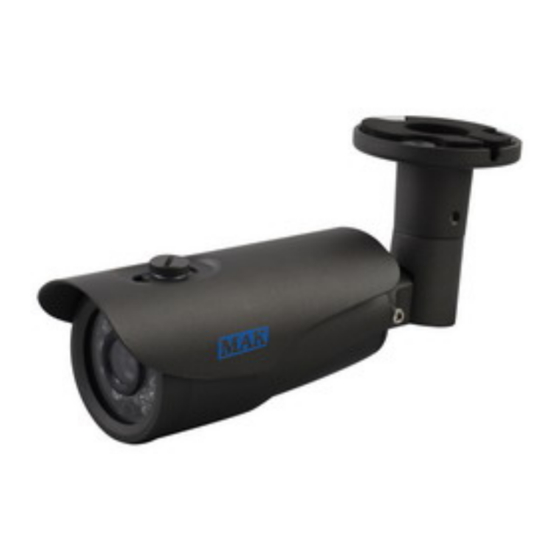

Weatherproof IR Color Camera
LIG24HM
2.
User Guide
LIG24HM
Franchiser：
Model
Number
1
1
LIG24HM Color Camera
Weatherproof IR Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
