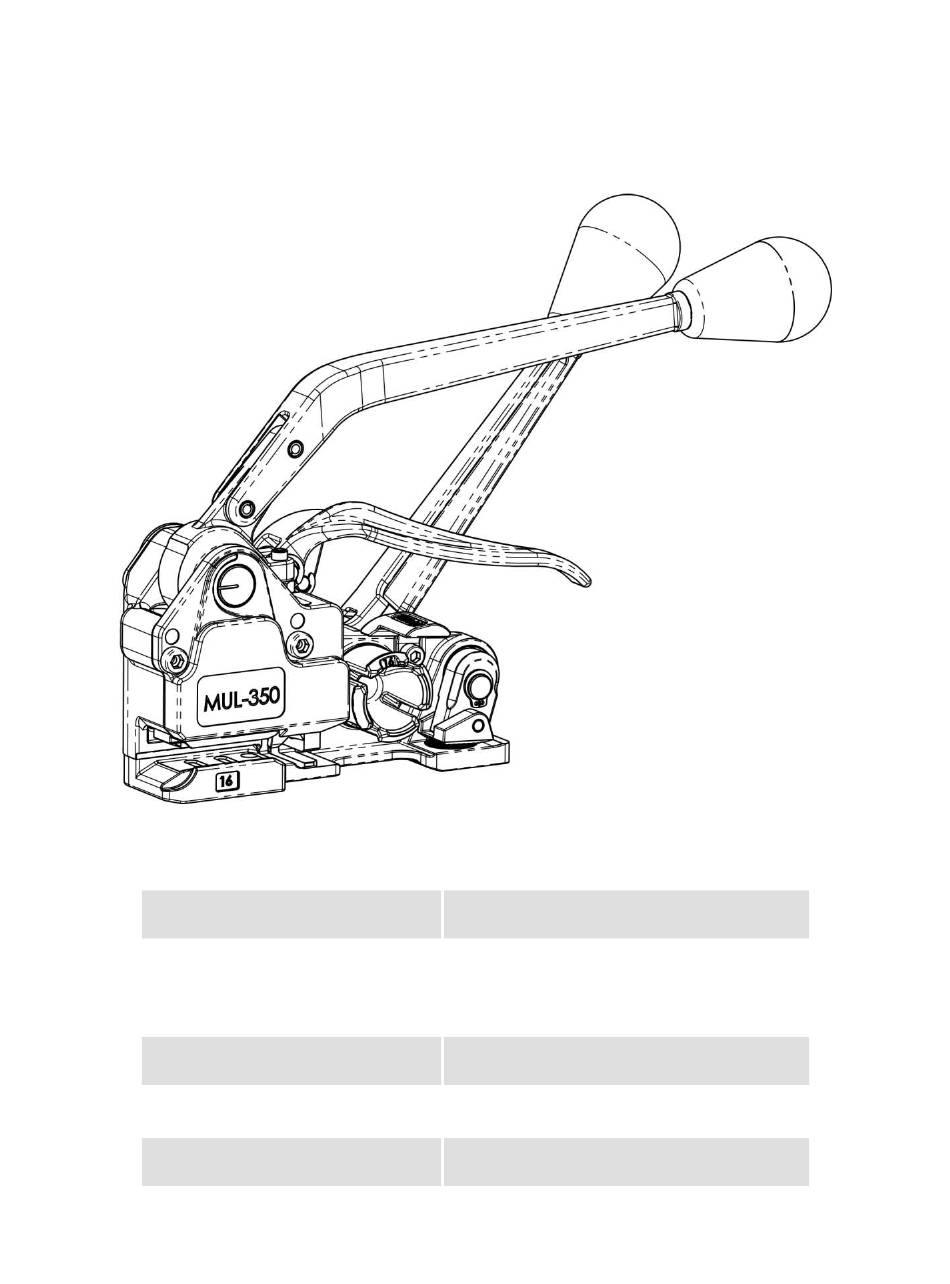

- Page 1 MUL-350/MUL-351 Combination Tool for POLYESTER Operation Manual Strap Type Polyester (PET) MUL-350 5/8" (16 mm), Strap Width MUL-351 1/2" (13 mm Strap Thickness Up to 0.040" (1 mm) Joint Type Seal Weight 8.3 lbs (3.8 kg) Footprint L: 5.75"; W: 2.85"...
- Page 2 Fig. 1 – Starting position use ope serrated seals for /8” strap a d for 1. Load a seal as shown on Fig. 2. For MUL- use ope serrated seals for / ” (12mm) strap. MUL- Fig. 2 2. Pull up on Handle 02 to raise Gripper Foot 50. Load bottom strap 101 inside the seal 102, under Windlass 39 and under Gripper Foot 50 as shown on Fig.
- Page 3 3. Release Handle 02 and load upper strap 100 inside the seal 102, through the cutter and through Windlass 39 as shown on Fig. 4. Fig. 4 4. Apply tension by ratcheting Tension Handle 11 as shown on Fig. 5. Fig.
- Page 4 5. Once satisfactory tension is achieved return Tension Handle 11 back and push Sealing Handle 19 forward (as shown on Fig. 6) to close the seal. Fig. 6 6. Return Sealing Handle 19 back and pull up Handle 02 to cut the strap. The operation cycle is now complete.
