Teknika MUL-420 Operation Manual

Tensioner for steel

Table of Contents

Download this manual

MUL-420 Tensioner for STEEL

Strap Type

Strap Thickness Up to 0.044" (1.1 mm)

Operation Manual

Regular Duty/High Tensile Steel

3/4" (19 mm) to 1 1/4" (32 mm)

Seal

6.5 lbs (3 kg)

L: 3.5"; W: 3.5"

16.5"

Table of Contents

Do you have a question about the MUL-420 and is the answer not in the manual?

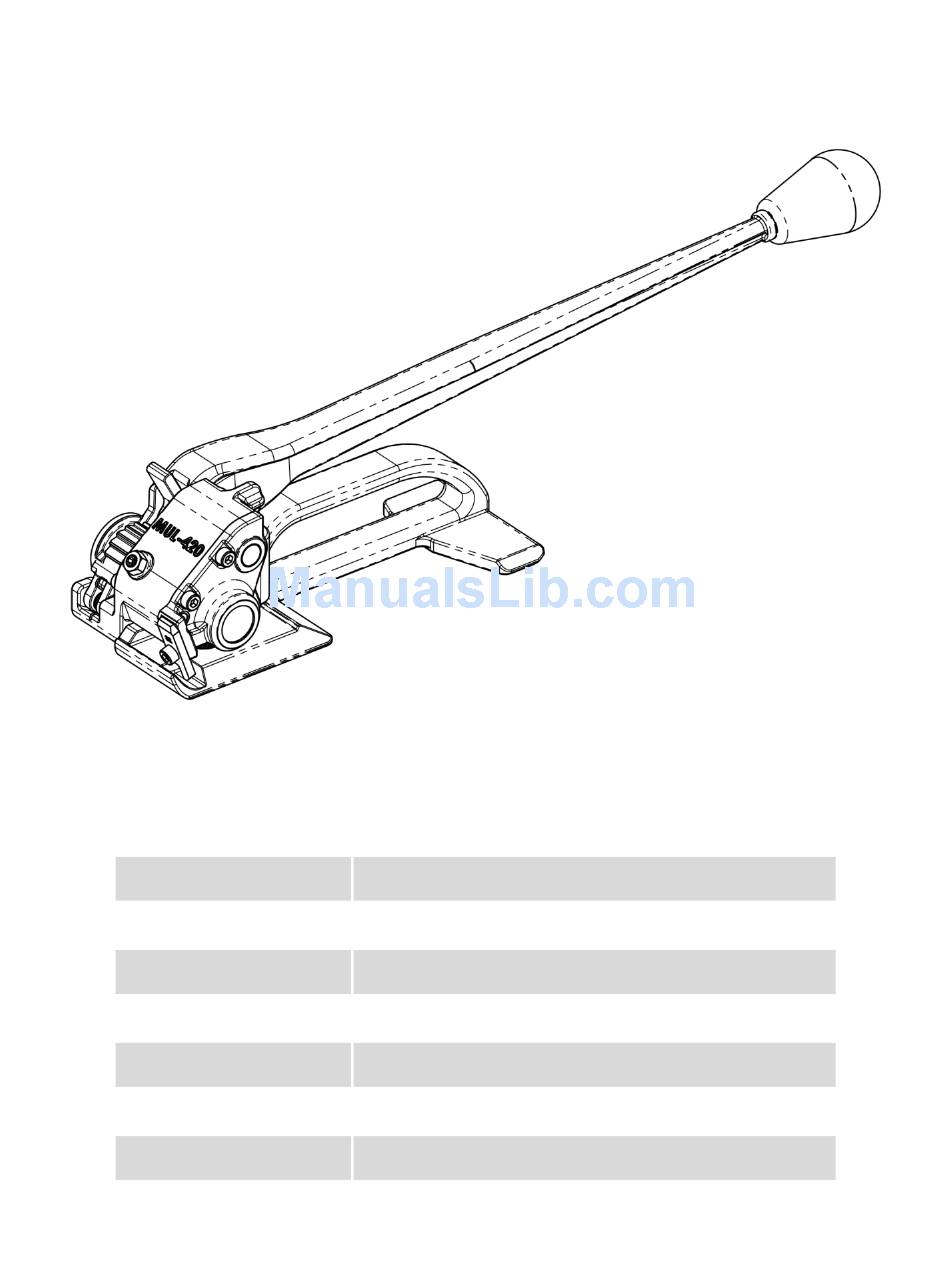

Page 1 MUL-420 Tensioner for STEEL Operation Manual Strap Type Regular Duty/High Tensile Steel Strap Width 3/4" (19 mm) to 1 1/4" (32 mm) Strap Thickness Up to 0.044" (1.1 mm) Joint Type Seal Weight 6.5 lbs (3 kg) Footprint L: 3.5"; W: 3.5"...
Page 2 Fig. 1 – Starting Position 1. Based on type of the Seal 102 used (open or closed), place the seal on the strap accordingly. Press down on Tension Handle 08 to raise Frame 06. Load both straps 100 and 101 under Feed Wheel 17 and release the Tension Handle 08 as shown on Fig.
Page 3 2. Apply tension by ratcheting Tension Handle 08 as shown on Fig. 3. Fig. 3 3. Once satisfactory tension is achieved return Tension Handle 08 back by pressing on Tension Pawl 09. Use appropriate sealer to close the Seal 102. With the Seal 102 securely in place press the Tension Handle 08 to remove the tensioner by sliding the backfoot out to the side folowed by the front as shown on Fig.
