7inch HDMI LCD (B) User Manual

Description

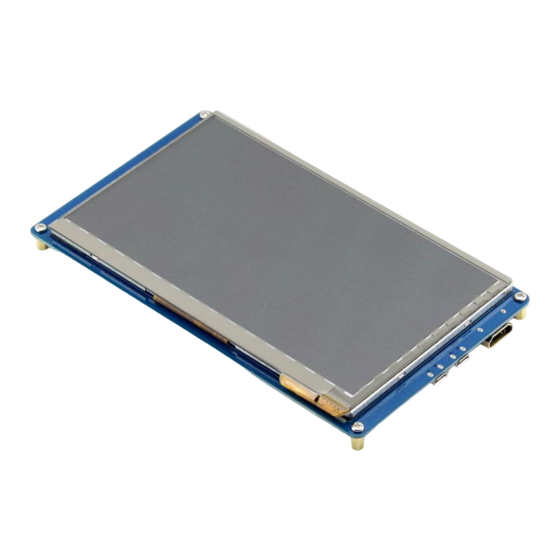

7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems.

Features

800×480 high resolution, touch control
Supports Raspberry Pi, and driver is provided (works with custom Raspbian directly)
Supports BB Black, comes with related images like : Angstrom, Android4.2.2
Supports Banana Pi / Banana Pro, comes with related images like : Lubuntu, Raspbian
Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
(touch function is unavailable in this case)
HDMI interface for displaying, USB interface for touch control
th
Rev 1.1, Date: May 20
2015
7inch HDMI LCD (B)
User Manual
share awesome hardware
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7inch HDMI LCD (B) and is the answer not in the manual?

Questions and answers

Related Manuals for Waveshare 7inch HDMI LCD (B)

Summary of Contents for Waveshare 7inch HDMI LCD (B)

  • Page 1 share awesome hardware 7inch HDMI LCD (B) User Manual 7inch HDMI LCD (B) User Manual Description 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. Features  800×480 high resolution, touch control  Supports Raspberry Pi, and driver is provided (works with custom Raspbian directly) ...
  • Page 2 share awesome hardware 7inch HDMI LCD (B) User Manual Contents Description..............................1 Features ..............................1 On-Board resource ..........................3 Working with Raspberry Pi ........................ 3 2.1. How to program Raspbian image file..................3 2.2. Hardware connection ......................4 2.3. Virtual keyboard of Raspberry Pi ..................4 2.4.
  • Page 3 share awesome hardware 7inch HDMI LCD (B) User Manual On-Board re source Figure 1: Switches and interfaces USB Power Interface: USB power interface (used only when the LCD is under power shortage). USB Touch Interface: USB touch/power interface. HDMI: it is used for connecting the main board to the LCD screen. Working with Raspberry Pi 2.1.
  • Page 4 share awesome hardware 7inch HDMI LCD (B) User Manual 2.2. Hardwar e connection Connect the LCD to the HDMI on the Raspberry Pi board with a HDMI cable; Connect the USB Touch interface on the LCD to the USB interface on the Raspberry Pi board with a USB type-A male to micro-B cable.
  • Page 5 share awesome hardware 7inch HDMI LCD (B) User Manual Run the script USB_TOUCH_CAP_7.0_RASPBIAN located at the folder RPI2B_B_B+_USB_TOUCH_CAP_7.0_RASPBIAN by the following command: cd RPI2B_B_B+_USB_TOUCH_CAP_7.0_RASPBIAN sudo ./ USB_TOUCH_CAP_7.0_RASPBIAN When finished, the system will reboot automatically. And the LCD module can work properly, including display and touch functions, after the system rebooted.
  • Page 6 share awesome hardware 7inch HDMI LCD (B) User Manual How to use with BeagleBones 3.1. How to program Angstrom image file If this LCD module is used for display only, you can program the latest Angstrom image file to the board directly without any change.
  • Page 7 share awesome hardware 7inch HDMI LCD (B) User Manual How to use with Banana Pi Before powering up the Banana Pi, you should connect it to a LCD displayer properly, since the Banana Pi may read the resolution parameters of the LCD displayer on startup. And the connection should be remained till the Banana Pi enters the desktop.
