3.5inch HDMI LCD
From Waveshare Wiki
Contents

1 Introduction

2 Getting Started

Introduction
480x320, 3.5inch Resistive Touch Screen LCD, HDMI
interface, IPS Screen, Designed for Raspberry Pi
More (http://www.waveshare.com/3.5inch-hdmi-
lcd.htm)
Getting Started

Hardware Connection

1. Plug the LCD to your Raspberry Pi:
There are 40 pins on Raspberry Pi Model A+/B+/2 B/3 B but only 26 pins on the LCD, so
you should pay attention to connecting the pins to your Pi accordingly.
2. Connect the HDMI Connector to both the HDMI interfaces on the LCD and the Pi.
You should connect the LCD to Raspberry Pi Model B or Raspberry Pi Zero with an HDMI
cable rather than an HDMI Connector.
3. Turn on the "backlight" switch on the back of the LCD.
You can enable the touch in two ways: Method 1. install driver to your Raspbian/Ubuntu Mate OS.
Method 2. use the Ready-to-use image file of which LCD driver was pre-installed.
3.5inch HDMI LCD

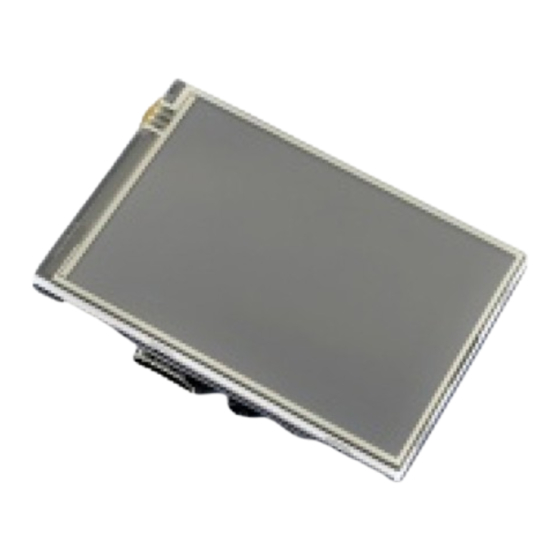

3.5inch HDMI LCD, 480x320, IPS
480x320, 3.5inch Resistive Touch Screen LCD,
HDMI interface, IPS Screen, Designed for
Raspberry Pi
Primary Attribute
Category: OLEDs / LCDs, LCD, Raspberry
Pi LCD
Brand: Waveshare
Website
English: Website
(http://www.waveshare.com/3.5inch-hdmi-
lcd.htm)
Chinese: 官网
(http://www.waveshare.net/shop/3.5inch-
hdmi-lcd.htm)
Onboard Interfaces
RPi I/Os
HDMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSH-12824 and is the answer not in the manual?

Questions and answers

Related Manuals for Waveshare WSH-12824

Summary of Contents for Waveshare WSH-12824

  • Page 1: Getting Started

    3.5inch HDMI LCD From Waveshare Wiki Contents 3.5inch HDMI LCD 3.5inch HDMI LCD, 480x320, IPS 1 Introduction 2 Getting Started 2.1 Hardware Connection 2.2 Method 1. Driver installation 2.3 Method 2. Using Ready-to-use image 3 Audio out from HDMI 4 Custom resolution...

  • Page 2: Hardware Connection

    Hardware connection (http://www.waveshare.com/w/upload/0/00/LCD-show-170703.tar.gz) 1) Download the Raspbian / Ubuntu Mate image from Raspberry Pi website (https://www.raspberrypi.org/downloads/) and extract it on a PC. 2) Connect your micro SD card to the PC and write the image to the card using Win32DiskImager.

  • Page 3: Audio Out From Hdmi

    Audio out from HDMI There is a 3.5mm jack on the LCD, which is used to play HDMI audio. Steps to use this jack: sudo nano /boot/config.txt # edit the configuration file Modify this line: hdmi_drive=1 hdmi_drive=2 Exit with save: Hit ctrl + x --> Y reboot # system reboot apt-get install mplayer...

  • Page 4: Touch Screen Calibration

    ./LCD35-HDMI-480x320-show 0 ./LCD35-HDMI-800x480-show 0 90 degree rotation cd LCD-show/ # Choose one of the two to execute ./LCD35-HDMI-480x320-show 90 ./LCD35-HDMI-800x480-show 90 180 degree rotation cd LCD-show/ # Choose one of the two to execute ./LCD35-HDMI-480x320-show 180 ./LCD35-HDMI-800x480-show 180 270 degree rotation cd LCD-show/ # Choose one of the two to execute ./LCD35-HDMI-480x320-show 270...

  • Page 5: Resource

    If the touch screen doesn't work properly, please install the driver: LCD-show-170703.tar.gz, but not LCD-show-161112.tar.gz. LCD-show-170703.tar.gz (network connection is required while installing) (http://www.waveshare.com/w/upload/0/00/LCD-show-170703.tar.gz) LCD-show-161112.tar.gz (http://www.waveshare.com/w/upload/4/4b/LCD-show-161112.tar.gz) Image RPi-3.5inch-HDMI-LCD-Raspbian_480x320-170510.img.7z (https://drive.google.com/open? id=0BwbgcecjOmBqdk5qOVJCMlJKcVk) RPi-3.5inch-HDMI-LCD-Raspbian_800x480-170510.img.7z (https://drive.google.com/open? id=0BwbgcecjOmBqZWloaG4yaVQzRms) Demo video Demo video (https://youtu.be/IfNH5s7vLbI) Software Panasonic SDFormatter (http://www.waveshare.com/w/upload/d/d7/Panasonic_SDFormatter.zip) Win32DiskImager (http://www.waveshare.com/w/upload/7/76/Win32DiskImager.zip) PuTTY (http://www.waveshare.com/w/upload/5/56/Putty.zip) General Tutorial Series Raspberry Pi Tutorial Series...

  • Page 6: Support

    When working with 5V input, the current is about 200mA with back light on and 30mA with back light off. Support Contact your seller (fast response and most recommended) or send emails to service@waveshare.com (not fast enough but please be patient) for help. Our working time: 09:00-18:00 (UTC+8 Monday to Saturday) Retrieved from "https://www.waveshare.com/w/index.php?title=3.5inch_HDMI_LCD&oldid=13637"...
