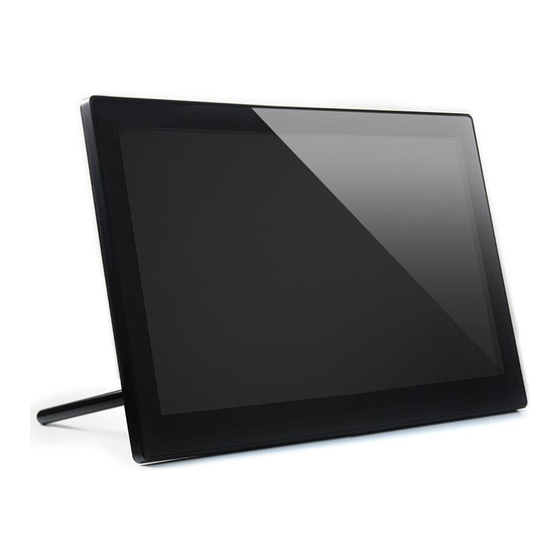

Waveshare 13.3 inch HDMI LCD (H) User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
13.3inch HDMI LCD (H)
User Manual

Advertisement

loading

Related Manuals for Waveshare 13.3 inch HDMI LCD (H)

Summary of Contents for Waveshare 13.3 inch HDMI LCD (H)

  • Page 1 13.3inch HDMI LCD (H) User Manual...

  • Page 2: Table Of Contents

    13.3inch HDMI LCD (H) CONTENT Introduction ..............................3 Features ..............................3 How to use ..............................4 Working with PC ..........................4 Tablet PC Settings ........................4 Working with Raspberry Pi ......................9 Rotation ............................. 10 Buttons ................................ 12...

  • Page 3: Introduction

    13.3inch HDMI LCD (H) INTRODUCTION 13.3inch, IPS, 1920x1080, Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi Systems FEATURES 13.3inch IPS screen,1920x1080 high resolution ⚫ Toughened glass capacitive touch panel, 6H hardness ⚫ Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general ⚫...

  • Page 4: How To Use

    13.3inch HDMI LCD (H) HOW TO USE WORKING WITH PC This product supports Windows 10/8.1/8/7 OS. Connect 12/1A power adapter to the DC interface of LCD, after connecting the backlight will light on. Connect the TOUCH interface of LCD to the USB interface on your PC. Waiting for a moment, the touch will be recognized by Windows automatically Connect Display cable - If you use HDMI, you need to connect the HDMI interface of LCD to the HDMI...
  • Page 5 In Windows 10, there is Tablet PC Settings allow you to set touchscreen to control other displays instead of main display. Here we use Waveshare 7inch HDMI LCD (C) as example to show you how to do this setting.
  • Page 6 13.3inch HDMI LCD (H) Click button “Setup…” to begin setting...
  • Page 7 13.3inch HDMI LCD (H) To this step, you can find there is prompt on your first screen with white background color. Press “Enter” on keyboard, this operation work as tell the PC this screen is not the touchscreen I want to control. Then, you can find that the prompt has turn to...
  • Page 8 13.3inch HDMI LCD (H) the second display (the one we want the touch controls) Touch the center of touchscreen, to set this display as touchscreen. If there are only two displays, after touch, the setting will finish, and you can find that touchscreen controls itself now.

  • Page 9: Working With Raspberry Pi

    13.3inch HDMI LCD (H) WORKING WITH RASPBERRY PI Supports Raspbian/Ubuntu mate/Windows 10 iot Core When working with Raspberry Pi, you should set the resolution of the LCD by yourself, or else the LCD screen will not work. 1. Connect 12/1A power adapter to the DC interface of LCD, after connecting the backlight will light on 2.

  • Page 10: Rotation

    13.3inch HDMI LCD (H) ROTATION Display Rotating To rotating the display, you can append this statement to the config file display_rotate=1 #1: 90; 2: 180; 3: 270 Reboot the Raspberry Pi sudo reboot Touch Rotating Note: To rotate the touch, you can re-compile the kernel as well. There is an example for reference (use 7inch HDMI LCD (C).) Re-Compilation Method ⚫...
  • Page 11 13.3inch HDMI LCD (H) sudo nano /etc/X11/xorg.conf.d/40-libinput.conf save and reboot your Pi sudo reboot After completing these steps. The LCD could rotate 90 degree both display and touch. 【Note】 90 degree: Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1" 180 degree: Option "CalibrationMatrix"...

  • Page 12: Buttons

    13.3inch HDMI LCD (H) BUTTONS Open or Close LCD display. If you don't need the LCD for long time, you can use this button to reduce consumption Direction button "OK" function Open menu and "Return"function...
