- Page 1 7inch HDMI LCD (B) 7inch HDMI LCD (B) User Manual...
-
Page 2: Table Of Contents
7inch HDMI LCD (B) CONTENT Overvire ................................ 3 Features ..............................3 How to Use ..............................4 Working with PC ..........................4 Tablet PC Settings ........................4 Workign with Raspberry Pi ......................8 Rotation ............................8... -
Page 3: Overvire

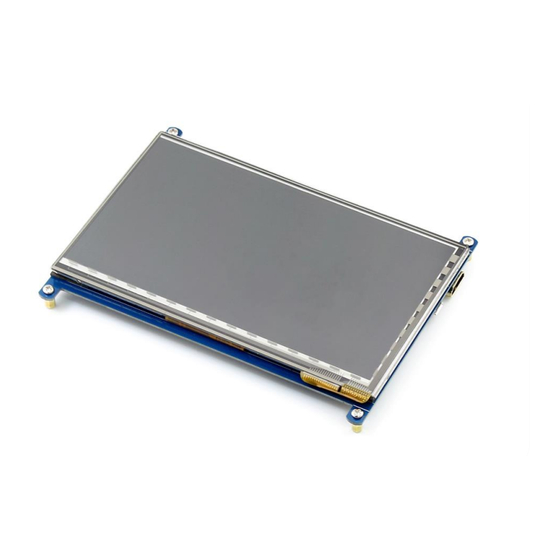

7inch HDMI LCD (B) OVERVIRE 7inch HDMI LCD (B) has 800x480 resolution, capacitive touch control, HDMI display supports various systems. FEATURES 800×480 high resolution ⚫ Capacitive touch control ⚫ Supports popular mini-PCs like Raspberry Pi, BB Black, etc. ⚫ When working with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IoT, single ⚫... -
Page 4: How To Use
In Windows 10, there is Tablet PC Settings allow you to set touchscreen to control other displays instead of main display. Here we use Waveshare 7inch HDMI LCD (C) as example to show you how to do this setting. Connect your touchscreen as Hardware Connection. - Page 5 7inch HDMI LCD (B) Open Control Panel and search Tablet PC Setting, then open this tool. Note that if you didn’t connect touchscreen first, this tool couldn’t be searched. Click button “Setup…” to begin setting...
- Page 6 7inch HDMI LCD (B) To this step, you can find there is prompt on your first screen with white background color. Press “Enter” on keyboard, this operation work as tell the PC this screen is not the touchscreen I want to control. Then, you can find that the prompt has turn to...
- Page 7 7inch HDMI LCD (B) the second display (the one we want the touch controls) Touch the center of touchscreen, to set this display as touchscreen. If there are only two displays, after touch, the setting will finish, and you can find that touchscreen controls itself now.
-
Page 8: Workign With Raspberry Pi
7inch HDMI LCD (B) WORKIGN WITH RASPBERRY PI When working with Raspberry Pi, you should set the resolution of the LCD manually, or else the LCD screen will not work. For more detail information, please read the following section. Turn on the "backlight" switch Connect the LCD to your Pi -HDMI Port of LCD ->... - Page 9 Reboot the Raspberry Pi sudo reboot Touch Rotating Note: To rotate the touch, you can re-compile the kernel as well. There is an example for reference (use 7inch HDMI LCD (C).) Re-Compilation Method ⚫ Another way, you can set the libinput.
- Page 10 7inch HDMI LCD (B) save and reboot your Pi sudo reboot After completing these steps. The LCD could rotate 90 degree both display and touch. 【Note】 90 degree: Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1" 180 degree: Option "CalibrationMatrix" "-1 0 1 0 -1 1 0 0 1"...
