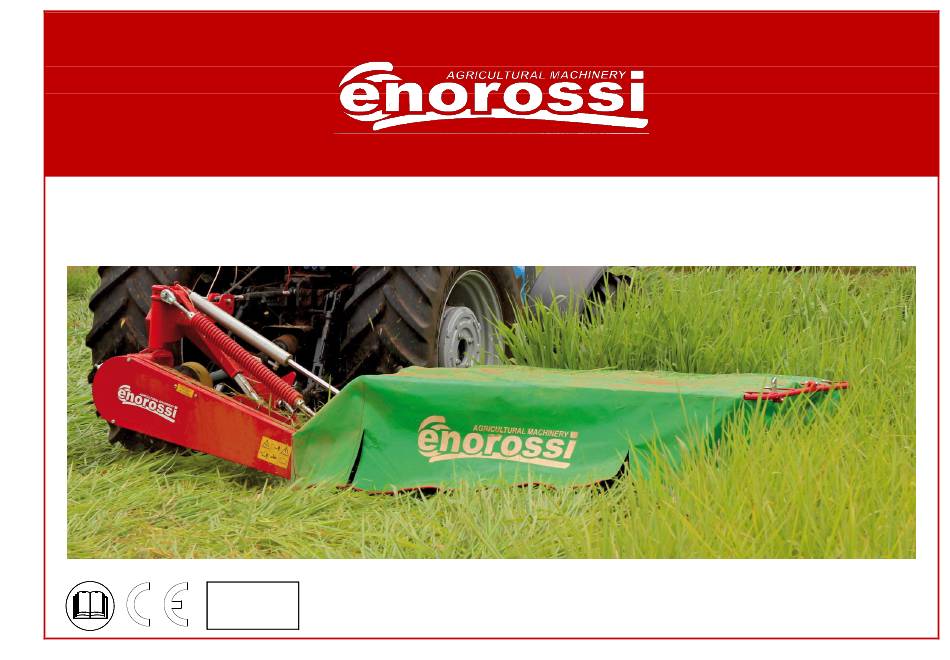

- Page 1 DM 7 - 8 Disc Mower USE and MAINTENANCE MANUAL TRANSLATION TRANSLATION OF THE ORIGINAL OF THE ORIGINAL INSTRUCTIONS INSTRUCTIONS Issue 5 – 8/2020 ENOAGRICOLA ROSSI s.r.l. - Via Cortonese, 36 - Calzolaro di Umbertide 06019 - Pg Italia Tel. (39) 075-930 22 22 Telefax (39) 075-930 23 28...
-
Page 2: Ec Declaration Of Conformity
Legal representative All rights are reserved. It’s forbidden reproducing or coping any parts of this manual, in any form, without the explicit permission signed by ENOROSSI. The contents of this manual can only be modified by the Manufacturer and without... -
Page 3: Table Of Contents
use and maintenance manual CONTENT EC DECLARATION OF CONFORMITY ............................... 2 INTRODUCTION ....................................5 Information about the disc mower............................... 5 Information about the manual ..............................5 Identification plate and CE mark ..............................6 Technical data and main components ............................7 Warranty ..................................... - Page 4 use and maintenance manual...
-
Page 5: Introduction
A 2 I n f o r m a t i o n a b o u t t h e m a n u a l The ENOROSSI company (hereafter called Manufacturer) has designed and built the disc mower in obedience to appropriate safety regulations in order to protect both the operators which work with the equipment and its operating system. -
Page 6: A3 Identification Plate And Ce Mark
use and maintenance manual The manual is updated to the characteristics of the disc mower and does not relate to earlier models. Nevertheless the Manufacturer reserves the right to modify the manual if new regulations were issued (Machine Directive) in the subject of technical content or only to improve comprehension without obligation to update the machines and preceding manuals. -
Page 7: A4 Technical Data And Main Components
A 4 T e c h n i c a l d a t a a n d m a i n c o m p o n e n t s MODEL TECHNICAL DATA DM 7 DM 8 WORKING WIDTH... - Page 8 use and maintenance manual 1. Mobile chassis 10. Lifting lever 2. Multiplier (or transmission gear) 11. Slide 3. Spring 12. Stop lever 4. Safety hook 13. Protection frame 5. Jack (for lifting and lowering bar) 14. Side rake disc 6. Three-point hitch 15.
-
Page 9: A5 Warranty
A 5 W a r r a n t y The Enorossi company guarantees that the disc mower is exempt from defects in any kind since it has been submitted to testing before its delivery to the Customer. The warranty has a one-year validity starting from the indicated date on the fiscal document of delivery. - Page 10 use and maintenance manual The warranty does not apply if: the machine is used by personnel inadequately trained; the instructions and rules contained in this manual are not followed; the prescribed maintenance tasks are not performed; the Customer modifies the equipment without the written authorisation of the Manufacturer or when the Customer effects tampers with components;...
-
Page 11: Safety
use and maintenance manual SAFETY B 1 G e n e r a l r u l e s In this manual are described those necessary for the use of the disc mower. Most accidents at work occur because the most elementary safety rules are not observed. - Page 12 use and maintenance manual Movements: before moving it is necessary to verify that all safety and locking devices are present and integral. If one was missing or not integral, it is forbidden both the transport and the use of the equipment. For every movement the disc mower must be always disposed in the TRANSPORT CONFIGURATION, shown in figure, that is with the equipment lifted of about 30 ÷...
- Page 13 use and maintenance manual 2. turn front guard I (fig. 20) backward until the fastening point with hook L; 3. lift the bar using the tractor’s hydraulic lift, positioning lower slide M (fig. 21) at about 30-40 cm from the ground; 4.
- Page 14 use and maintenance manual For movements within fields, the machinery (tractor and disc mower) does not act any light or sound signals, or any signs to be displayed. Instead, if the movements are effected on public roads, it is important that the following obligations are observed: rear dimensions: the operator should apply the relevant signs on the disc mower to indicate the rear dimensions of the tractor.
- Page 15 use and maintenance manual before reversing with the tractor, he should check that the disc mower is not in the working configuration. If It was, the equipment must be momentarily disposed in the end field configuration, that is similar to the transport one described in the chapter “Use and Operation”.
- Page 16 use and maintenance manual all safety and locking devices are present and integral. Is one of these was or a device not approved was installed, the Manufacturer distrusts the Customer to use such shaft because forbidden; do not use the equipment if on it are present breakings or damages;...
-
Page 17: B4 Reasonably Foreseeable Misuse And Limit Of Employ
use and maintenance manual The working process must be stopped immediately if: the equipment is near to resistant objects as manholes, guard-rails, railway tracks etc. The impact could cause the blade breaking and its splinters will be thrown over the place at high speed; wires, chains or anything else are twisted round the one or more disc rotors. -
Page 18: B5 Operator's Responsibility And Safety
use and maintenance manual Do not use the disc mower if: the forage to mow results damp. In these conditions it, getting sticky, accumulates itself on the blades of the equipment limiting the functions and increasing them wear. If this happens, both the machine warranty and the Manufacturer’s responsibility will be immediately void;... - Page 19 use and maintenance manual They vary in shape and colour, depending on the rules they are related to. The operator needs to know that circular labels stand for obligation (blue and white) or prohibition (red, white and black). The triangular labels stand for danger (yellow and black). Other rectangular labels emphasise warning of danger and supply more information about the safety rules need to be...
-
Page 20: B6 Noisiness
use and maintenance manual brake, remove the starting keys from the dashboard and provide to eject the intrude; D. danger of gear breaking. Verify on the tractor power take off that the number of revolutions is 540 and with clockwise rotation; E. -
Page 21: Installation
use and maintenance manual INSTALLATION C 1 A s s e m b l y o f d i s c m o w e r To facilitate shipments of the machines, several parts have been disassembled to reduce the shipping dimensions. To reassemble, proceed as follows: open the case and lay the mower disc bar flat, as indicated in fig.C1;... - Page 22 use and maintenance manual 1. Assembly of the protection support : Mount protection support A in gear case B (. First of all, connect the lifting rod hole to support D (fig.C4a) . Fasten the support with screws C (screw T.E. M12x50 and washer M12 Y and spacer J). fig.C4a...
- Page 23 use and maintenance manual 2. Assembly of the protection bar : Position the protection bar E in support A (fig.C4b) and fasten it with six screws F (screw T.E. M10x35), six washers, and six self- locking nuts G M10 (only on DM-P series).
- Page 24 use and maintenance manual 3. Assembly of the support rod and fig.C6a support for high grass: Mount support rod H and support for high grass W (fig.C5), and fasten respectively by screws Y (T.E. M10x70 + 2 self- locking nut M10 and washers), and screws V (T.E.
- Page 25 use and maintenance manual fig.C7 fig.C8a fig.C8b 8. Assembly of the belt protection case: Mount case U (fig.C10), fasten with screws V (T.E. M10x120), washers and self-blocking nuts (M10). fig.C10 fig.C10...
- Page 26 use and maintenance manual 9. Assembly of the compensating spring: Hook spring W (fig.C11) on pin Y of the protection support and fasten it with an elastic pin Ø 6x40. To facilitate this operation, attach the machine to the tractor. By using the hydraulic lift of the tractor, lift the bar until the support hole is aligned with pin Y (fig.C11).
- Page 27 use and maintenance manual 11. Assembly of protection guards: Mount front guard H (fig.C14) on the three hinges and fasten with screws I (T.E. M12x100) and self- locking nuts M12 + washer. Mount rear guard L (fig.C14) with six screws M (TTQS M10x25) and self-locking nuts M10.
-
Page 28: C2 Installation Of The Disc Mower To The Tractor And Working Configuration
use and maintenance manual 15. Assembly of bearing foot (fig.20): Place the support of bearing foot (49) on the equipment chassis, as shown in figure, and fix by using the relevant screws (48) and nuts (46); Remove the split pin (50) and the safety pin (51) from the bearing foot. – Insert the bearing foot (52) in its support (49). - Page 29 use and maintenance manual 2. Insert the adjustable tie rod of tractor C in the seat of the three point of the disc mower. Insert the locking pin (D - fig. C21A) and lock it with the relative safety-pin; 3. Verify that the equipment chassis is perfectly vertical, otherwise to provide to adjust it by unscrewing or screwing the body of the tie rod.
- Page 30 use and maintenance manual 7. Adjustment of frame height from the ground: a. for tractors equipped with hydraulic lift position control: Position the tractor on level ground and lower the hydraulic lift until the lifting lever F (fig.C24) is positioned at a distance of 8/10 mm from the edge, as shown in (fig.C24). After that, set the lift control from the tractor driver seat.
-
Page 31: C3 Removal Of The Mower From The Tractor
use and maintenance manual C 3 R e m o v a l o f t h e m o w e r f r o m t h e t r a c t o r 1. Using the hydraulic hitch, lower the disc mower to a horizontal position. 2. -
Page 32: C4 Storage Of The Disc Mower
use and maintenance manual C 4 S t o r a g e o f t h e d i s c m o w e r Park the equipment in a safe and covered site and that it be a solid and flat surface. Nota: avoid to park the equipment in sites not covered because the humidity, also if it does not effect its operation, allows in way more evident the rusty formation on the parts. -
Page 33: Operating And Use
use and maintenance manual OPERATING and USE D 1 P r e l i m i n a r y c h e c k s A appropriate and optimum use of the disc mower, other than to prevent the accidents, is the one way to obtain a high productivity so to individuate its true potentiality and performances. -
Page 34: D2 Operation
use and maintenance manual b. pull cord O (fig.C30) to free the bar from safety hook P1; c. lower the mower using the hydraulic cylinder until it reaches the work position; d. turn the front tarpaulin carrier over forward (fig.C31); Check the height of the chassis from the ground. -
Page 35: D3.1 Adjustment Of Cutting Height
use and maintenance manual IMPORTANT : do not mow in extremely stony or rocky areas ; at end field: it will not be necessary to put the disc mower in transport configuration, but it will be enough to lift the bar with the discs, as shown fig.C32. -
Page 36: D3.2 Adjustment Of The Side Rake Disc
use and maintenance manual D 3 . 2 A d j u s t m e n t o f t h e s i d e r a k e d i s c Position the rake disc in order to have the greatest distance between the uncut forage and the windrow. -
Page 37: D3.4 Wear Proof Skids Kit
use and maintenance manual D 3 . 4 W e a r p r o o f s k i d s k i t The cutter bar has been designed to assembled wear proof skids. They are offered as an option. The kit includes: - Longer screws (1) and nut (3);... -
Page 38: Maintenance
use and maintenance manual MAINTENANCE E . 1 M a i n t e n a n c e i n s t r u c t i o n s The Manufacturer, following to operational tests, has foreseen some maintenance programmes which permit, if respected and performed with care by the Customer, to maintain unchanged the machine efficiency and capacity preserving the disc mower from every operating damages. -
Page 39: Checks, Adjustments And Replacements
The discs, blades, and fastening screws are made of a special high-quality steel and heat- treated to increase their durability and resistance to wear. Worn or damaged parts must be immediately replaced with ENOROSSI original parts, otherwise it will not be possible to make any warranty claims or requests. - Page 40 Use ENOROSSI original spare parts. For your safety, and for a better cutting quality, make systematic checks of the wear condition of the blades before every use of the mower. Change blades immediately if they are damaged, because if work is done occasionally in difficult conditions, the risk of accidents increases, the cutting quality decreases, and vibrations may also damage the disc support.
-
Page 41: Lubrification
use and maintenance manual E . 3 L u b r i f i c a t i o n Lubrication of the mowing bar (contains oil) Oil level check: check the oil level before starting to mow for the first time, and in normal conditions (no oil leaks) every year. Lift the bar using the hydraulic hitch as indicated in fig. - Page 42 use and maintenance manual quantity: fig.E9 DM7: 3.5 liters DM8: 4 liters. NOTE: during work, it is normal for the oil in the tank and the gear case to heat up; there are no problems if the discs turn freely when turned by hand. ...
