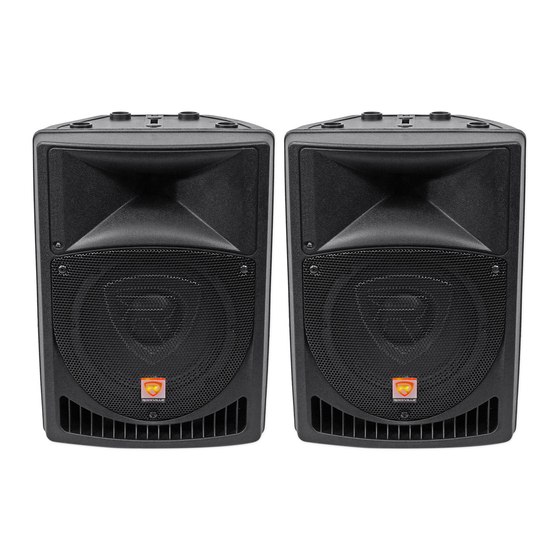

Rockville POWER GIG Series Owner's Manual

Powered active 2-way dj pa speaker systems
Hide thumbs Also See for POWER GIG Series:

Advertisement

Quick Links

Download this manual
POWER GIG Series
Powered Active 2-Way DJ PA Speaker Systems
WATCH THESE VIDEOS BEFORE FIRST USE!
Scan the QR codes or visit the URLs to access how-to
video(s), the owner's manual, and other important information
you may need to get the most out of your item.
If you prefer written instructions, please read ahead!
With Rockville you get many options.
rockvillesupport.com/rpg8
rockvillesupport.com/rpg12
Missing items?
are missing part of your bundle then it just means your order shipped from two different
warehouses. You will receive the remaining items very soon. If you have any concerns or
inquiries, feel free to call our customer support center at 1-646-758-0144, 24 hours a
day/7 days a week.
OWNER'S MANUAL
ATTENTION:
Who reads manuals?
If you ordered a bundle that includes more than one product and you
rockvillesupport.com/rpg10
rockvillesupport.com/rpg15

Advertisement

loading
Need help?

Need help?

Do you have a question about the POWER GIG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville POWER GIG Series

Summary of Contents for Rockville POWER GIG Series

  • Page 1 Scan the QR codes or visit the URLs to access how-to video(s), the owner’s manual, and other important information you may need to get the most out of your item. If you prefer written instructions, please read ahead! With Rockville you get many options. rockvillesupport.com/rpg8 rockvillesupport.com/rpg10 rockvillesupport.com/rpg12 rockvillesupport.com/rpg15...
  • Page 2 Thank you for purchasing this Rockville Power Gig series pro audio speaker. Please read this installation guide carefully for proper use of your Power Gig speaker. Should you need technical assistance please call our technical help line at 1-646-758-0144, 24 hours a day/7 days a week.
  • Page 3 Stage Monitor Setup Your RPG speaker comes standard with two brackets which snap in to the cabinet sides allowing it to be placed on the floor at an angle as a stage monitor. Unlike a PA setup which face the crowd, stage monitors are set up to face the performer on stage and to direct the sound towards them.
  • Page 4 SETTING LEVEL CONTROLS It is best practice to set your input level controls (gains) in the manner shown below. For this instance we will be using Set the volume of the external the Line In RCA jacks. stereo signal source (mixer, keyboard, electronic drums, CD player, DVD music player, smart...

  • Page 5: Line Input

    SETTING LEVEL CONTROLS (continued) After you set the levels on all input devices, you can readjust the RPG's levels as necessary. When adjusting the Mic level controls, you must speak into the micophone and adjust the level control as needed. This is because adjustments to the mic input are a matter of mic volume in relation to the music volume and not necessarily a clipping issue.
  • Page 6 Public Address/Concert Mixer 5. Switch on the RPG unit. 6. Slowly raise the level of the mixer output to the 0dB level position. 7. Slowly turn up the input's level,in this case the Gain controller (a). As soon as the clip indicator LED goes on (b) or you hear any distortion –...
  • Page 7 APPLICATION USES Line Input Feature You can use the Line Input function when you wish to hook up an additional stereo signal source without the use of a mixer console. Mixers, CD players, DVD music players, MP3 players, etc can be plugged directly in to the XLR/RCA jacks labeled LINE IN. 1.
  • Page 8 Front Side Peak Level Limiter Your RPG unit features a blue LED on the cabinet front to the left of the woofer. This LED is not a clip indicator but a system level meter. You do not have to be concerned if this LED lights steadily or blinks, it is simply monitoring your musical output and indicating to you proper function of the RPG unit.

  • Page 10: Features & Specifications

    Features /Specifications RPG8 • 100 Watt RMS/200 Watts Program Power/400 Watts Peak • High power long-throw 8˝ woofer with 2˝ aluminum voice coil provides incredibly deep bass and acoustic power. • Frequency Response: 50Hz – 20kHz • Maximum SPL @1w/1m: 119dB peak/116dB continuous •...
  • Page 11 • Ultra-low noise Mic input via XLR & ¼˝ TRS jacks with independent volume control • Line RCA and XLR input with separate Gain adjustment • Additional balanced line output via XLR jack for linking of additional speaker systems • Versatile trapezoidal enclosure design allows different positioning •...
  • Page 12 Features /Specifications (continued) RPG15 • 250 Watts RMS/500 Watts Program Power/ 1000 Watts Peak • High power long-throw 15˝ woofer with 3˝ aluminum voice coil provides incredibly deep bass and acoustic power. • Frequency Response: 35Hz – 20kHz • Maximum SPL @1w/1m: 128dB peak/125dB continuous •...

  • Page 13: Replacing The Fuse

    Replacing the Fuse The RPG Series PA speakers feature an IEC power socket with a user-serviceable fuse compartment. Follow the steps below to replace a blown fuse. Make sure to replace the current fuse with one of the same value. 1.
  • Page 14 1. Make sure you've selected the proper source. playback 2. Make sure that the audio files are in the specified format. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 600 Bayview Ave. Entrance A Inwood, NY 11096 Hereby declares that the product(s) RPG series pro audio speakers comply with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules.
  • Page 16 RockvilleAudio.com © 2023 ROCKVILLE // Features and specifications are subject to change and/or improvement without notice.
