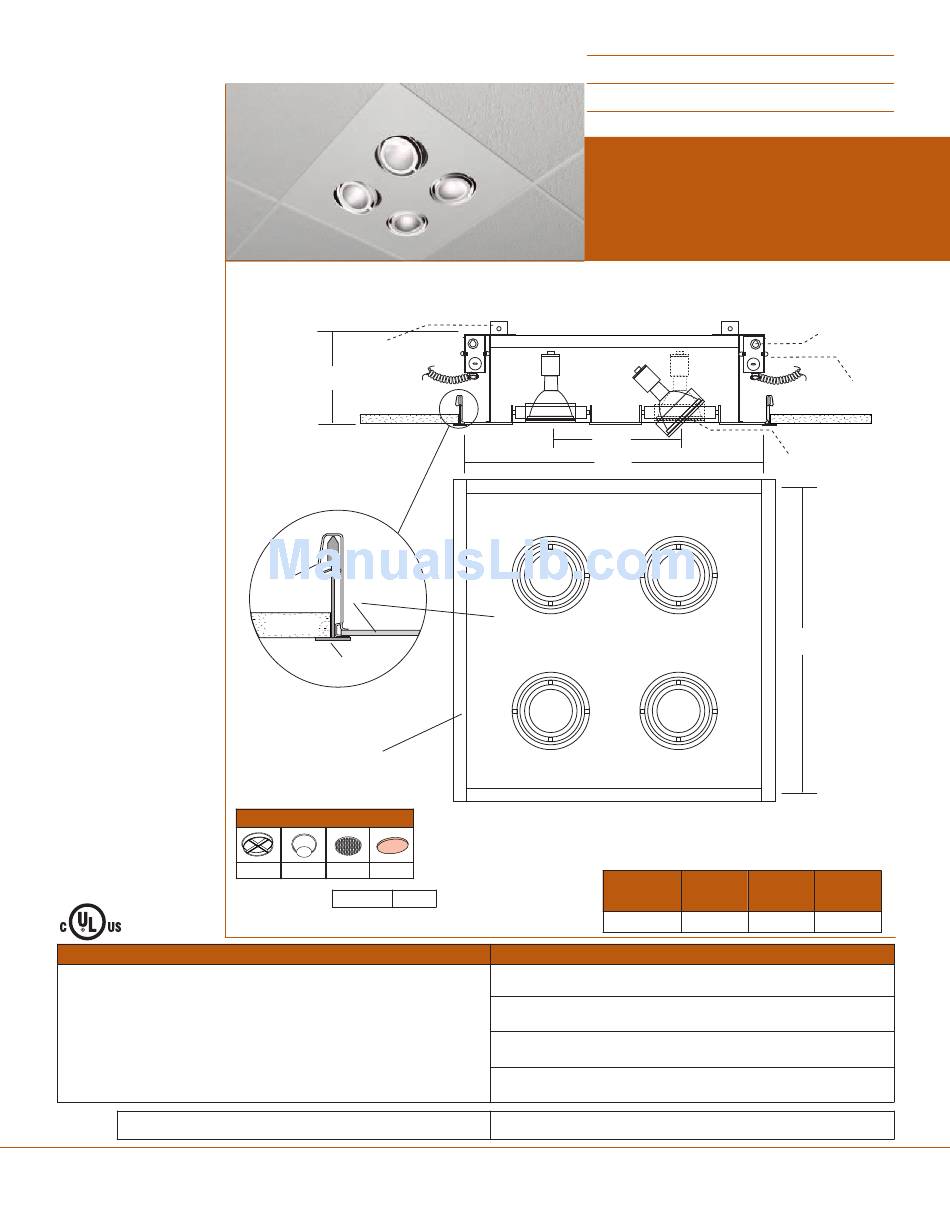

RSA Lighting COMBOLIGHT GRF Series GRF420 Specifications

RECESSED GRID CEILING MOUNT
COVERED OPENING PAR20
DESCRIPTION:
An adjustable PAR20 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. For use in lay-in
t-bar grid style ceilings. Powder
coat finish on housing & lamp
assembly.
CONSTRUCTION:
Housing Assembly: 18 gauge
CRS. J-Box Assembly: 16 gauge
CRS (galvanized). Faceplate
cover: .125" Aluminum plate.
Fixture utilizes specially devel-
oped retaining clips for snap-in
mounting directly to t-bar sup-
ports. Tabs on housing top
accommodate above ceiling air-
craft cable support for added
stability.
LAMP ASSEMBLY:
Four PAR20 lamps mounted in
adjustable bezels. Each lamp
can accept up to two optical
accessories. Double gimbals
provide 45º x 45º adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in
housing provide cooler operation
ELECTRICAL:
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. J-box and
wiring accessible through ceiling
opening.
ALL RSA COMBOLIGHT
PRODUCTS ARE MADE IN
THE U.S.A.
Cat. # / Description
GRF420 - 4 Light Recessed Combo for
Lay-in Grid Style Ceilings
120V PAR20
SPECIFY -
RSA LIGHTING
Tabs for
aircraft cable
suspension
A
Fixture
Retaining
.125" Aluminum
Clip
Coverplate
Ceiling Tile
T-Bar Support
Ceiling Tiles and T-Bar by others
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
ORDERING EXAMPLE: GRF420 WH
= Four Light Recessed Combo for Grid Style Ceiling (Covered Opening) -
120 V PAR20 - White Finish
GRF420
®
Catalog #
Type
Project
Other Adders:
CC - Two Circuit
Finish
BK -
Black
WH -
White
S -
Silver
PT -
Custom
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
COMBOLIGHT® GRF Series
FOUR (4) Light Recessed
Multi-Lamp Luminaire
for Lay-in, T-Bar Grid Style Ceiling
Covered Opening
Line Voltage PAR20
C
D
A B C
Overall Height Overall Width Lamp Spacing
8.50" 23.44" 7.24"
Thermal protector
Junction Box
Double Gimbals
45º x 45º locking
angular adjustment
B
D
Overall Length
23.44"
