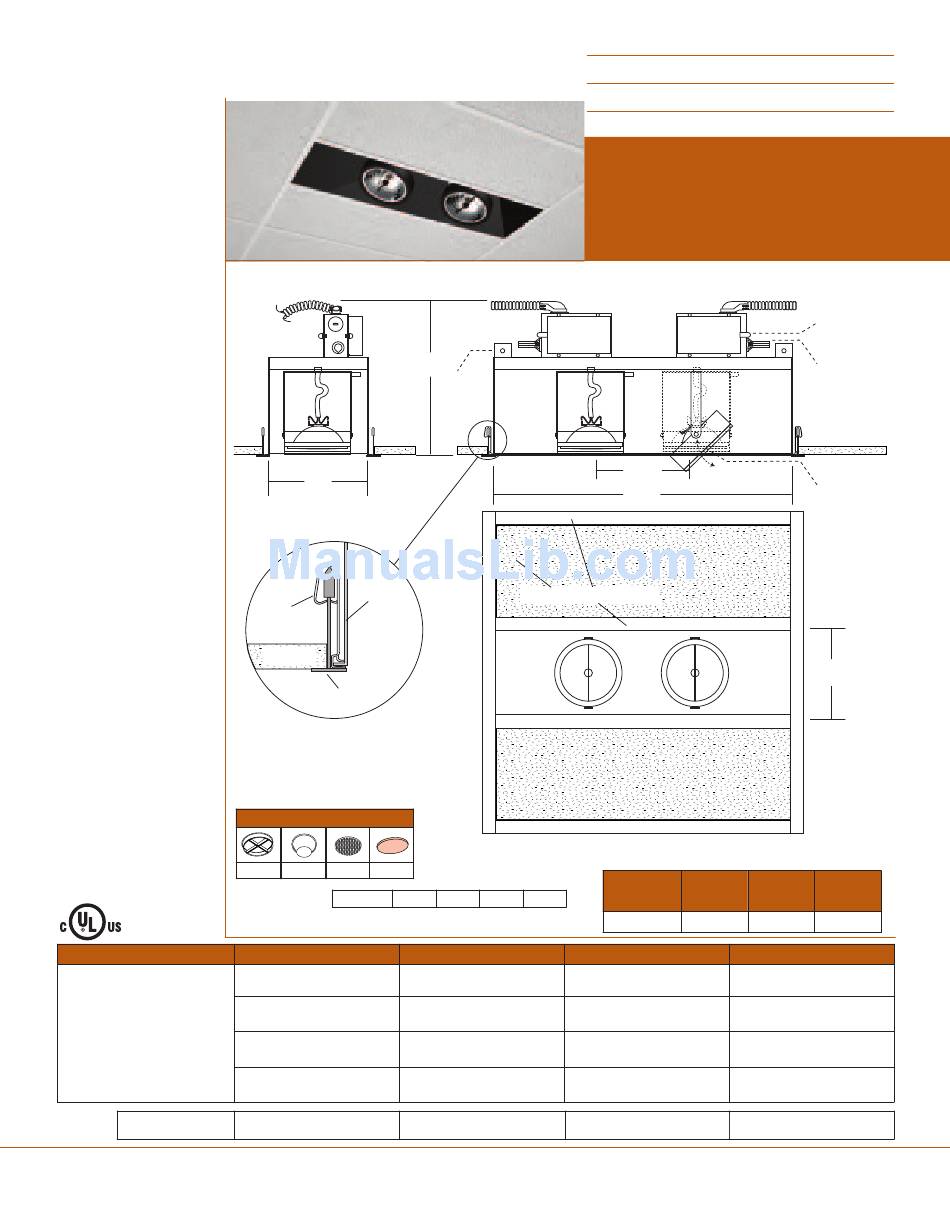

RSA Lighting COMBOLIGHT GR2111 Specifications

RECESSED GRID CEILING MOUNT
w/ OPEN HOUSING AR111
DESCRIPTION:
An adjustable AR111 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. For use in lay-in
t-bar grid style ceilings. Powder
coat finish on housing & lamp
assembly.
CONSTRUCTION:
Housing Assembly: 18 gauge
CRS. J-Box Assembly: 16 gauge
CRS (galvanized). Fixture utilizes
specially developed retaining
clips for snap-in mounting
directly to t-bar supports. Tabs
on housing top accommodate
above ceiling aircraft cable sup-
port for added stability.
LAMP ASSEMBLY:
Two AR111 lamps mounted in
adjustable bezels. Each lamp
can accept up to two optical
accessories. 380º x 45º locking
lamp adjustment. Provides 45º
visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in
housing provide cooler operation
ELECTRICAL:
Integral electronic transformers.
Fused and short circuit protec-
tion. Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run.
Transformers and electrical
wiring accessible through ceil-
ing opening.
ALL RSA COMBOLIGHT
PRODUCTS ARE MADE IN
THE U.S.A.
Cat. # / Description
GR2111 - 2 Light Recessed
Combo for Lay-in
Grid Style Ceilings
12V AR111
SPECIFY -
GR2111
RSA LIGHTING
B
Fixture
Fixture
Housing
Retaining
Clip
Ceiling Tile
T-Bar Support
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
ORDERING EXAMPLE: GR2111 50
= Two Light Recessed Combo for Grid Style Ceiling (Open Housing Aperture) -
AR111 50W - Black Interior Finish - Regular Yoke Lamp Holder - 120 Volt
Lamp Wattage Interior Finish
35 - BK -
35 Watt 12 Volt AR111
50 - WH -
50 Watt 12 Volt AR111
75 - S -
75 Watt 12 Volt AR111
100 - PT -
100 Watt 12 Volt AR111
___
___
®
Catalog #
Type
Project
ELECTRONIC
Transformers
A
Tabs for
aircraft cable
suspension
Ceiling Tiles and T-Bar by others
Other Adders:
CC - Two Circuit
BK YK 120
Lamp Holder
YK -
Black
RT -
White
Silver
Custom
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
COMBOLIGHT® GR Series
TWO (2) Light Recessed
Multi-Lamp Luminaire
for Lay-in, T-Bar Grid Style Ceiling
Open Housing Aperture
Low Voltage AR111
ELECTRONIC
Transformers
C
D
A B
Overall Height Overall Width Lamp Spacing
11.97" 8.01" 7.75"
Voltage
120 -
Regular Yoke (Standard) 120 Volt
277 -
Retractable Yoke 277 Volt
___
Junction Box
Thermal protector
380º x 45º locking
angular adjustment
B
C D
Overall Length
23.44"
