RSA Lighting Combolight GR Series GR430MH Specifications

RECESSED GRID CEILING MOUNT
w/ OPEN HOUSING PAR30MH
DESCRIPTION:
An adjustable PAR30MH fixture
suitable for multiple downlight-
ing applications with one point
of electrical entry. For use in lay-
in t-bar grid style ceilings.
Powder coat finish on housing &
lamp assembly.
CONSTRUCTION:
Housing Assembly: 18 gauge
CRS. J-Box Assembly: 16 gauge
CRS (galvanized). Fixture utilizes
specially developed retaining
clips for snap-in mounting
directly to t-bar supports. Tabs
on housing top accommodate
above ceiling aircraft cable sup-
port for added stability.
LAMP ASSEMBLY:
Four PAR30MH lamps mounted
in adjustable bezels. Each lamp
can accept up to two optical
accessories. 380º x 45º locking
lamp adjustment. Provides 45º
visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in
housing provide cooler operation
ELECTRICAL:
Integral Aromat® electronic
metal halide ballsts. Junction box
is UL listed for through branch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of
run. Ballasts and electrical wiring
accessible through ceiling opening.
ALL RSA COMBOLIGHT
PRODUCTS ARE MADE IN
THE U.S.A.
Cat. # / Description
GR430MH - 4 Light Recessed
Combo for Lay-in
Grid Style
Ceilings
PAR30MH
SPECIFY -
GR430MH
RSA LIGHTING
A
Tabs for
aircraft cable
suspension
Fixture
Fixture
Housing
Retaining
Clip
Ceiling Tile
T-Bar Support
Ceiling Tiles and T-Bar by others
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
ORDERING EXAMPLE: GR430MH
= Four Light Recessed Combo for Grid Style Ceiling (Open Housing Aperture) -
39 Watt PAR30MH - Black Interior Finish - Regular Yoke Lamp Holder - 120 Volts
Lamp Wattage Interior Finish
39 - BK -
39 Watt PAR30MH
70 - WH -
70 Watt PAR30MH
S -
PT -
___ ___
®
Catalog #
Type
Project
AROMAT®
Metal Halide
Ballasts
Other Adders:
CC - Two Circuit
39 BK YK 120
Lamp Holder
YK -
Black
RT -
White
Silver
Custom
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.

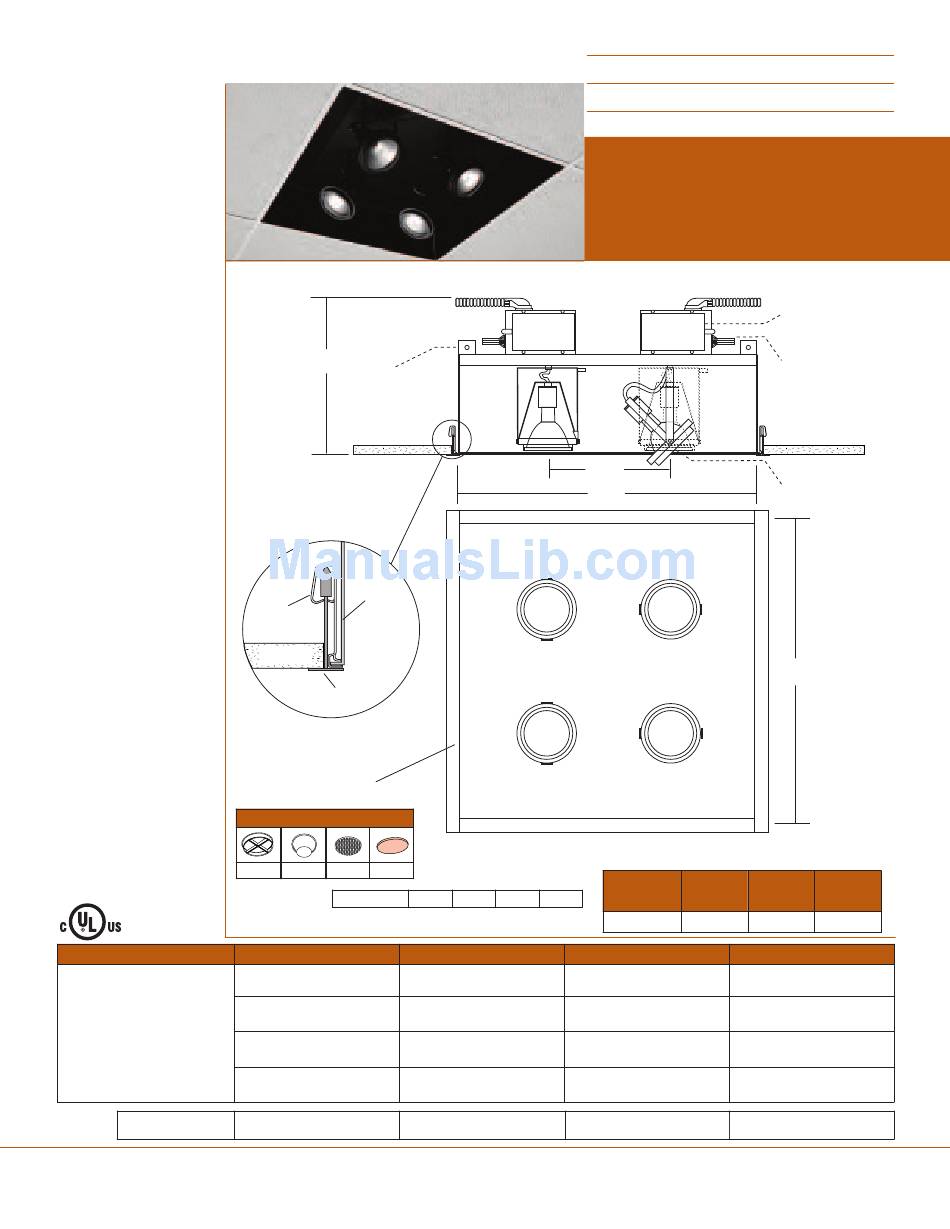

COMBOLIGHT® GR Series
FOUR (4) Light Recessed
Multi-Lamp Luminaire
for Lay-in, T-Bar Grid Style Ceiling
Open Housing Aperture
Metal Halide PAR30MH
Junction Box
AROMAT®
Metal Halide
Ballasts
Thermal protector
C
D
A B
Overall Height Overall Width Lamp Spacing
11.97" 23.44" 7.21"
Voltage
120 -
Regular Yoke (Standard) 120 Volt
277 -
Retractable Yoke 277 Volt
___
380º x 45º locking
angular adjustment
B
C D
Overall Length
23.44"
