[AKD5538-B]
fs = 96 kHz

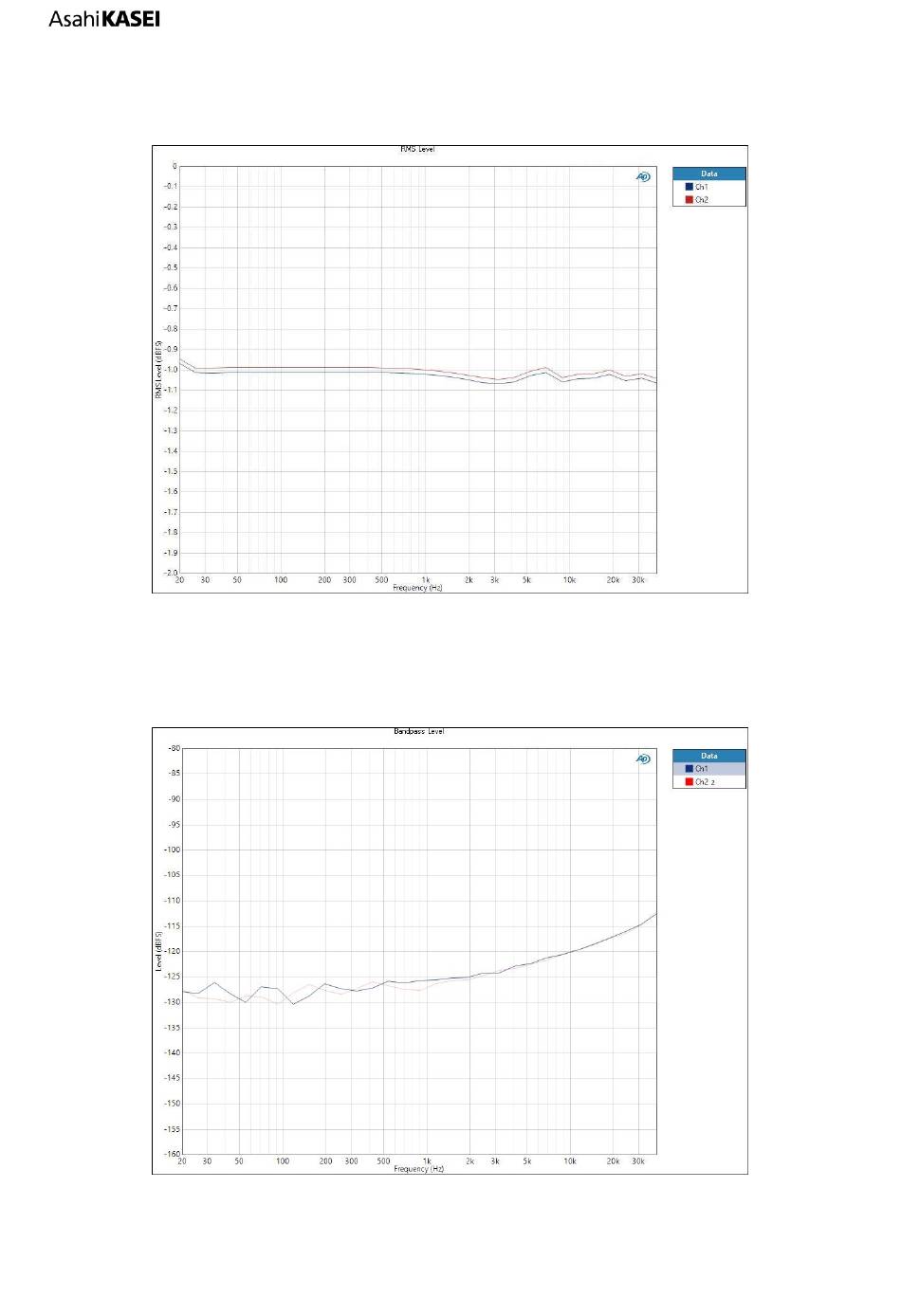

AK5538 Frequency Response
AVDD=+3.3V, TVDD=+3.3V, MCLK=256fs, -1dBFS Input
Figure 9-2-7. Frequency Response
AK5538 Crosstalk
AVDD=+3.3V, TVDD=+3.3V, MCLK=256fs, -1dBFS Input
Figure 9-2-8. Crosstalk
<KM131002>
2022/01
- 42-
