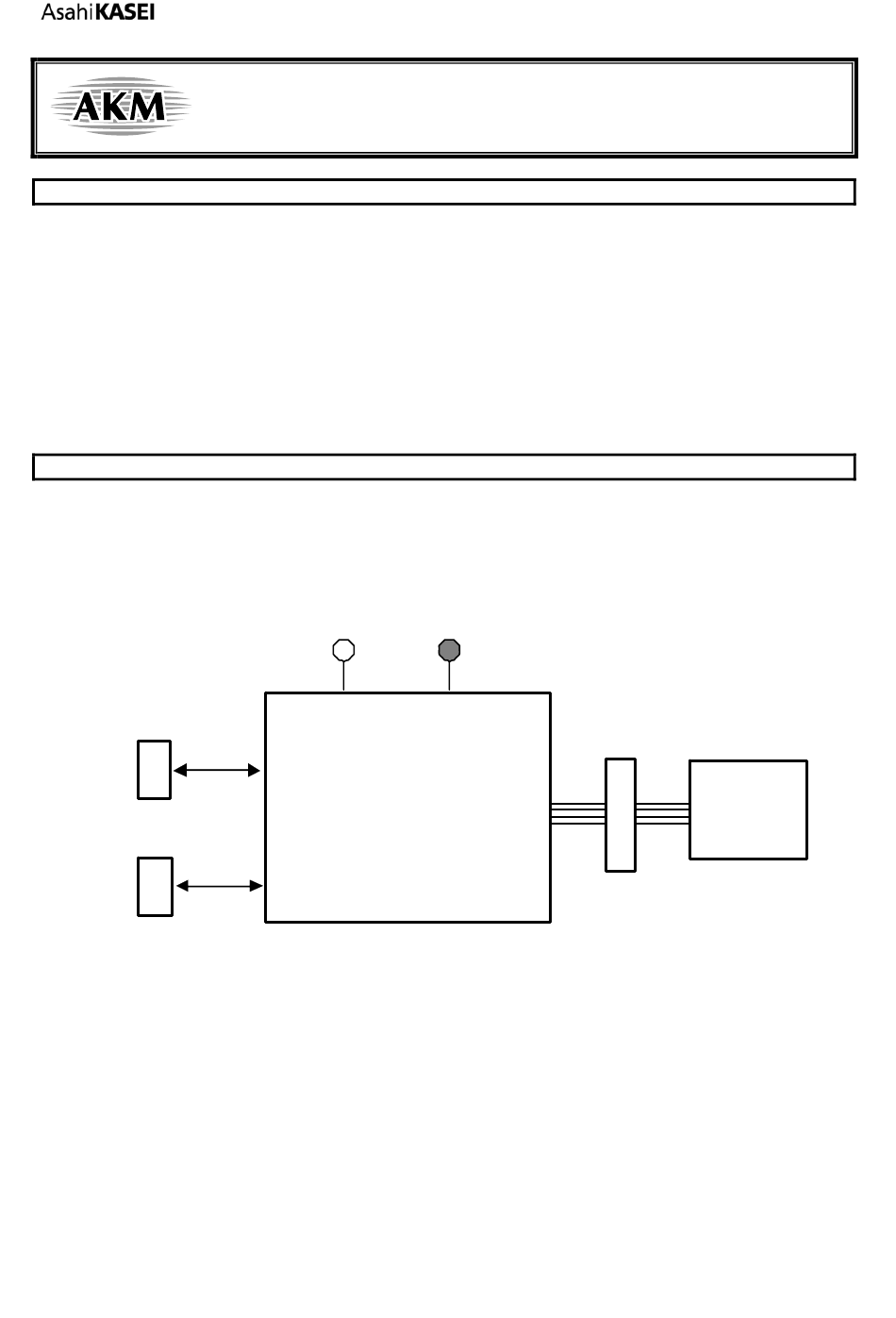

The AKD4160-A is an evaluation board for the AK4160, which is 16-channel capacitive touch sensor with
a low operating voltage and a low operating power. Since the AKD4160-A has a I2C serial I/F, it is
possible to control the AK4160 by writing and reading registers, and operate kinds of touch pad with a
capacitor sensor connector on the AKD4160-A,
■
Ordering guide
AKD4160-A ---
• I
2
C serial I/F
• Cap Sensor Connector
• Touch Pad Operations
Control Port
PORT1
I2C I/F
OPTIONAL
PORT2
IRQnN
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM104501>
GENERAL DESCRIPTION
Evaluation board for AK4160
(Cable for connecting with an USB port and control software is packed with this.)
VDD
AK4160
Figure 1. AKD4160 Block Diagram
Evaluation board Rev.0 for AK4160
FUNCTION
VSS
- 1 -
[AKD4160-A]
AKD4160-A
PORT4
Touch Pad
CS
2010/11
