Toro Outcross 9060 Series Installation Instructions Manual
Traction unit
Hide thumbs
Also See for Outcross 9060 Series:
- Operator's manual (88 pages) ,
- Installation instructions manual (16 pages)
Table of Contents
Advertisement
Quick Links
Cargo Bed
Outcross 9060 Series Traction Unit
Model No. 07530

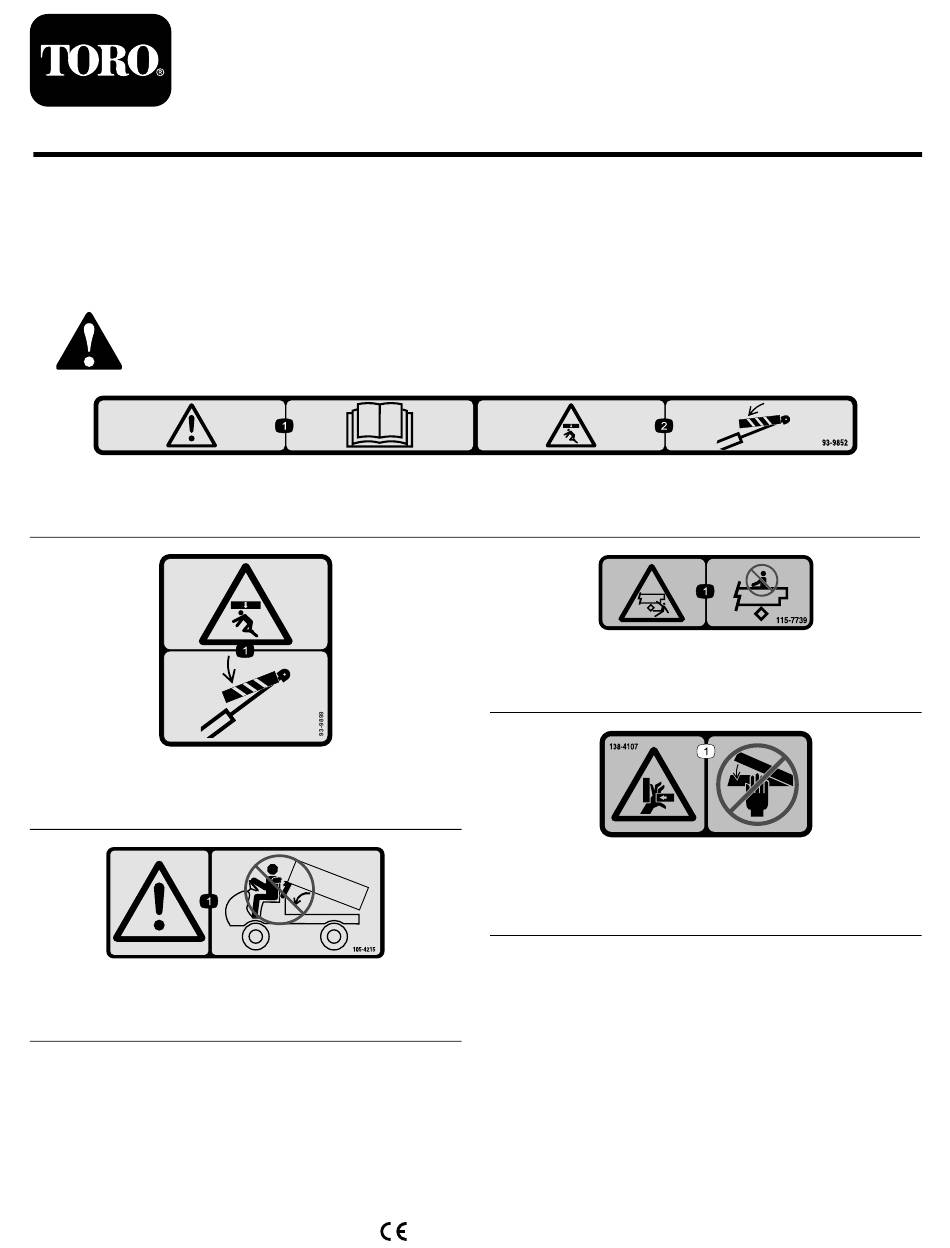

Safety
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential damage. Replace any decal that is damaged or missing.
1. Warning—read the Operator's Manual.
1. Crushing hazard—install the cylinder lock.
1. Warning—avoid pinch points.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
93-9899
105-4215
Register at www.Toro.com.
93-9852
2. Crushing hazard—install the cylinder lock.
1. Falling, crushing hazard—do not carry passengers.
decal93-9899
1. Crushing hazard of the hand—keep hands away from the
pinch point.
decal105-4215
Form No. 3433-349 Rev A
Installation Instructions
115-7739
138-4107
Original Instructions (EN)
All Rights Reserved *3433-349* A
Printed in the USA
decal93-9852
decal115-7739
decal138-4107
