DOREL ASIA

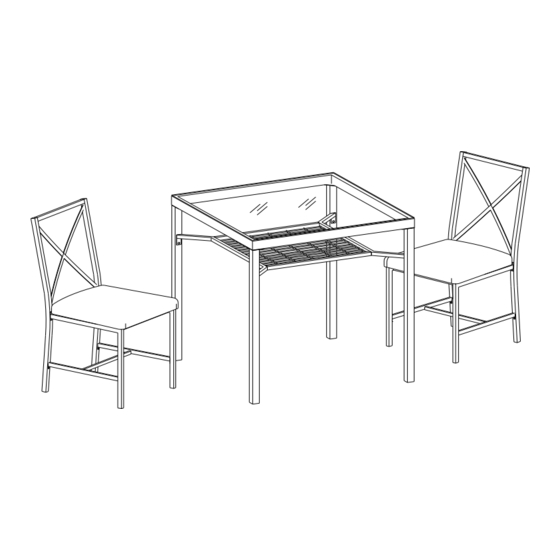

3-Pc Metal & Glass Dinette
THIS INSTRUCTION BOOKLET
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
Model No:
UPC CODE:
0-65857-17233-1
IMPORTANT
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANCE
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRODUCT
E-MAIL:DAS@DOREL.COM
DA7402
NOTE:
SAFETY
charge.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA7402
Summary of Contents for Dorel Asia DA7402
- Page 1 DOREL ASIA 3-Pc Metal & Glass Dinette Model No: DA7402 UPC CODE: 0-65857-17233-1 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
-
Page 3: Hardware List
3-Pc Metal & Glass Dinette DA7402 HARDWARE LIST Ø1/4" X 1/2" Ø1/4" X 1-3/8" Ø3/16" X 1-3/8" BOLT BOLT WOOD SCREW 28 PCS 4 PCS 8 PCS RUBBER PAD ALLEN KEY 4 PCS 1 PC... -
Page 4: Parts List
3-Pc Metal & Glass Dinette DA7402 PARTS LIST BACK FRAME CHAIR LEG CHAIR BOTTOM RAIL 2 PCS 4 PCS 2 PCS CHAIR FRONT RAIL SEAT CUSHION GLASS TOP 2 PCS 2 PCS 1 PC TABLE LEG TABLE LEG TABLE METAL SHELF... - Page 5 3-Pc Metal & Glass Dinette DA7402 STEP 1 Attach chair legs (B) to the back frame (A) with bolts (1) and Allen key (5). NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.
- Page 6 3-Pc Metal & Glass Dinette DA7402 STEP 2 Attach chair front rail (D) to the chair legs (B) with bolts (2) and Allen key (5). Attach the chair bottom rail (C) to the chair legs (B) and chair back (A) with bolts (1).
- Page 7 3-Pc Metal & Glass Dinette DA7402 STEP 3 Attach seat cushion (E) to the chair frame with wood screws (3) as shown. Use a Phillips head screw driver (not included) to tighten the screws. NOTE: Seat cushion (E) does not have pre-drilled holes. Wood screws (3) will make their own holes in seat cushion (E).
- Page 8 3-Pc Metal & Glass Dinette DA7402 STEP 4 Attach table legs (G & H) to the table frame (J) with bolts (1) and Allen key (5). NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the...
- Page 9 3-Pc Metal & Glass Dinette DA7402 STEP 5 Attach table metal shelf (I) to the table legs (G & H) with bolts (1). Use Allen key (5) to tighten all bolts installed in step 4 and 5. Turn the table upright.
- Page 10 3-Pc Metal & Glass Dinette DA7402 STEP 6 Insert the rubber pads (4) into the holes on the table frame (J) as shown below. With the help of another person, gently place the glass top (F) on top of the rubber...
- Page 11 3-Pc Metal & Glass Dinette DA7402 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 12 MODEL #: DA7402 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
