DOREL ASIA
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
DA7618 (WHITE)
DA7618-DC (WHITE)
DA7618B (BLACK)
DA7618G (GRAY)
0-65857-17418-2
0-65857-17425-0
0-65857-17453-3
0-65857-17454-0
THIS INSTRUCTION BOOKLET
IMPORTANT
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTANCE
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRODUCT TO
E-MAIL:DAS@DOREL.COM
Model No:
UPC CODE:
NOTE:
SAFETY
Lot number:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA7618 and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Asia DA7618

Summary of Contents for Dorel Asia DA7618

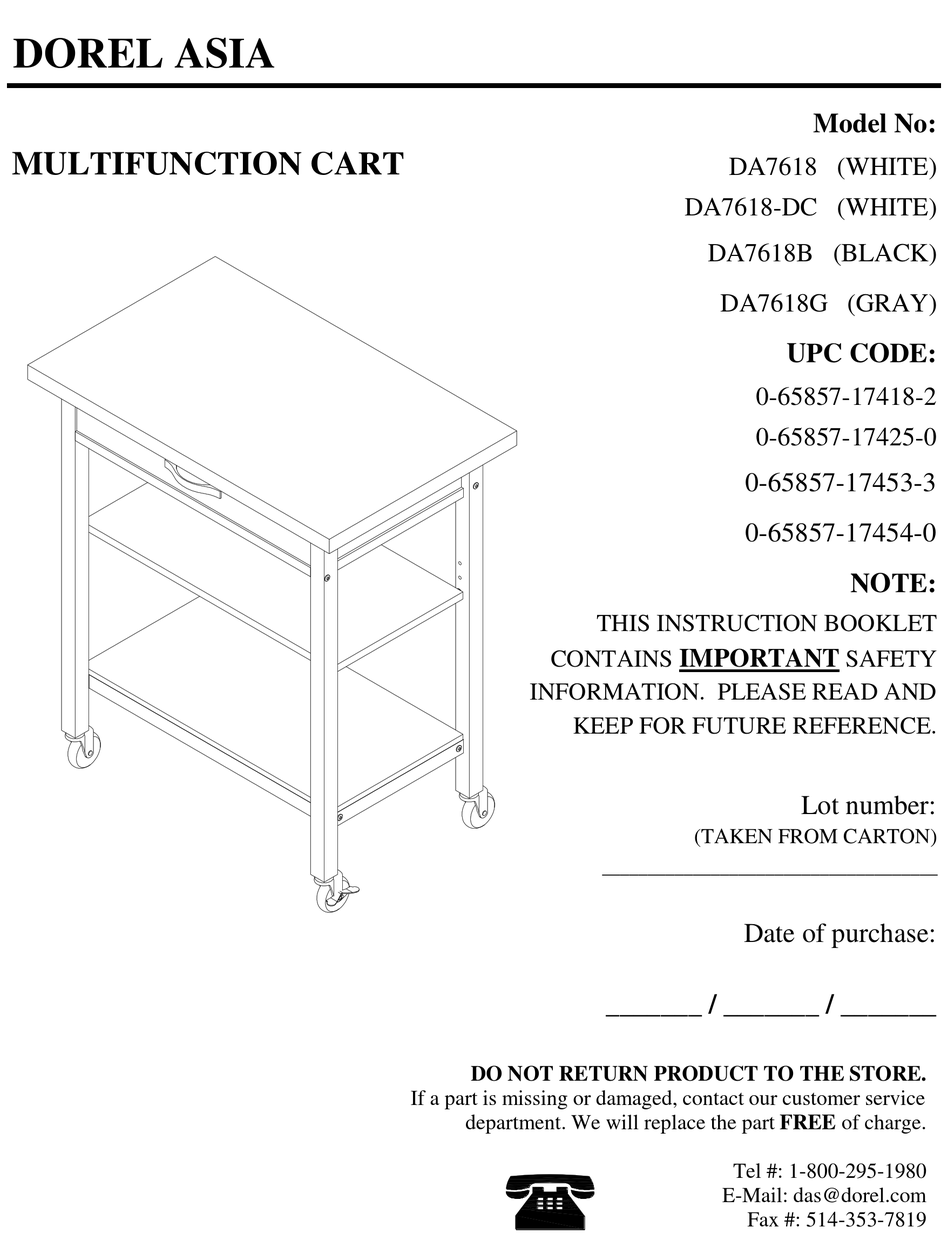

  • Page 1 DOREL ASIA Model No: MULTIFUNCTION CART DA7618 (WHITE) DA7618-DC (WHITE) DA7618B (BLACK) DA7618G (GRAY) UPC CODE: 0-65857-17418-2 0-65857-17425-0 0-65857-17453-3 0-65857-17454-0 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON)
  • Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.
  • Page 3 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G HARDWARE LIST ∅1/4" x 36mm ∅4mm x 25mm ∅6mm x 25mm CAM BOLT FLAT HEAD WOOD SCREW WOOD DOWEL 6 PCS 14 PCS 6 PCS ∅6mm x 3mm x 12mm ∅5/32" x 20mm 30mm x 14mm ROUND WOOD SCREW...
  • Page 4 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G PARTS LIST DRAWER FRONT DRAWER BACK LEFT DRAWER SIDE 1 PC 1 PC 1 PC RIGHT DRAWER SIDE BOTTOM RAIL BOTTOM SHELF 1 PC 2 PCS 1 PC FRONT RAIL 1 PC...
  • Page 5 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G PARTS LIST BACK PANEL LEFT SIDE PANEL RIGHT SIDE PANEL 1 PC 1 PC 1 PC ADJUSTABLE SHELF TOP PANEL DRAWER BOTTOM 1 PC 1 PC 1 PC LOCKING CASTERS CASTERS 2 PCS 2 PCS...
  • Page 6 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 1: Attach right and left drawer side (C & D) to drawer front (A) with flat head wood screws (2). Slide drawer bottom panel (M) into the grooves of the drawer sides (C & D). Attach drawer back (B) to right and left drawer sides (C & D) with flat head wood screws (2).
  • Page 7 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 2: Attach handle (11) to drawer front (A) with round head bolts (5). Use a Phillips head screwdriver (not included) to tighten the screws and bolts.
  • Page 8 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 3: Insert cam bolts (1) to top panel (L) with a Philips head screwdriver (not included).
  • Page 9 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 4: Insert wood dowels (3) into bottom shelf (F). Attach bottom rail (E) to bottom shelf (F) with flat head wood screw (2) using a Phillips head screwdriver (not included).
  • Page 10 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 5: Attach drawer stopper (9) to front rail (G) with round wood screws (4) using a Phillips head screwdriver (not included).
  • Page 11 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 6: Insert wood dowels (3) into left and right side panels (I & J) as shown. Attach side panels (I & J) to rails (E & G) and back panel (H) with bolts (7) and Allen key (12)
  • Page 12 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 7: Insert shelf support (6) into the desired location on left and right side panels (I & J).
  • Page 13 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 8: On a clean surface, place the cart on its side as shown below. Place the adjustable shelf (K) on the shelf supports (6) as shown below. Secure the adjustable shelf (K) to the shelf suppports...
  • Page 14 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 9: Insert the locking casters & casters (N & O) into the bottom of right and left side panel (I & J) as shown and tighten with wrench (10).
  • Page 15 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 10: Insert cam lock (8) into side panels (I & J) and back panel (H) as shown. Fasten top panel (L) to the assembled unit by rotating the cam lock 1/2 turn using a Phillips head screwdriver (not included).
  • Page 16 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G STEP 11: Insert the drawer into the unit as shown.
  • Page 17 MULTIFUNCTION CART DA7618/DA7618-DC/DA7618B/DA7618G CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Top Panel maximum...

  • Page 18: Customer Service

    MODEL #: DA7618/DA7618-DC/DA7618B/DA7618G Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
