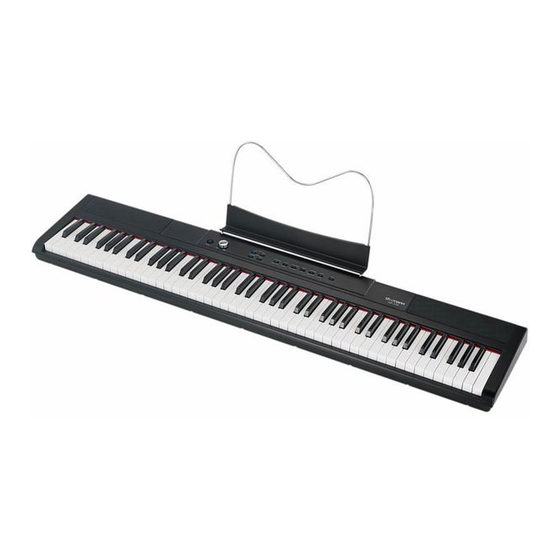

SP-320
Digital Piano

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann SP-320

Summary of Contents for thomann SP-320

  • Page 1 SP-320 Digital Piano...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.04.2023, ID: 381525 (V4)

  • Page 3: Table Of Contents

    8.1 Playing demo songs..................... 19 8.2 Reverb and Chorus effects..................19 8.3 Metronome........................19 8.4 Transposing........................20 8.5 Layer mode........................20 Troubleshooting........................22 Technical specifications....................23 MIDI implementation chart..................... 25 Function button allocation....................27 Protecting the environment................... 31 SP-320 Digital Piano...
  • Page 4 SP-320 Digital Piano...

  • Page 5: General Information

    1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download.

  • Page 6: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐ rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. SP-320 Digital Piano...

  • Page 7: Safety Instructions

    The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if necessary, i.e. felt pads or similar. SP-320 Digital Piano...
  • Page 8 Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. SP-320 Digital Piano...

  • Page 9: Features

    Connections: Headphones, USB to host (MIDI / audio), LINE OUT (L / R), sustain pedal Power supply: via the supplied power adapter or 6 D cells (LR20, 1.5 V) Operating system: Windows® 8 and later, Mac OS X® 10.8 and later Stand optionally available (item no. 399665) SP-320 Digital Piano...

  • Page 10: Installation

    Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. SP-320 Digital Piano...
  • Page 11 Installation Assembly overview ö SP-320 Operating panel Main switch Holes for music stand Claviature SP-320 Digital Piano...
  • Page 12 Installation TREBLE EQ BASS EQ TRANSPOSE AUTO POWER ON/OFF TOUCH=HIGH TOUCH=NORMAL TOUCH=LOW LOCAL ON/OFF PANIC CHANNEL TIME SIG METRO VOL LAYER VOL VOICE VOL TUNING SP-320 Digital Piano...

  • Page 13: Connection Options

    [LINE OUT] sockets in the connection box of the digital piano and the other end into DC12V 1A LINE OUT the input of the respective audio device. -∞ CLIP NOTICE! To prevent damage to the speakers, turn the volume down to ‘Mini‐ mum’ before you connect other devices to the digital piano. SP-320 Digital Piano...

  • Page 14: Control Panel And Connections

    Control panel and connections Control panel and connections ö SP-320 & ' USB TO HOST SUSTAIN L(MONO) PHONES POWER DC12V 1A LINE OUT 1 [POWER] | Main switch. Turns the device on and off. 2 [VOLUME] | Volume control for the built-in speakers and connected headphones.
  • Page 15 11/12 [LINE OUT][R]/[L(MONO)] | Output sockets for connecting the digital piano to an amplifier, stereo system, mixer or recording device. 13 [PHONES] | 1/4" phone socket to connect headphones. 14 [POWER] | DC12V1A port for an external power supply. SP-320 Digital Piano...

  • Page 16: Operating

    ð The LED of the button lights up. Keep [F#1], [G#1] or [A#1] pressed to adjust the touch sensitivity according to the table below. The device automatically exits the edit mode. ð The LED of the button lights up. SP-320 Digital Piano...

  • Page 17: Master Tuning / Midi Functions

    MIDI out channel value has been set to 10. 7.5.3 MIDI panic button Pressing the Panic button sends the commands ‘Reset all controllers’ and ‘All sounds off’ as a MIDI message to all MIDI channels from 1 – 16. SP-320 Digital Piano...

  • Page 18: Local On / Off

    Once this is done, you can release [REVERB] and [CHORUS]. The piano is now in the normal mode (can be played normally). The LEDs on the control elements now show the original status according to the fac‐ tory setting. SP-320 Digital Piano...

  • Page 19: Functions

    Press [F#0] to switch to the volume menu for the main layer. Now you can adjust the volume in 88 note steps from 0 – 127. [C7] corresponds to value 127 and [A-1] to value 0. Keep [METRONOME] and [TEMPO] pressed to exit edit mode. SP-320 Digital Piano...

  • Page 20: Transposing

    [METRONOME] and [TEMPO] light up. Now you can adjust the volume in 88 note steps from 0 – 127. [C7] corresponds to value 127 and [A-1 ] to value 0. Keep [METRONOME] and [TEMPO] pressed to exit edit mode. SP-320 Digital Piano...
  • Page 21 Press [D#0] to switch to the volume menu for the tonal colours. Now you can adjust the volume in 88 note steps from 0 – 127. [C7] corresponds to value 127 and [A-1 ] to value 0. Keep [METRONOME] and [TEMPO] pressed to exit edit mode. SP-320 Digital Piano...

  • Page 22: Troubleshooting

    On activating, the display shows ‘ Local On’ . Malfunction occurs when using a mobile phone. Using a mobile phone near the digital piano can cause inter‐ ference. To prevent this, turn off the mobile phone or use it only at a safe distance. SP-320 Digital Piano...

  • Page 23: Technical Specifications

    1,275 mm × 275 mm × 85 mm (without music stand) 1,275 mm × 275 mm × 1,000 mm (with music stand) Weight 9 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) SP-320 Digital Piano...
  • Page 24 Technical specifications Further information Colour Black Surface Matt Hammer mechanism Wooden keyboard Ivory feel keyboard Sequencer Auto accompaniment Number of rhythms Storage medium Stand Optionally available (item no. 399665) SP-320 Digital Piano...

  • Page 25: Midi Implementation Chart

    System Reset Program Change 0 – 127 0 – 127 True 0 – 127 0 – 127 System Exclusive System Common Song Position Pointer Song Select Tune Request Aux Messages LOCAL ON/OFF All Notes Off Active Sensing SP-320 Digital Piano...
  • Page 26 MIDI implementation chart Function Sent Received Notes System Reset Notes: MIDI channel modes POLY OFF MONO ON OMNI ON Mode 1 Mode 2 OMNI OFF Mode 3 Mode 4 SP-320 Digital Piano...

  • Page 27: Function Button Allocation

    Select the value to be parameterised using the following table: Tuning Voice Layer Metro.V Reverb Chorus Tempo Treble Bass EQ Trans. A#-1 Tab. 1 Tuning Voice Layer Metro.V Reverb Chorus Tempo Treble Bass EQ Trans. × × × × × SP-320 Digital Piano...
  • Page 28 × × × Tab. 2 Tuning Voice Layer Metro. Reverb Chorus Tempo Treble Bass EQ Trans. × × × × × × × × × × × × × × × × × × × × × SP-320 Digital Piano...
  • Page 29 × × × × × × × × × × × × × × × × × × × × × × × For the fields marked with ‘X’, no value is assigned in the Edit mode. SP-320 Digital Piano...
  • Page 30 Function button allocation Reset values (factory defaults) Tune Voice Layer Metro. Local Channel Tempo Voice Trans Auto Select Power Factory 1 (Grand defaults Piano) SP-320 Digital Piano...

  • Page 31: Protecting The Environment

    Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. SP-320 Digital Piano...
  • Page 32 Notes SP-320 Digital Piano...
  • Page 33 Notes SP-320 Digital Piano...
  • Page 34 Notes SP-320 Digital Piano...
