- Page 1 SP-320 digital piano user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.02.2017, ID: 381525...
-
Page 3: Table Of Contents
Functions..........................19 8.1 Playing demo songs..................... 19 8.2 Reverb and Chorus effects..................19 8.3 Metronome........................19 8.4 Transposing........................20 8.5 Layer mode........................20 Troubleshooting........................21 Technical specifications....................22 MIDI implementation chart..................... 23 Function button allocation....................25 Protecting the environment................... 29 SP-320... -
Page 4: General Notes
Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. -
Page 5: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐ rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. SP-320... -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for electronic sound generation using a piano key‐ board. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in per‐ sonal injury or property damage. - Page 7 Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. SP-320...
-
Page 8: Features

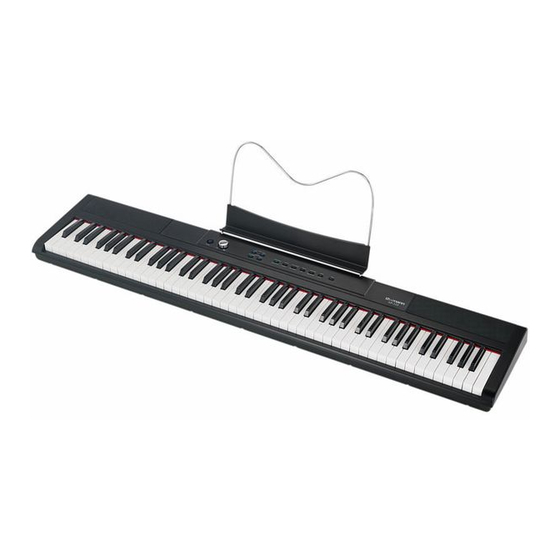

Features Features The digital piano is characterized by the following features: 88 light weighted keys 12 selectable timbres Polyphony: 32-voice Layer mode Reverb and Chorus effects Integrated metronome 12 Demo songs, playback tempo adjustable Connections: Headphones, USB to host (MIDI / audio), LINE OUT (L / R), sustain pedal Voltage supply: via the supplied power adapter or 6 D cells (LR20, 1.5 V) digital piano... -
Page 9: Installation
Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. SP-320... - Page 10 Installation Assembly overview Operating panel Main switch Holes for music stand Claviature digital piano...
- Page 11 Installation SP-320...
-
Page 12: Connection Options
Connection options Connection options Headphones The headphones output is located on the rear side of the device. Connecting headphones (not supplied) to the headphones output mutes the speakers. Pedal Connect the supplied Sustain pedal to the provided connector on the rear side of the device. -
Page 13: Control Panel And Connections
Main switch. Turns the device on and off. 2 [VOLUME] Volume control for the built-in speakers and connected headphones. 3 [DEMO/REVERB] Button to engage the Reverb effect. 4 [DEMO/CHORUS] Button to engage the Chorus effect. 5 [FUNCTION/METRONOME] Button to turn the metronome on and off. SP-320... - Page 14 Control panel and connections 6 [FUNCTION/TEMPO] Button to adjust the metronome tempo. 7 [GRAND PIANO / BRIGHT PIANO] Voice select button Grand Piano / Bright Piano [EPIANO1/EPIANO2] Voice select button EPIANO1 and EPIANO2. [CHURCH ORGAN/ROCK ORGAN] Voice select button Church Organ / Rock Organ. [STRINGS/BASS] Voice select button Strings / Bass.
-
Page 15: Operating
ð The LED of the button lights. Press [TOUCH] to activate the function. ð The LED of the button lights. Keep [F#1], [G#1] and [A#1] pressed to adjust the touch sensitivity according to the table below. SP-320... -
Page 16: Master Tuning / Midi Functions
Operating The device automatically exits the edit mode. ð The LED of the button lights. Setting Meaning ‘F#1’ Soft (0...30) In this setting, the volume is lower than usual even when playing with a hard touch. ‘G#1’ Normal (31...70) This setting corresponds to the usual touch response of a key‐ board (factory default setting). -
Page 17: Midi Panic Button
‘Local: OFF’ – built-in sound system deactivated (single key touch sound). Keep [METRONOME] and [TEMPO] pressed to exit the Edit mode. When switching off the built-in sound system, the speakers as well as the line and headphones outputs are switched off. SP-320... -
Page 18: Reset To Factory Defaults
Operating 7.5.5 Reset to factory defaults Resetting to factory defaults clears the battery-powered memory and resets all func‐ tions to the factory defaults, as they existed on delivery. To reset the piano to factory defaults, proceed as follows: Switch off the device. Keep [REVERB] and [CHORUS] simultaneously pressed and turn the piano on. -
Page 19: Functions
Keep [METRONOME] and [TEMPO] pressed for 3 seconds to change the setting. Press piano key [G#0] to select the tempo. For example, the piano key [C3] cor‐ responds to 120 BPM. Press [METRONOME] and [TEMPO] to exit the Edit mode. The LED goes out now. SP-320... -
Page 20: Transposing
Functions 8.4 Transposing Use [METRONOME] and [TEMPO] to transpose the entire keyboard by twelve semi‐ tones up or down. Use [D#2] to call up the ‘Transpose’ function. Use the piano keys [C2] to [C4] to transpose the value range. By default, the value corresponding to [C3] is set. -
Page 21: Troubleshooting
On activating, the display shows ‘ Local On’ . Malfunction occurs when using a mobile phone. Using a mobile phone near the digital piano can cause inter‐ ference. To prevent this, turn off the mobile phone or use it only at a safe distance. SP-320... -
Page 22: Technical Specifications
Technical specifications Technical specifications Keyboard 88 light weighted keys and adjustable touch velocity Polyphony 32-voice Tonal colours Pedals Sustain Connections Mains socket (Power), Headphones (1/4" phone socket), LINE Out (L / R), Sustain pedal, USB to Host Voltage supply Power adapter (12 V ) or battery operation: 6 D cells (LR20, 1.5 V) Speakers 2 ×... -
Page 23: Midi Implementation Chart
Local ON/OFF* ALL Notes OFF Active Sensing System Reset Program Change 0 – 127 0 – 127 True 0 – 127 0 – 127 System Exclusive System Common Song Position Pointer Song Select SP-320... - Page 24 MIDI implementation chart Function Sent Received Notes Tune Request Aux Messages LOCAL ON/OFF All Notes Off Active Sensing System Reset Notes: MIDI channel modes POLY OFF MONO ON OMNI ON Mode 1 Mode 2 OMNI OFF Mode 3 Mode 4 digital piano...
-
Page 25: Function Button Allocation
Function button allocation Function button allocation Select the value to be parameterised using the following table: Tuning Voice Layer Metro.V Reverb Chorus Tempo Treble Bass EQ Trans. A#-1 SP-320... - Page 26 Function button allocation Tuning Voice Layer Metro.V Reverb Chorus Tempo Treble Bass EQ Trans. × × × × × × × × × × × × × × × × × × × × × × × × × × ×...
- Page 27 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × SP-320...
- Page 28 Function button allocation Tuning Voice Layer Metro. Reverb Chorus Tempo Treble Bass EQ Trans. × × × × × × × × × × × × × × × × × × × × × × × × For the fields marked with ‘X’, no value is assigned in the Edit mode. Reset values (factory defaults) Tune Voice...
-
Page 29: Protecting The Environment
Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. SP-320... - Page 30 Notes digital piano...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
