MOFLASH SIGNALLING SB150-1 Series Quick Start Manual

ITEM DESCRIPTION
Tone Frequency Tone
Description
48 800Hz--1000Hz@50Hz Low Freq
Buzz
49 2400Hz--2900Hz@50Hz High Freq
Buzz
50 500Hz--1200Hz Slow
@ 2.5s ↑ 0.5s Whoop
51 500Hz--1200Hz Slow
@ 5.0s ↑ 0.25s Whoop
52 1200Hz--500Hz Reverse
@ 1Hz Sweeping
53 1400Hz--1600Hz Sweeping
@ 1s ↑ 0.5s ↓
54 Simulated bell Fast Shake
55 800Hz/660Hz Tow tone
chime
56 800Hz/1000Hz ISO 8201
Evacuation
57 250Hz--1200Hz Motor
@ 3s ↑, 6s, 3s ↓ Siren-slow
rise
58 250Hz--800Hz Motor
@ 3s ↑, 6s, 3s ↓ Siren-slow
rise
59 250Hz--1400Hz Motor
@ 3s ↑, 6s, 3s ↓ Siren-slow
rise
Tone Selection: The sounder provides 60 tones to be selected for the alarm stage 2 to 4.
Three stages of alarm tones can be preset. Select the tone 6 bit binary codes required
from the tone table and set via the three (3) DIP switches located on the Sounder PCB
(see diagram 3).
Volume Control: The sounder has a volume control to adjust the output volume of the
sounder component. To set the required output volume, adjust the potentiometer on the PCB (see
diagram 3). The potentiometer should be set to fully clockwise position if maximum output
volume is needed.
Potentiometer
DIP Switch SW2 (Stage 3)
Diagram 3
Max dB
Tone Waveform (DB)@1M
Application '+/- 3dB'
Buzz 102
Buzz 101
106
Evacuation, 107
Netherlands
Evacuation, 106
Germany
NFC 48-256 111
=
Bell 100
Int'l 101
Evacuation
Alarm
Int'l 101
Evacuation
Alarm
109
101
107
DIP Switch SW1 (Stage 2)
DIP Switch SW3 (Stage 4)
Moflash part code SB150-1-S00528-Issue 6
SW1,
SW2, SW3
Bit 123456
000011
100011
PLEASE READ PRIOR TO INSTALLATION AND IN CONJUNCTION
010011
WITH THE INSTALLATION & TECHNICAL INFORMATION BOOKLET
110011
001011
101011
011011
111011
000111
100111
010111
110111

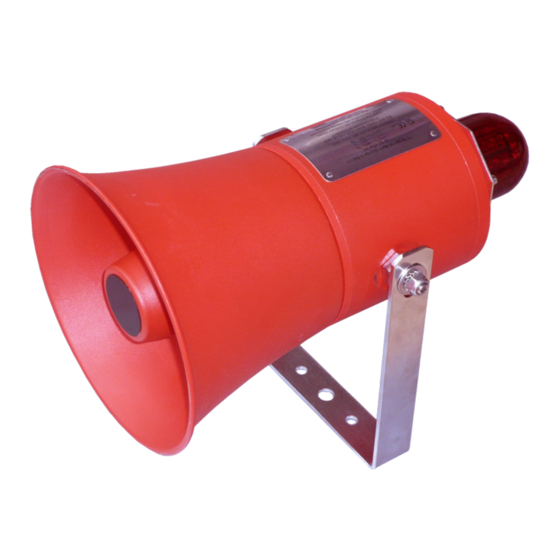

SB150-1 Series - (Explosion Proof Sounders/Beacons)
APPROVED
CONFORMITIES
Website: www.moflash.com

TONE SELECTION SHEET

S00523 (SB150-1) SUPPLIED
AUDIBLE & VISUAL SIGNALLING DEVICES
AND
Email: technical@moflash.co.uk
