MOFLASH SIGNALLING AE100M Series Installation & Technical Information

Alarm Stages

The alarm stages are set as follows:
Stage Apply Power To Termination Connection
1 L & N
S0 to S1 (Factory pre-set)
2 L & N
3 L & N
4 L & N
Refer to Tone Selection Sheet ref: S00600 for Tone Selection and Volume Control.

Sound Pause Option

Briefly close the loop between 'S0 – Dly' for 1 second minimum each time to give the
required pause interval. The sound automatically restarts at the end of the interval.
No of times
1
2
3 10 minutes - Closing the loop again for 1 second during this interval

5.0 End of Line Monitoring

An end of line monitoring diode or an end of line monitoring resistor can be
connected across the 24V+ and 0 terminals. Resistor values for the End of Line will be
determined by the customer with a minimum value of 1.2kΩ

6.0 Maintenance

Little or no maintenance is required during the normal working life of the product. The
Moflash Exd enclosures are resistant to most acids, alkalis and chemicals and have been
designed to withstand severe weather conditions. However it is suggested that to avoid
the possibility of a potential electrostatic charge build up, the exterior of the product is
periodically wiped down with a clean damp cloth. At this point a visual inspection is
recommended to ensure that the product is in good working order and no damage has been
sustained during its normal operation.

7.0 Conditions for Safety Use

i) This apparatus is suitable to be used only in ambient temperature as stated below:
Type Ambient Temp
AE100M -40 C to +70 C
0 0
ii) Other than product manufacturer, painting and surface finishing are not permitted
by the third party.
iii) When used in dusty atmosphere, flameproof cable entry devices or stopping plugs
have to be selected and installed carefully in order to maintain the IP rating (IP66)
of the product.
Tone
- No sound
Set by DIP SW1
S0 to S2 Set by DIP SW2
S0 to S1 & S2 Set by DIP SW3
Pause Interval
1 minute
5 minute
automatically restores the sound.
Moflash part code AE100M-S00599-Issue 2
INSTALLATION &
TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION

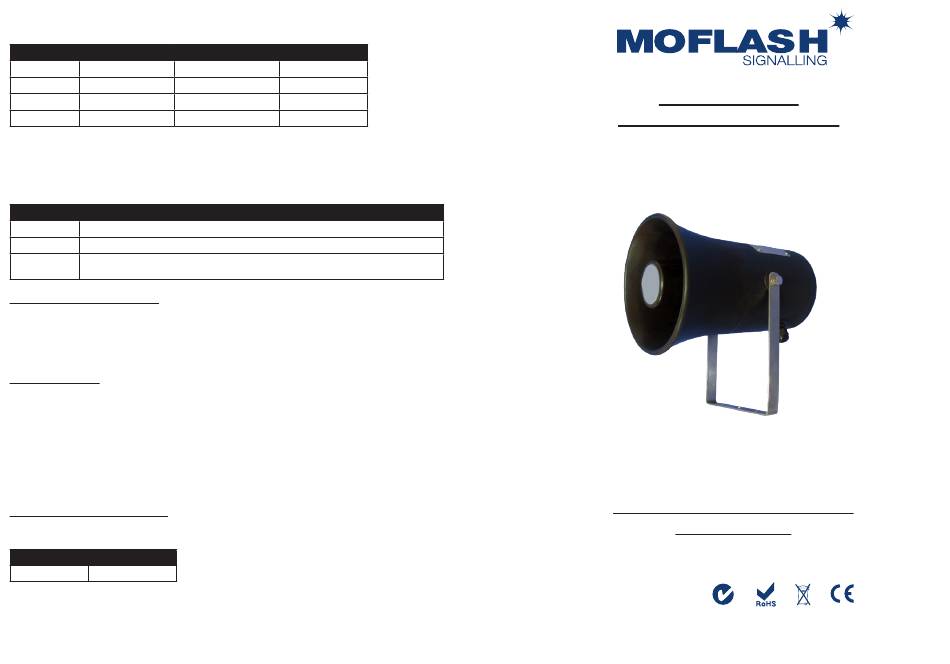

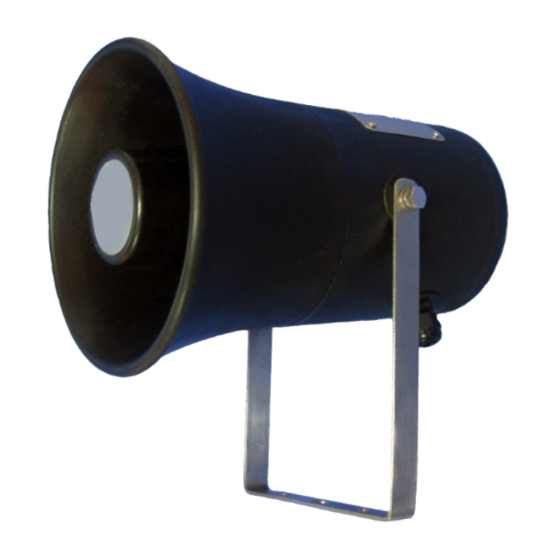

AE100M Series - Weatherproof Sounder
PC - Polycarbonate
AUDIBLE SIGNALLING DEVICE
APPROVED
