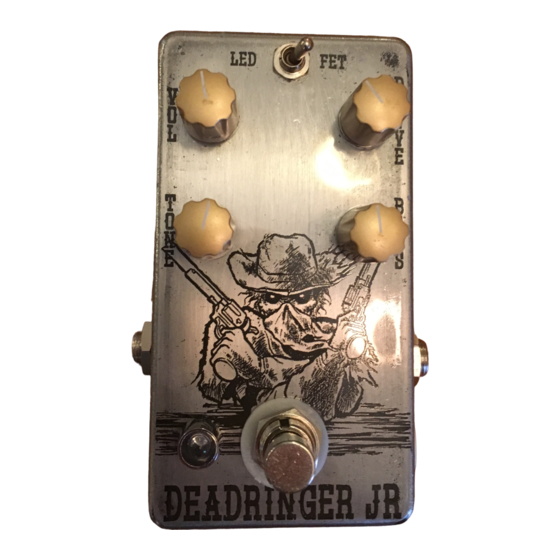

Deadringer Jr.
FX TYPE: Overdrive
(Kinda) Based on the Fulltone Full-Drive
© 2016 madbeanpedals

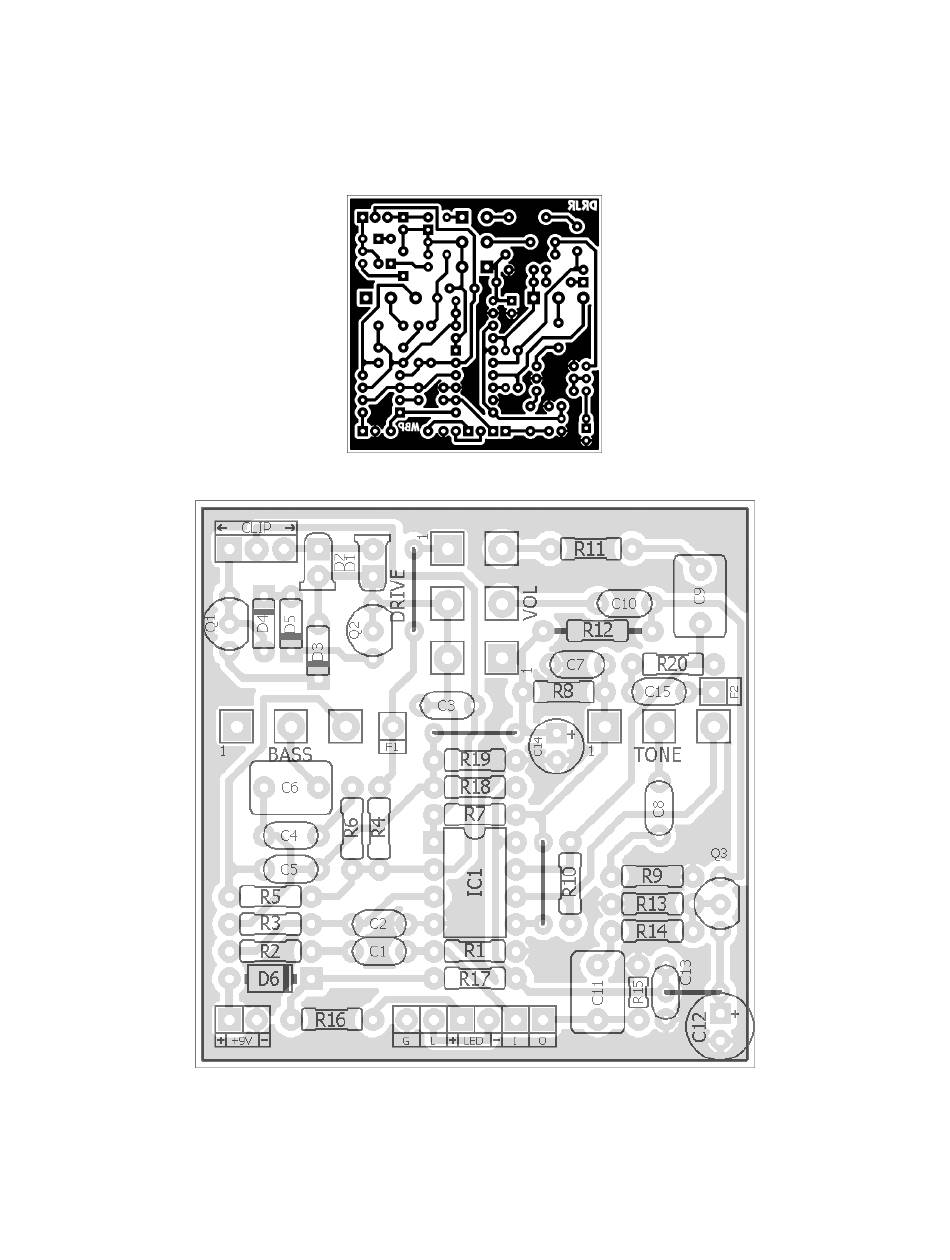

2.05" W x 2.08" H
- note the jumpers -
Etcher's Paradise projects are intended for DIY use only! Commercial pedal manufacturing using
these materials is strictly forbidden.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEADRINGER JR. and is the answer not in the manual?

Questions and answers

Related Manuals for madbeanpedals DEADRINGER JR.

Summary of Contents for madbeanpedals DEADRINGER JR.

  • Page 1 Deadringer Jr. FX TYPE: Overdrive (Kinda) Based on the Fulltone Full-Drive © 2016 madbeanpedals 2.05” W x 2.08” H - note the jumpers - Etcher’s Paradise projects are intended for DIY use only! Commercial pedal manufacturing using these materials is strictly forbidden.
  • Page 2 B.O.M. Resistors Caps Diodes D1, D2 100pF D3 - D5 BAT41 100pF 1N5817 Transistors Q1, Q2 2n7000 MPF102 220n 220n 4558 220R Switch 100n CLIP SPDT Pots 100uF 100kB 100n TONE 20kW 100R 10uF BASS 50kC DRIVE 500kA Note: “Flats” switch is optional and not shown on the BOM. To use the Flats switch, simply connect the F1 and F2 pads to any SPDT or SPST switch.
  • Page 3 Shopping List Value Type Rating Metal / Carbon Film 1/4W 100R Metal / Carbon Film 1/4W 220R Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W...
  • Page 4 1590B Drill Guide 4.43”W x 6.47”H One toggle switch configuration shown (Clipping switch).
