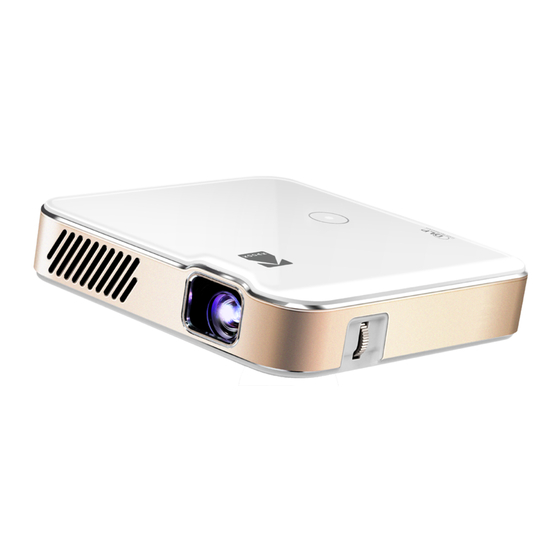

- Page 1 KODAK LUMA 450 PORTABLE FULL HD SMART PROJECTOR User Manual 5"H | 5"W | 1.3"D (12.8 cm | 12.8 cm | 3.4 cm) Please read all directions before using the product and retain this guide for reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION SPECIFICATIONS BOX CONTENTS SAFETY PRECAUTIONS PRODUCT OVERVIEW REMOTE CONTROL OVERVIEW USING YOUR PHONE USING A MOUSE CHARGING THE PROJECTOR USING THE PROJECTOR TO CHARGE DEVICES USING THE AUDIO OUT JACK POWERING THE PROJECTOR ON/OFF PHOTO PLAYBACK CONTROLS VIDEO PLAYBACK CONTROLS ADJUSTING FOCUS ADJUSTING VOLUME CONNECTING TO WIRELESS NETWORKS... -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing the KODAK LUMA 450 PORTABLE FULL HD SMART PROJECTOR. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 4: Product Overview
• Do not place, drop, or submerge the projector in water or any other liquid. • If the projector somehow falls into water despite you taking all of the above precautions, please do not reach into the water to retrieve it. Unplug it immediately and then retrieve it. •... -
Page 5: Remote Control Overview
6. REMOTE CONTROL OVERVIEW You will need to pair the remote control with the projector before using it. Follow these instructions to pair the 2.4G wireless remote with your projector. 1. Within two (2) minutes of turning on the projector, press and hold both the Vol + and Vol – keys for approximately three (3) seconds. -
Page 6: Using Your Phone
7. USING YOUR PHONE For greater ease of use and a more intuitive experience, you can control the projector with the KODAK LUMA Companion App from the Apple App Store® or the Google Play™. Once installed, you can use your phone as a remote to navigate through menus, mirror your screen, easily input login information for apps, and control media volume. -
Page 7: Using A Mouse
8. USING A MOUSE If you’d rather use a mouse instead of the provided remote control, this projector supports USB and wireless mice, as well as USB and wireless keyboards. 1. Left: Confirm 2. Right: Return 3. Wheel: Page up/down 9. -
Page 8: Using The Projector To Charge Devices
10. USING THE PROJECTOR TO CHARGE DEVICES 11. USING THE AUDIO OUT JACK While the projector does include two (2) built-in speakers for regular use, you can also connect either headphones or a portable speaker to the 3.5 mm AUDIO OUT jack as shown in the below image. NOTE: External speakers can also be connected to the projector via Bluetooth. -
Page 9: Photo Playback Controls
13. PHOTO PLAYBACK CONTROLS To access your photos, from the home screen, navigate to Source > File Browser. From there you can view individual photos or a slideshow of all photos stored either on your removable storage, or on the projector itself (if you’ve downloaded anything). -
Page 10: Adjusting Volume
16. ADJUSTING VOLUME To adjust the device volume during playback, use the + and - buttons on the remote control. 17. CONNECTING TO WIRELESS NETWORKS 1. From the home screen, select Settings. 2. From the Settings menu, select Wi-Fi. 3. Select the correct network from the list and use the arrows on top of the projector, your phone, or the remote to navigate the keyboard and enter the password. -
Page 11: Adjusting Brightness
19. ADJUSTING BRIGHTNESS If you’d like to adjust the brightness of your projector to conserve electricity and energy usage, follow these steps: 1. From the home screen, select Settings. 2. From the Settings menu, select Brightness. 3. Choose between three settings of brightness: low, medium, and high. 20. -
Page 12: Adjusting Zoom
2. From the Settings menu, select Projector Mode. 3. Select the image that most closely resembles the positioning of your projector and it will adjust the display accordingly. 21. ADJUSTING ZOOM 1. From the home screen, select Settings. 2. From the Settings menu, select Zoom. 3. -
Page 13: Setting Date And Time
To adjust keystone manually: 1. Select the Advanced option. 2. Adjust the four sides correction. 3. Back out of the page to save your changed settings. 23. SETTING DATE AND TIME Your projector should automatically update to the correct date and time once you connect to a wireless network. -
Page 14: Connecting External Devices
25. CONNECTING EXTERNAL DEVICES A. USB Drives To access photos or videos stored on any USB drive, simply insert the drive into the corresponding port on the side. The projector will read the files directly from the drive. You can access them from the home screen by selecting Source >... -
Page 15: Screen Mirroring (Android/Windows - Miracast®)
26. SCREEN MIRRORING (ANDROID/WINDOWS - MIRACAST®) 1. From the projector home screen, select “Source,” select “Screen Mirroring,” and then select “Miracast®”. The name of the projector will be displayed on the screen so that you can accurately identify it when attempting to connect. 2. -
Page 16: Pre-Loaded Apps
All Apps option on the home screen. NOTE: Some of your favorite apps may look different when installed, due to the fact that the LUMA 450 utilizes the TV versions of these applications to accommodate the screen size and navigation. -
Page 17: Updating Your Software
32. WARRANTY LIMITED WARRANTY TO ORIGINAL CONSUMER This KODAK LUMA 450 Portable Full HD Smart Projector (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows:... - Page 18 (g) Consumable parts, such as batteries, fuses and bulbs; (h) Cosmetic damage; or (i) If any KODAK LUMA 450 Portable Full HD Smart Projector serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country.
- Page 19 This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies. Kodak does NOT manufacture this Product or provide any Warranty or support.
- Page 20 The Kodak trademark, logo, and trade dress are used under license from Eastman Kodak Company. Android is a trademark of Google, LLC. Bluetooth is a trademark of Bluetooth SIG, Inc. USA. DLP® and the DLP logo are registered trademarks of Texas Instruments.
