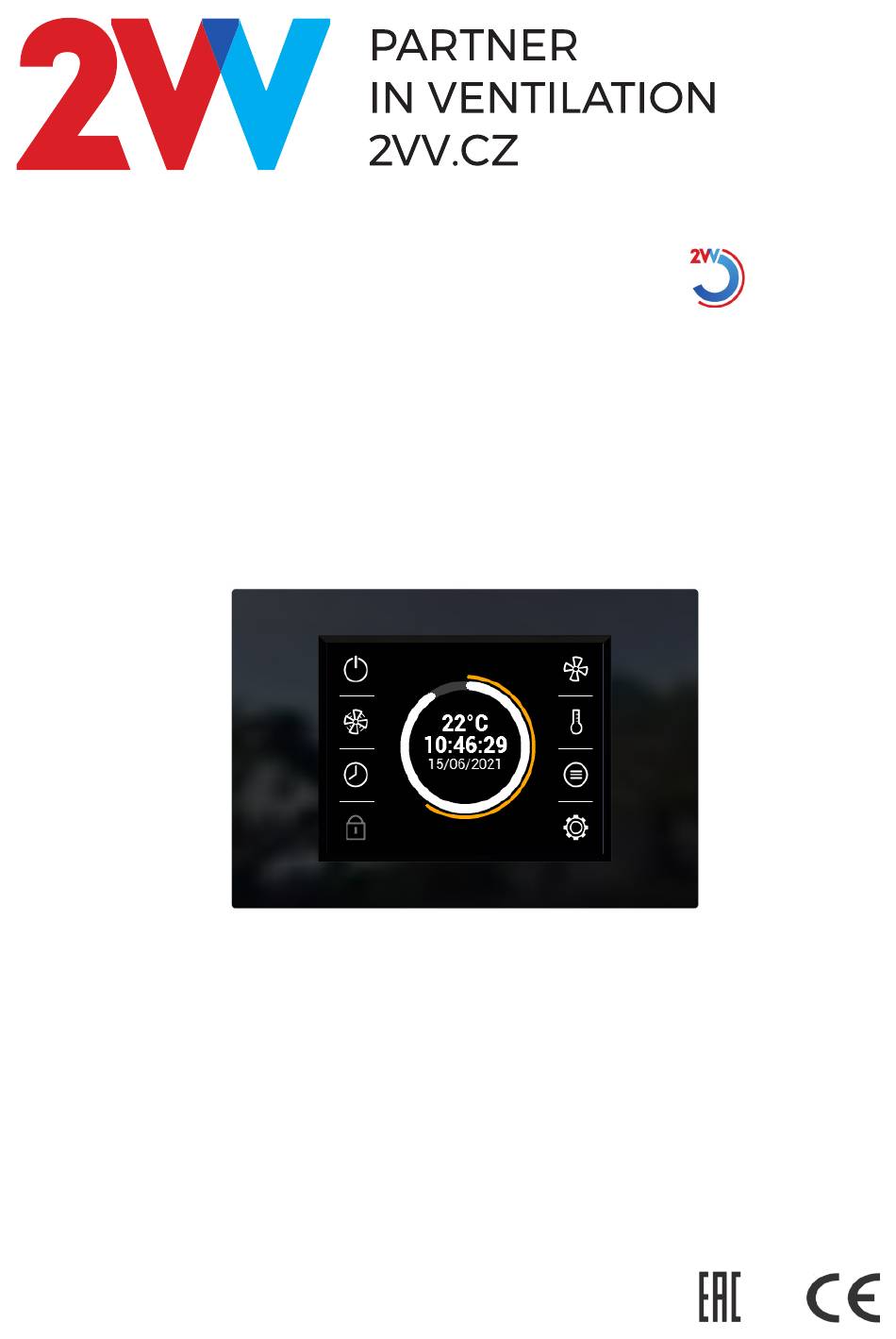

AirGENIO
Comfort EC
OPERATION AND HANDLING

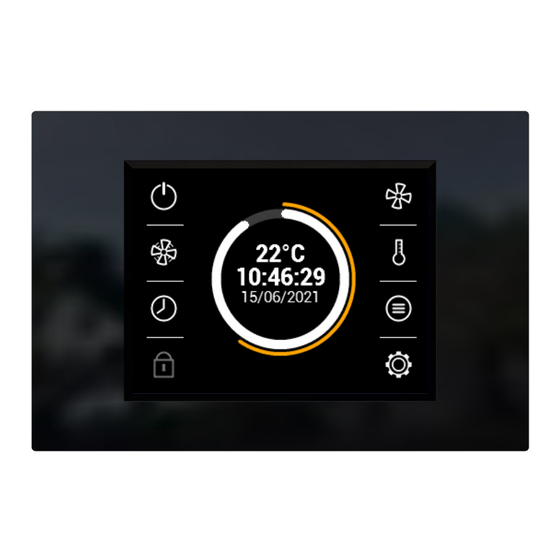

AirGENIO Control System
Package contents
Qty
Package contents
AirGENIO-MANUAL
SD-CARD
AirGENIO-CONN.CABLE-UTP
AirGENIO-PCB-MODULE-A
AirGENIO-TEMP.SENSOR-3,2M
AirGENIO-PCB-MODULE-B
AirGENIO-TEMP.SENSOR-10M
AirGENIO-PCB-MODULE-G
AirGENIO-PCB-MODULE-GL
AirGENIO-I-BUS-300MM
AirGENIO-PCB-MODULE-K
AirGENIO-PCB-SUPPORT
NOTE
EN
Qty
Package contents
Qty
AirGENIO-PWR-SOURCE-12VDC
AirGENIO-PWR-SOURCE-24VCD
AirGENIO-CONTROL-PANEL
AirGENIO-PRESSURE-LP
AirGENIO-PRESSURE-HP
AirGENIO-PRESSURE-VHP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirGENIO and is the answer not in the manual?

Questions and answers

Related Manuals for 2VV AirGENIO

Summary of Contents for 2VV AirGENIO

  • Page 1 AirGENIO Comfort EC AirGENIO Control System Package contents Package contents Package contents AirGENIO-MANUAL SD-CARD AirGENIO-PWR-SOURCE-12VDC AirGENIO-CONN.CABLE-UTP AirGENIO-PWR-SOURCE-24VCD AirGENIO-PCB-MODULE-A AirGENIO-TEMP.SENSOR-3,2M AirGENIO-CONTROL-PANEL AirGENIO-PCB-MODULE-B AirGENIO-TEMP.SENSOR-10M AirGENIO-PRESSURE-LP AirGENIO-PCB-MODULE-G AirGENIO-PCB-MODULE-GL AirGENIO-I-BUS-300MM AirGENIO-PRESSURE-HP AirGENIO-PCB-MODULE-K AirGENIO-PCB-SUPPORT AirGENIO-PRESSURE-VHP NOTE OPERATION AND HANDLING...
  • Page 2 Manual start up of Door mode Timer Password lock Ventilation mode settings Required temperature settings Detailed informationof ventilation status Settings Display of current temperature, ventilation rate, CO2 comcentration, ventilation mode and date 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 3: Information Icons

    Return water temperature Blocked heating indication (summer mode) Information about the type of unit Green color = active sensor 10. Fan speed 11. Heating power 12. Sub units overview 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 4: Settings Menu

    2. Display required air flow (20% steps) 3. Reduce or increase opening’s air flow (with closed doors) REQUIRED TEMPERATURE SETTINGS WITH CLOSED DOORS Actual temperature at selected sensor in menu 09 2. Required output Manual mode = % Automatic mode = °C Reduce or increase required temperature 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 5 Touch a day to set ventilation modes Touch to set individual intervals of ventilation (time ON/OFF, vent. mode, vent. level, temperature) Touch for copying time interval Year mode Add a time mode 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 6: Display Settings

    Delete time interval Back When the time interval ends, the unit goes into stand-by • mode. DISPLAY SETTINGS Display brightness in active mode Display brightness in Standby mode 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 7: Language Settings

    LANGUAGE SETTINGS TIME AND DATE SETTINGS Scroll up and down on the numbers to set the date and time 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 8: Service Menu

    MENU can lead to improper operation of the unit. If you are uncertain, first contact your supplier for more information. 1616 Scroll up/down to select menu then tap on selected menu Mode MANUAL or AUTOMAT control Activate/deactivate automatic control of fan speed ac- cording to temperature 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 9 Ad 3) - Thermostat (NO/NC) Filter timer Use this menu to set the period (in motor hours) after which you will be reminded to replace the filters or reset to timer. Enable filter timer Set the time after which a notice will appear in the main screen. 1000h ~ 5000h Current timer status RESET button (use after replacing filters) 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 10 Inlet – Temperature sensor at the inlet (before the exchanger) Room – Room temperature sensor Thermostat – Room thermostat (ON/OFF) Room BMS – Room temperature recieved from building management system Automatic mode. Manual mode. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 11 This setting may be carried out solely fo- llowing consultation with the manufacturer. Modbus RTU The MODBUS menu is used to set the Modbus communica- tion. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 12 Full - Does not enable any settings without entering password User mode - Enables the unit to be operated per the following screen: After entering the password, the unit can be fully operated and set 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 13 In this menu, the reduction of temperature may be set only by five degrees at the set time compared to the set (required) temperature. Setting start time for reduced temperature Set reduced temperature period start (range -1 ~ -5°C) Set reduced temperature period end Enable / disable function 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 14 Time interval overrun mode setting Air curtain operation time at minimum fanr speed from door closing Air curtain operation time at maximal fan speed from door closing 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 15 (Auto speed control), depending on the number of open doors it optimises the period in which the shutter is in operation, even when doors are closed. conditions for activation Selflearning mode. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 16 If the air temperature is lower than the set one, the frost protection will be activated If the water temperature is lower than the set one, the frost protection will be activated 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 17 Not allowed = The SLAVE regulators are turned on/ off simultaneously Allowed = The SLAVE regulators can be turned on/ off individually form the main screen Slave address setting: SLAVE UNIT SLAVE UNIT ADDRESS ADDRESS 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 18 Exceeding limits in any fan power setting is signalled when the setting ele- ment turns red with the text “overruns”. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 19 Software reset Power reset 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 20 Terminals must be set if multiple panels are to be connected. They are found in the main electronics and the controller: Wiring connection Terminal settings 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 21 Factory reset Pressing FACTORY RESET resets the unit to its factory settings does not change - ventilation mode - HW settings - temperature settings - Modbus settings 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...

  • Page 22: Troubleshooting

    The heating switches Unit The heater overheats The heater overheats due to insufficient air flow. Check operational that the ventilators are in good order and that the air off automatically but not supply is not disrupted. heating 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
  • Page 23 IF YOU ARE UNABLE TO REPAIR THE UNIT If you were unable to solve a problem, contact the supplier or the representative of 2VV. Warranty and post-warranty service are provided by the supplier or an authorised service included in the list available at the supplier’s.
  • Page 24 In case of any requests or inquiries, contact our sales or technical de- partment. CONTACT Address 2VV, s.r.o., Fáblovka 568, 533 52 Pardubice, Czech Republic Website: http://www.2vv.cz/ 2VV. Creating innovative solutions for you and your business since 1995. ver.1 19-07-21...
