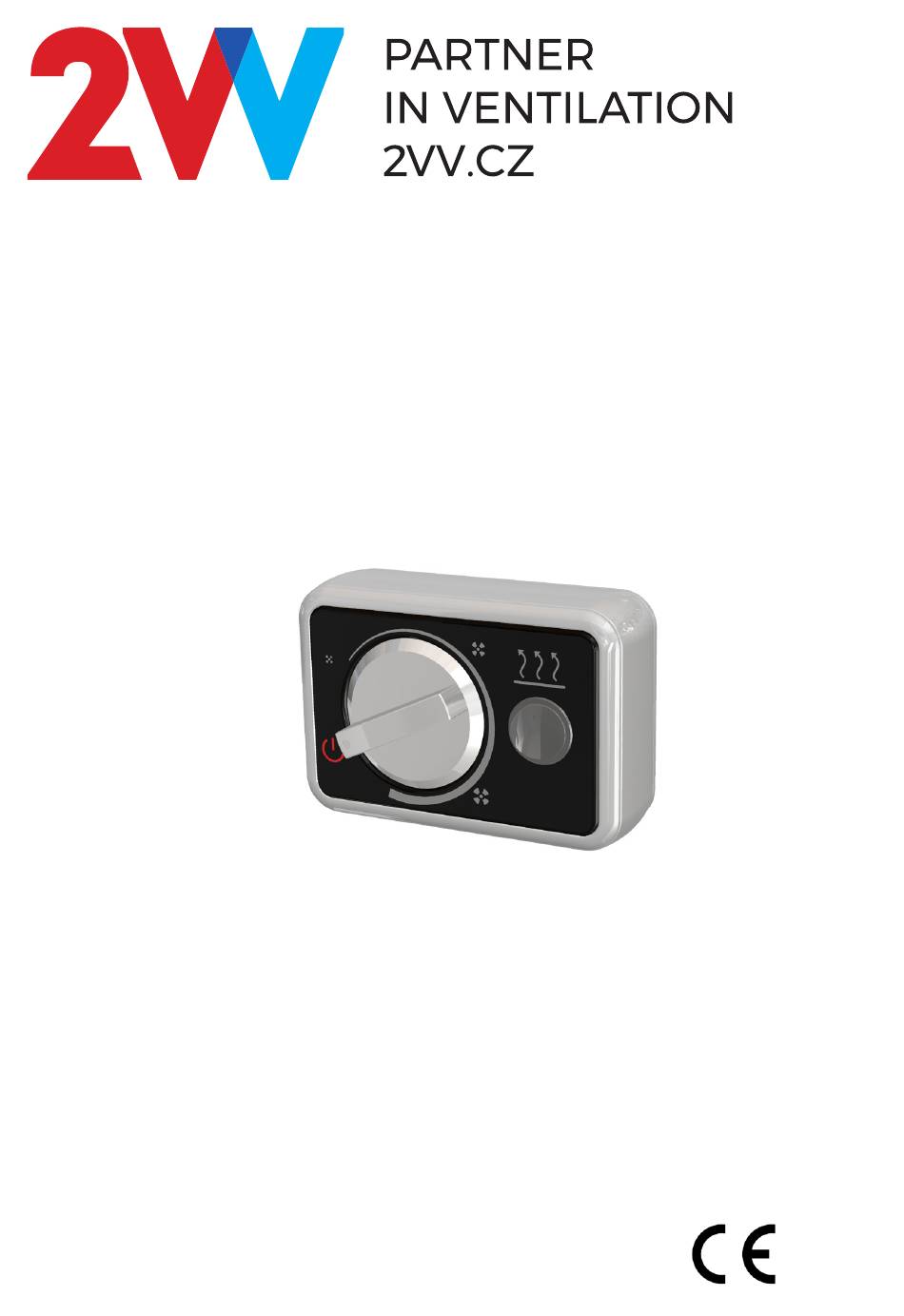

  • Page 1 AirGENIO BASIC EC controller Installation and operation instructions...

  • Page 3: About The Manual

    INFORMATION – this symbol draws attention to useful information about the device This manual was written to provide necessary information about the AirGENIO BASIC EC controller concerning its oper- ation, maintenance and service. Authorized persons must be thoroughly familiar with the contents of the manual before beginning any work with the device.

  • Page 4: Device Description

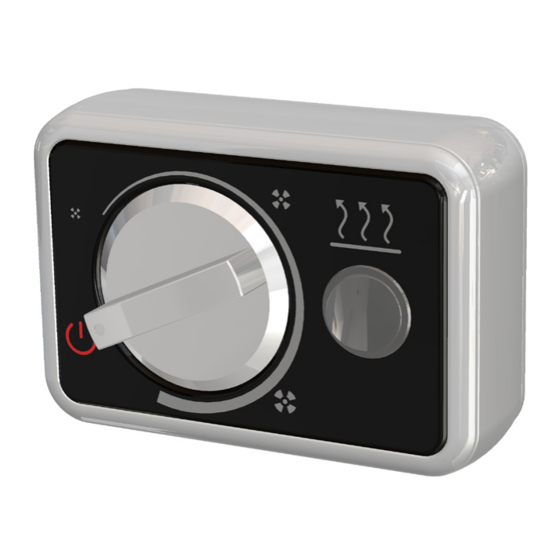

    INTRODUCTION AirGENIO BASIC EC controller is designed to control the air curtains and heating units with electric or water coils, using manual heating control and manual stepless fan speed control. Controller allows to connect up to two external switches (one to affecting the heat and one to affecting the fan speed) Ambient version of controller doesn´t allows to control heating and doesn´t support connection of room thermostat.

  • Page 5: Installation

    Middle fan speed, heating enabled (Heat level 1 and 2 enable) High fan speed, heating enabled (Heat level 1 and 2 enable) Heat switch (Water heater = Heat level 1, Electric heater = Heat level 1 and 2) 2VV. Creating innovative solutions for you and your business since 1995.

  • Page 6: Control Description

    NOTE: Terminals S1, S, S2, RT, COM, H1, H2 not used for ambient version of controller. Ambient version supports only fan control and connection of external contact on terminals DOOR. (Door switch, external control switch,...) 2VV. Creating innovative solutions for you and your business since 1995.
  • Page 7 WARINING: Length and execution of fan speed control signal cabling has influence of voltage drop of the signal 0-10V! Measure voltage of the control signal, on fan speed control input on the controlled fan to be sure that fan starts before heating outputs are activated. 2VV. Creating innovative solutions for you and your business since 1995.

  • Page 8: Wiring Examples

    WIRING EXAMPLES BASIC EC (AGBA1-M-ECx-xx-E2) with two EC fans and electric heater with two steps of heating: BASIC EC (AGBA1-M-ECx-xx-V1) with two EC fans and water heater: 2VV. Creating innovative solutions for you and your business since 1995.
  • Page 9 BASIC EC (AGBA1-M-ECx-xx-V1) with two EC fans - Electric heater with one step: BASIC EC (AGBA1-M-ECx-xx-S0) with two EC fans: 2VV. Creating innovative solutions for you and your business since 1995.

  • Page 10: Rules For Safe Operation

    Take any non-reusable parts of the air curtain to a controlled waste dump. 2VV, s.r.o. +420 466 741 811 Fáblovka 568, 2vv@2vv.cz 533 52 Pardubice, www.2vv.cz Czech Republic 2VV. Creating innovative solutions for you and your business since 1995.
