Lane
HOME FURNISHINGS
ASSEMBLY INSTRUCTIONS
5087-54X DINING TABLE PART LIST
PART
DRAWING
0
A
B
�
United Wood Products, Inc. Customer Service Contact Information:
Toll Free Phone Number: 1-844-771-2727
Email: consumercare@ufifurniture.com
Website: www .lanefurniture.com
PLE ASE N OTE: With use, screw may become loose & must be tightened periodically.
DESCRIPTION
QTY
1
TABLETOP
4
LEGS

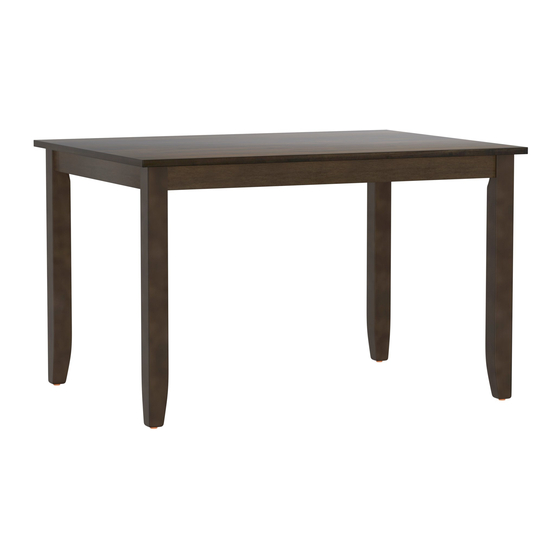

COMPLETED DINING TABLE ASSEMBLY
Page 1 of 2
PART
DRAWING
H1
BOLT (05/16" *65 MM)
@)-
H2
SPRING WASHER (05/16")
�
H3
@
FLATWASHER (05/16")
H4
ALLEN KEY (M4)
�
ITEM # 5087-54X
DINING TABLE
DESCRIPTION
MADE IN VIET NAM
5087-54X DINING TABLE
QTY
8
8
8
1
