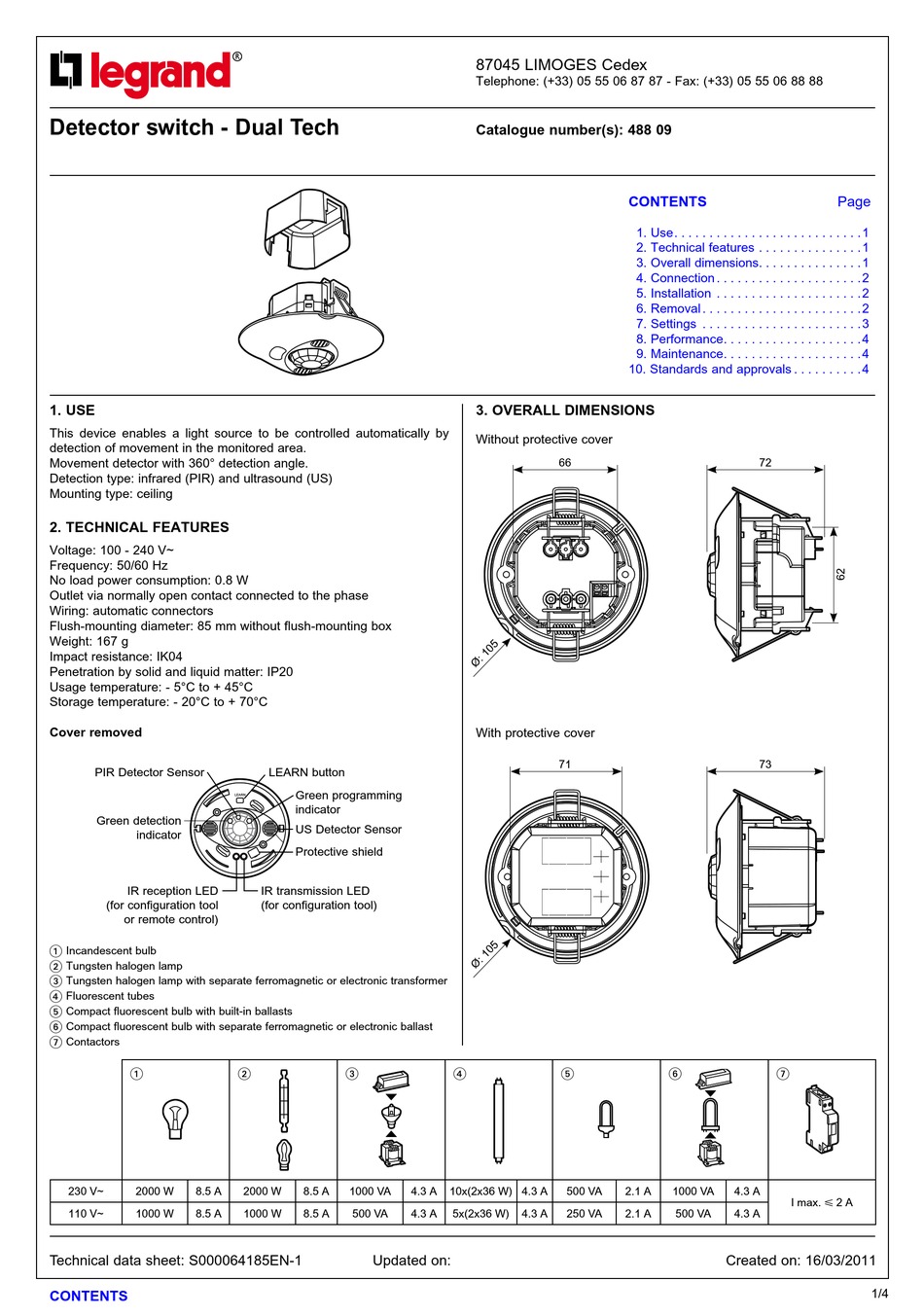

LEGRAND 488 09 Quick Start Manual

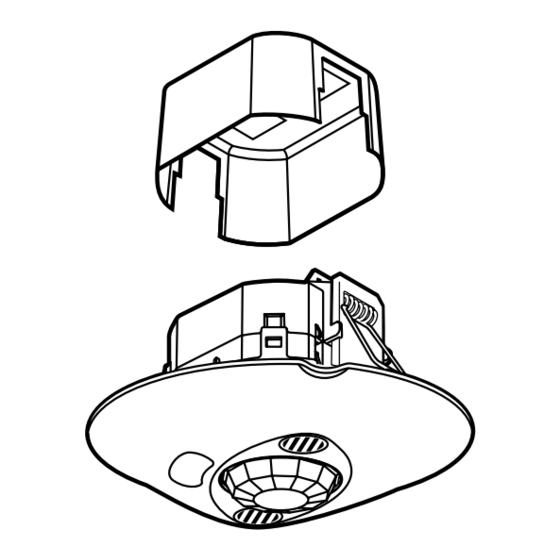

Detector switch - Dual Tech
1. USE
This device enables a light source to be controlled automatically by
detection of movement in the monitored area.
Movement detector with 360° detection angle.
Detection type: infrared (PIR) and ultrasound (US)
Mounting type: ceiling
2. TECHNICAL FEATURES
Voltage: 100 - 240 V~
Frequency: 50/60 Hz
No load power consumption: 0.8 W
Outlet via normally open contact connected to the phase
Wiring: automatic connectors
Flush-mounting diameter: 85 mm without flush-mounting box
Weight: 167 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
Cover removed
PIR Detector Sensor
Green detection
indicator
IR reception LED
(for configuration tool
or remote control)
1
Incandescent bulb
2
Tungsten halogen lamp
3 Tungsten halogen lamp with separate ferromagnetic or electronic transformer
4
Fluorescent tubes
5
Compact fluorescent bulb with built-in ballasts
6
Compact fluorescent bulb with separate ferromagnetic or electronic ballast
7
Contactors
1
230 V~ 2000 W 8.5 A
110 V~ 1000 W 8.5 A
Technical data sheet: S000064185EN-1
CONTENTS
LEARN button
Green programming
indicator
US Detector Sensor
Protective shield
IR transmission LED
(for configuration tool)
2 3
2000 W 8.5 A 1000 VA 4.3 A
1000 W 8.5 A 500 VA 4.3 A
Updated on:
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 488 09
3. OVERALL DIMENSIONS
Without protective cover
66
With protective cover
71
4 5
10x(2x36 W) 4.3 A 500 VA
5x(2x36 W) 4.3 A 250 VA
CONTENTS
1. Use. . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . .2
6. Removal . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . .3
8. Performance. . . . . . . . . . . . . . . . . . . .4
9. Maintenance. . . . . . . . . . . . . . . . . . . .4
10. Standards and approvals . . . . . . . . . .4
72
73
6 7
2.1 A 1000 VA 4.3 A
I max.  2 A
2.1 A 500 VA 4.3 A
Created on: 16/03/2011
Page
1/4
