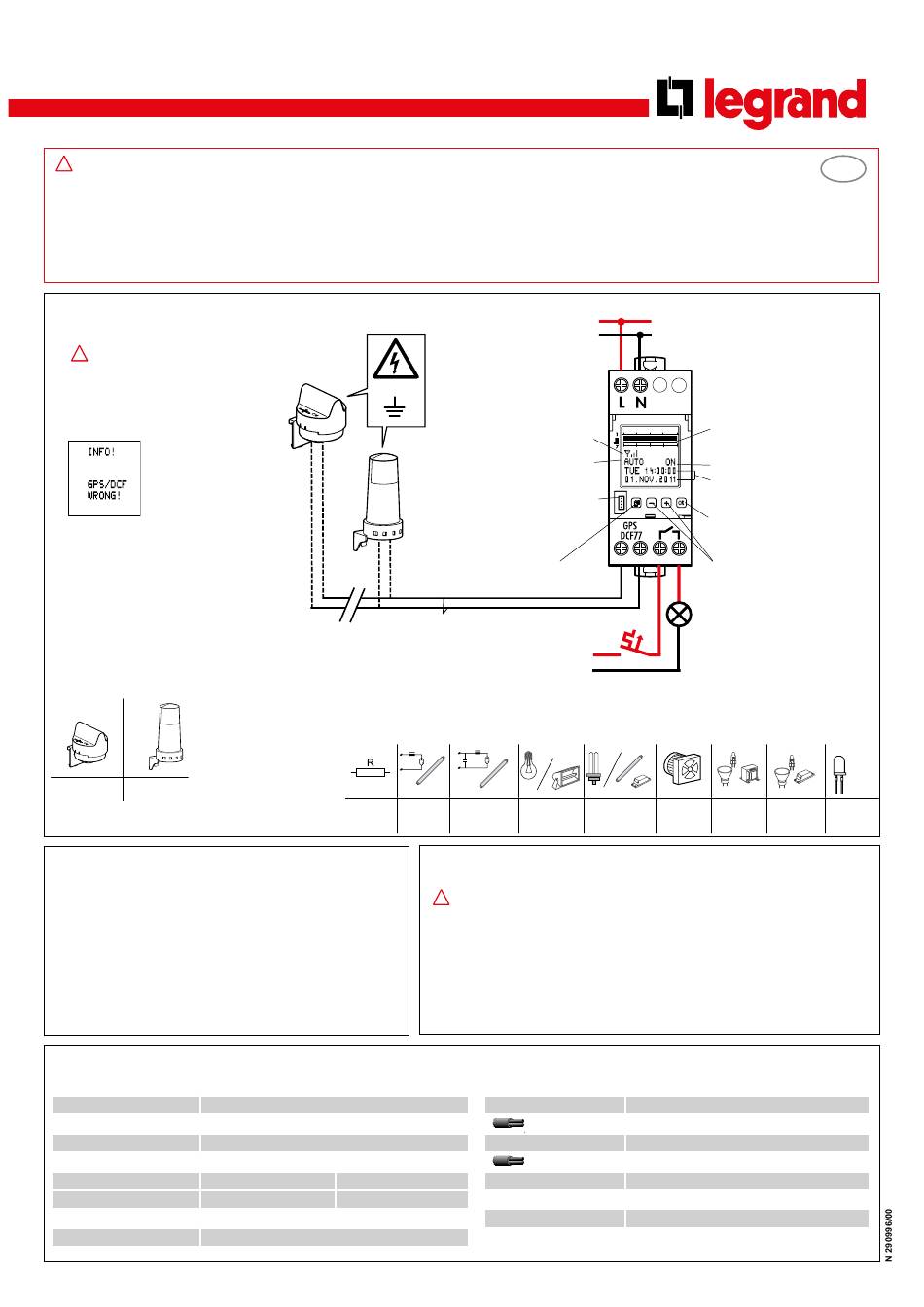

Annual time switch
3
AlphaRex
DY21 GPS/DCF
4 127 04
!
Safety notes
This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to risk
of electric shock or fire. Before carrying out the installation read the instructions and take account of the product's specific mounting location. Do not open
up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired
exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement
and guarantees. Use only Legrand brand accessories.
The device contains a LiMnO
primary cell. When the product reaches the end of its life, this cell must be correctly removed and disposed of in accordance with
2
national legislation and the requirements of environmental protection.
!
Dangerous electrical voltage in the
antennas (230 V to ground pontential).
Before opening the housing the device
must absolutely be disconnected from
mains.
Check polarity
Antenna DCF77, reference 4 127 06
or antenna GPS, reference 4 127 07
4 127 06
4 127 07
Operating principle: Type 1.B. S. T.
IEC/EN 60730-1, IEC/EN 60730-2-7
Operation in a normal environment
Montage: in distribution panel, Degree of contamination: 2
Switch output, potential-free
Rated impulse voltage: 4 kV
Technical data
Supply voltage:
230 V 50/60 Hz
Power consumption:
approx. 1,3 W
Relay outputs:
1 make contact 16 A 250 V~µ cos ϕ = 1
Accuracy:
~ 0,1 s/day
single-strand
Wire cross-sections:
1,5...4 mm
Programs
3 program types x 28 programs
Shortest switching step
1 minute
230 V
Select menu, back to main menu,
Hold down > 1s = operating display
max. 50 m
must be
ordered separately
4000 W
2000 W
General information
!
erence 4 127 06 or 4 127 07 otherwise there will be danger of electric shock.
After applying the supply voltage, the time switch starts automatically with the
last selected function. The relay position is set by the current program.
• The device should not be used on isolated low voltage.
• Battery backup
- Backlighting not active
- Data key READ/WRITE only via the menu
multi-strand
1,5...2,5 mm
2
2
L
Supply voltage
N
0
Antenna
Function
Receptacle
for data key
+ -
max 16 A
max. 250 V AC L
N
c
+
600 W
2000 W
1000 W
max. 70 µF
It should be noted that this device may only used with the antenna type ref-
Time signal DCF77
Receipt of GPS signal
Local coordinates:
Battery reserve:
Storage temperature:
Operating temperature:
Overview of programmed
switching times for the week.
6
12
16
24
Resolution 0.5h
Switch status
Day, Time, Date
Confirm selection or load
parameters
Select menu options or set
parameters
+
+
2000 W
2000 W
2000 W
Antenna 4 127 06
50 m
Antenna 4 127 07
50 m
Resolution 1°/ 1' in EXPERT-Mode
5 years
- 20 °C to +60 °C
-20 °C to +55 °C
®
GB
LED
1000 W
