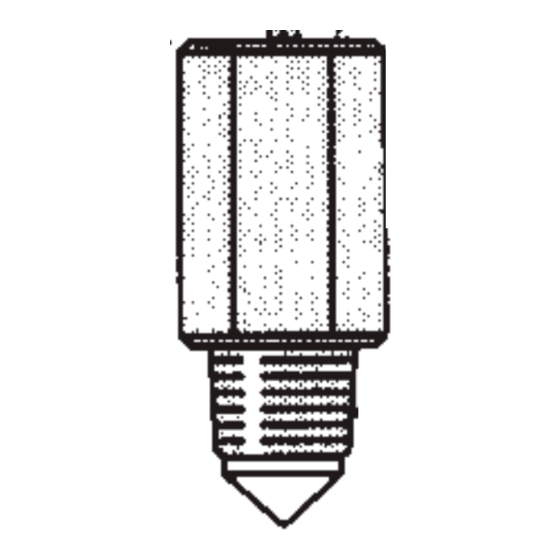

Electro-Optic Level Switch
ELS-1100 HT Series
Instruction Bulletin No. 152854
®
U.L. File E108913

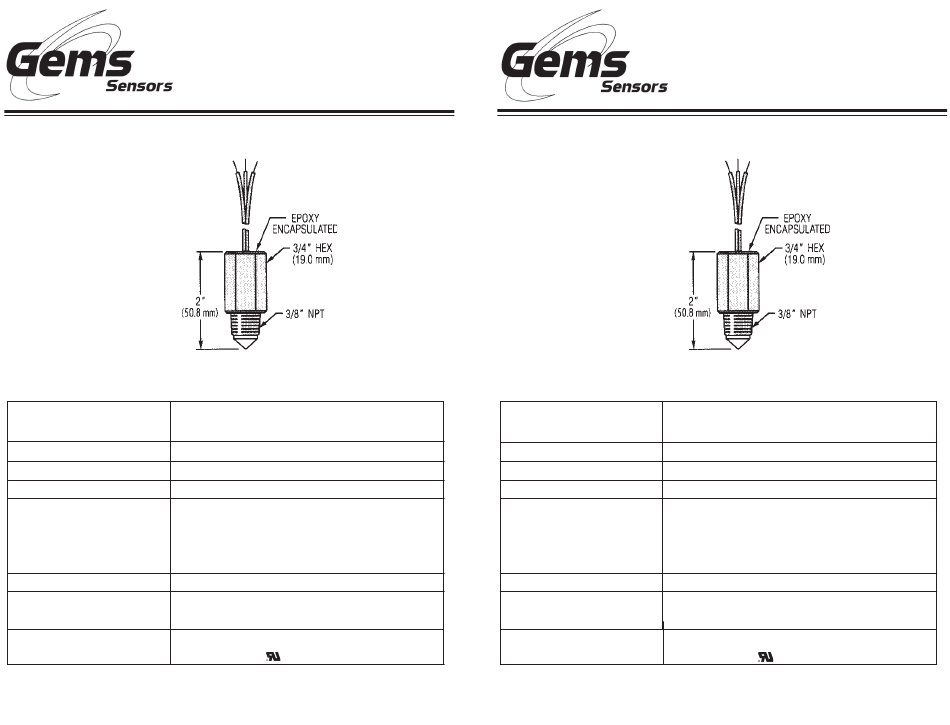

Dimensional Data . . .
Specifications . . .
Materials
Housing and Prism
Isoplast
Operating Pressure
0 to 150 PSI, Maximum
Operating Temperature*
-40°F to +212°F (-40°C to +100°C)
Current Consumption
45 mA, Approximately
Output
TTL/CMOS Compatible. Transistor Output
with 10K Pull-Up Resistor May Sink 18 mA.
12 VDC input power units switch a maximum
5 VDC on output.
Repeatability
±1 mm
Electrical Termination
Lead Wires, 22 AWG, Polymeric, 12" to 14"
Extended
Approvals
C.E. EN61326
Units Labeled
*
These switches are not for use in freezing liquids.
Electro-Optic Level Switch
ELS-1100 HT Series
Instruction Bulletin No. 152854
®
U.L. File E108913
Advertisement
Related Manuals for Gems ELS-1100 HT Series
Summary of Contents for Gems ELS-1100 HT Series
- Page 1 Electro-Optic Level Switch Electro-Optic Level Switch ELS-1100 HT Series ELS-1100 HT Series Instruction Bulletin No. 152854 Instruction Bulletin No. 152854 Dimensional Data . . . Dimensional Data . . . Specifications . . . Specifications . . . Materials Materials ®...
- Page 2 Installation . . . Installation . . . 1. Use Teflon (TFE) thread tape or Permatex #80725 plastic pipe sealant 1. Use Teflon (TFE) thread tape or Permatex #80725 plastic pipe sealant to seal thread. Caution: Pipe sealant must not come in contact to seal thread.
