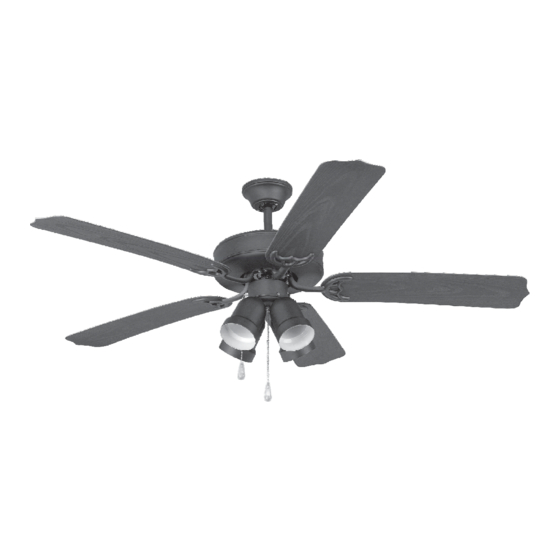

- Page 1 Owner’s Manual SHARON Net weight KGS. LBS. WARNING : READ AND SAVE THESE INSTRUCTIONS. Follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE FOLLOWING: 1. Use this unit only in manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in warranty. 2.
- Page 3 1.Unpack and inspect fan carefully to be certain all contents are included. Mounting Bracket Hardware bag Blade holder Spring Washer 2 pcs Lock Washer 2 pcs Canopy Fan assembly Wood Screw 2 pcs Pull Chain Knob 2 pcs Blade Balance Kit 1 pc Yoke cover Blade Screw...
-
Page 4: Canopy Installation
5a-2. Hanging the fan Mounting Bracket Ball Notch Carefully lift fan assembly onto mounting bracket. Lift fan assembly onto mounting bracket. Rotate fan so that the notch on the ball engages the ridge in the mounting bracket. 5b-1. Making wire connection ( for 110~120VAC/60Hz ) Follow diagram below and make sure that all exposed wires are secured inside wire nuts. - Page 5 8. Blade assembly to motor 1.Remove 3pcs of motor stoppers. Motor stopper 2.Attach the blade assembly to motor using Motor motor screws from hardware bag. NOTE: Do not bend blade or blade arm to Blade Assembly prevent wobble. Motor screw 9.
