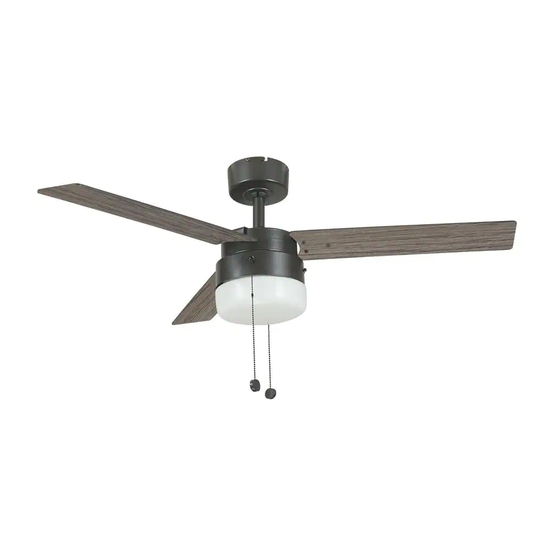

- Page 1 Model# RDB9144-BN, RDB9144-ORB, RDB9144-MW USN# 315194541, 315194540, 315194542 USE AND CARE GUIDE MONTGOMERY II 44 IN. CEILING FAN An electronic copy of this user manual can also be obtained online at www.homedepotpro.com...
-
Page 2: Safety Information
Table of Contents Safety Information 1. To reduce the risk of electrical shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. To reduce the risk of fire, electrical shock or support of 15.9 kg (35 lbs.) or less. Use mounting screws only UL-Listed outlet boxes marked "FOR FAN SUPPORT". -
Page 3: Warranty
Warranty The retailer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of fifteen years after the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. - Page 4 Pre-installation (continued) Shatter resistant shade 9-watt E-26 (LED, A19) bulb RDB9144-MW/BN/ORB...
-
Page 5: Installation
Installation To reduce the risk of fire, electrical shock, or fan support of 15.9 kg (35 lbs.) or less and use mounting If there is not an existing UL-Listed metal mounting box present, read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. - Page 6 Installation (continued) REMEMBER to turn off the power at the breaker box. Follow the steps below to hang your fan properly. Pass the 120-volt supply wires through the center hole in Before making any electrical connections, hook one of the screw holes on the ceiling canopy (B) with the hook on the the mounting bracket (A) as shown in Figure 6.
- Page 7 Installation (continued) If you choose to install another light kit, it must be a UL-Listed light kit accessory marked suitable for use with this fan. Follow the instruction packed with the light kit. If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
- Page 8 Installation (continued) Installation (continued) When the electrical connections are established, take the fan off the hook. Slide the ceiling canopy (B) up the downrod (H), making sure the ball joint groove engages with the ceiling canopy entry hole tab. Mount the blade holders (D) to the fan blades (E) using the Slide the bayonet slots on the ceiling canopy (B) into square neck screws (AA), hex nuts (CC), spring washers (EE) the screws at either end of the mounting bracket (A)
- Page 9 Installation (continued) All blades are grouped by weight. Because natural wood varies in To reduce the risk of electrical shock density, the fan may wobble even though the blades match in weight. The following procedure should correct most fan wobble. Check for wobble after each step.
-
Page 10: Operation
Operation The slide switch controls the direction the fan rotates: forward (switch left) or reverse (switch right).* RDB9144-MW/BN/ORB... -
Page 11: Care And Cleaning
Care and Cleaning Here are some suggestions to help you maintain your fan: Some connections may become loose because of the fan's natural movement. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove the fan from the ceiling.) Clean your fan periodically to help maintain its new appearance over the years. - Page 12 An electronic copy of this user manual can also be obtained online at www.homedepotpro.com Retain this manual for future use.
