SUBASSEMBLY S730.01
6610.0016
1/4" MIC
3900.0054
O-RING
M730.13-IS
CASE TOP
M730.05-IS
INTERNAL FRAME
A730.01-IS
MAIN BOARD
M730.06-IS
GASKET
(BLUE)
2X 6075.0005
MYLAR TAPE
4477.0006
VENT MEMBRANE
M730.02-IS
CASE BOTTOM
L730.01
INFORMATION LABEL
SUBASSEMBLY S730.04-IS
6610.0016
1/4" MIC
3900.0054
L730.04 730 SCREEN
O-RING
PROTECTOR
M730.13-IS
CASE TOP
M730.05-IS
INTERNAL FRAME
1895.0026
LCD
A730.12-IS
MAIN BOARD
M730.40-IS
2X 5345.0027
GASKET
#2 T-F SCREW
(ORANGE)
4X 6070.0031
FOAM
BAT022
NiMH BATTERY PACK
5345.0028
#0 T-F SCREW
S730.02
Li-ION BATTERY PACK
2X 6075.0005
MYLAR TAPE
2X 6070.0030
FOAM
4477.0006
VENT MEMBRANE
1097.0045
QI COIL
M730.02-IS
CASE BOTTOM
3X 5290.0234
2-56 9/16" SCREW
L730.03-IS
IS INFORMATION LABEL
L730.02
CALIBRATION LABEL
REV.
A
ADDED STEPS OF ASSEMBLY FOR
B
FIRMWARE AND BOARD CLEANUP
CHANGE TO SERIALIZE INSTRUCTIONS;
C
L730.06-IS IS 730 SCREEN
IS ASSEMBLY INSTRUCTIONS
PROTECTOR
This is a Related Drawing, relating to the Scheduled Drawing S730.04-IS-SD, which has
been approved by a notifying body for the purpose of being used in an explosive
environment. Do not revise this drawing without first having it reviewed by Engineering
1895.0026
and the ISP Manager. Any changes to this drawing could result in an unsafe condition.
LCD
2X 5345.0027
#2 T-F SCREW
4X 6070.0030
FOAM
5345.0028
#0 T-F SCREW
A730.03-IS
NiMH BATTERY BOARD
2X 6070.0031
FOAM
M730.41-IS
BATTERY SHIM
1097.0045
Notes:
QI COIL
1.
See BOM as provided by PCB Engineering.
2.
All equivalencies must be approved by PCB Engineering.
3.
All components and processes must be ROHS compliant.
3X 5290.0234
2-56 9/16" SCREW
L730.02
CALIBRATION LABEL
PROPRIETARY AND CONFIDENTIAL
THIS DOCUMENT, SUBMITTED IN CONFIDENCE,
CONTAINS PROPRIETARY INFORMATION WHICH SHALL NOT BE REPRODUCED OR
TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY
OTHER PURPOSE WITHOUT THE WRITTEN PERMISSION OF PCB PIEZOTRONICS, INC.
COPYRIGHT © PCB PIEZOTRONICS, INC.
FILE NAME: S730.04-IS 730 Spartan Assembly
DESCRIPTION
DATE
BY
ECO
INITIAL RELEASE
4/24/2019
D. ANDERSON
4813
9/24/2019
D. ANDERSON
4880
4/9/2020
D. ANDERSON
4977
Provo, Utah, USA (801) 375-0177
TITLE

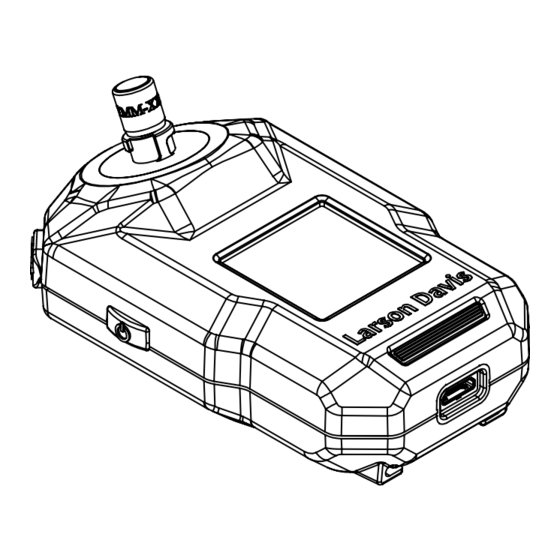

730 Spartan Assembly
AUTHOR
D. ANDERSON
SIZE
NUMBER
S730.04-IS
B
DATE
9/25/2018
SCALE 3:5
SHEET 1 OF 10
REV.
C

Advertisement

loading
Need help?

Need help?

Do you have a question about the LARSON DAVIS 730 and is the answer not in the manual?

Questions and answers

Related Manuals for PCB Piezotronics LARSON DAVIS 730

Summary of Contents for PCB Piezotronics LARSON DAVIS 730

  • Page 1 NUMBER REV. TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY S730.04-IS DATE OTHER PURPOSE WITHOUT THE WRITTEN PERMISSION OF PCB PIEZOTRONICS, INC. 9/25/2018 COPYRIGHT © PCB PIEZOTRONICS, INC. FILE NAME: S730.04-IS 730 Spartan Assembly SCALE 3:5...
  • Page 2 GOES IN EITHER SIDE. IF THE WIRE NEEDS TO BE RELEASED PRESS DOWN ON THE SLIT ON THE CONNECTOR TO RELEASE THE WIRE. MAKE SURE THE WIRES ARE NOT TOUCHING THE BATTERY OR THE BOARD AND ARE FLOATING ABOVE THE BOARD. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 2 OF 10...
  • Page 3 STEP OF THE BATTERY ASSEMBLY. FIX THE QI COIL IN PLACE USING THE MYLAR TAPE MAKING SURE THE ALIGNMENT OF THE QI COIL SIZE NUMBER REV. S730.04-IS IS CENTERED AS BEST AS POSSIBLE. SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 3 OF 10...

  • Page 4: Glass Cleaning

    REMOVE THE EXCESS EPOXY AROUND THE WINDOW INSIDE AND OUT. CLEAN THE GLASS INSIDE AND OUT. APPLY L730.04 730 SCREEN PROTECTOR TO BOTH THE INSIDE AND OUTSIDE OF THE GLASS. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 4 OF 10...
  • Page 5 THE GASKET AROUND THE USB WILL NOT BE HELD IN PLACE AT THIS POINT AND IS OK TO BE LOOSE IN ITS LOCATION JUST NOT BUNCHED UP. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 5 OF 10...
  • Page 6 WILL CAUSE ASSEMBLY ISSUES. CLEAN UP ANYTHING THAT STICKS OUT FROM THE EDGE OF THE BOARD. PRESS THE LATCH DOWN AFTER FULLY SEATING THE LCD RIBBON. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 6 OF 10...
  • Page 7 THE FRAME OR IT CAN CAUSE A TOLERANCE STACK ISSUE AND BREAK THE GLASS. CLICK THE ... ICON AND SELECT "UPGRADE FIRMWARE" FROM MENU. BE SURE BOTH CLIPS ARE LATCHED PROPERLY OVER THE LCD. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 7 OF 10...
  • Page 8 THE PREAMP PLACEMENT AS FINAL ALIGNMENT IS PART OF THE NEXT ASSEMBLY PLACE THE L730.01 (FOR NON-IS), OR L730.03-IS (FOR IS) INFORMATION LABEL ON STEP. THE BACK. SIZE NUMBER REV. S730.04-IS CONTINUE WITH ASSEMBLY. SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 8 OF 10...
  • Page 9 BACK THE GASKET TO ALLOW THE USB TO SLIDE INTO PLACE. THE FRAME WILL START PUSHING THE GASKET INTO PLACE AS THE BOARD SEATS INTO THE TOP CASE. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 9 OF 10...
  • Page 10 PLACE THE O-RING OVER THE THREADS AND SEAT IT AT THE BOTTOM OF THE METALWORK OF THE OUTSIDE. iF THE BUTTONS APPEAR TO BE CRUSHED, FIX THE GASKET BEFORE PREAMP TUBE. PROCEEDING. SIZE NUMBER REV. S730.04-IS SCALE 1:1 COPYRIGHT © PCB PIEZOTRONICS, INC. SHEET 10 OF 10...
