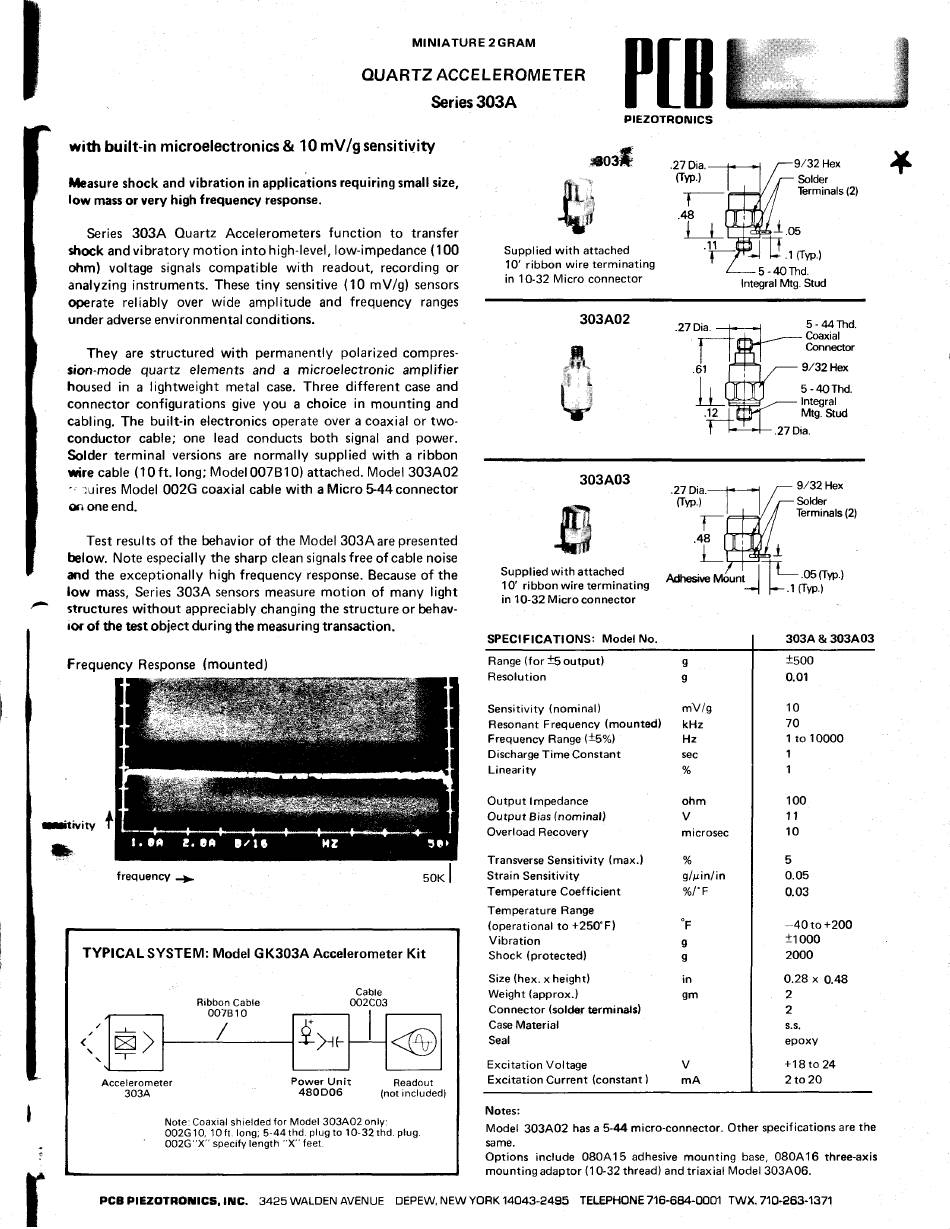

MINIATURE 2GRAM
QUARTZ ACCELEROMETER
Series 303A
with built-in microelectronics & 10 mV/g sensitivity
Measure shock and vibration in applications requiring small size,
low mass or very high frequency response.

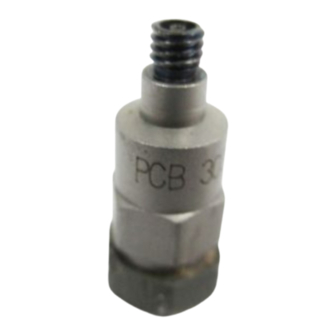

Series 303A Quartz Accelerometers function to transfer
shock and vibratory motion into high-level, low-impedance (100
ohm) voltage signals compatible with readout, recording or
analyzing instruments. These tiny sensitive (10 mV/g) sensors
operate reliably over wide amplitude and frequency ranges
under adverse environmental conditions.
They are structured with permanently polarized compres-
sion-mode quartz elements and a microelectronic amplifier
housed in a lightweight metal case. Three different case and
connector configurations give you a choice in mounting and
cabling. The built-in electronics operate over a coaxial or two-
conductor cable; one lead conducts both signal and power.
Solder terminal versions are normally supplied with a ribbon
wire cable (10ft. long; Model007B10) attached. Model 303A02
• quires Model 002G coaxial cable with a Micro 5-44connector
on one end.
Test results of the behavior of the Model 303Aare presented
below. Note especially the sharp clean signals free of cable noise
and the exceptionally high frequency response. Because of the
low mass. Series 303A sensors measure motion of many light
structures without appreciably changing the structure or behav-
ior of the test object during the measuring transaction.
Frequency Response (mounted)
tivity
frequency
50K|
r
TYPICAL SYSTEM: Model GK303A Accelerometer Kit
Ribbon Cable
007B10
Accelerometer
303A
Note: Coaxial shielded for Model 303A02 only:
002G10, 10ft. long; 5-44thd. plug to 10-32 thd. plug.
002G"X" specify length "X" feet.
PIEZOTRONICS
1803; I
.27 Dia.
(Typ.)
Supplied with attached
10' ribbon wire terminating
in 10-32 Micro connector
9/32 Hex
Solder
Terminals (2)
(Typ.)
5-40 Thd.
Integral Mtg. Stud
303A02
.27 Dia
5 - 4 4 Thd.
Coaxial
Connector
9/32 Hex
5-40 Thd.
Integral
Mtg. Stud
.27 Dia.
303A03
.27 Dia.
(Typ.)
Supplied with attached
10' ribbon wire terminating
in 10-32 Micro connector
SPECIFICATIONS: Model No.
Adhesive Mount
9/32 Hex
Solder
Terminals (2)
.05 (Typ.)
303A & 303A03
Range (for ±5 output)
Resolution
Sensitivity (nominal)
Resonant Frequency (mounted)
Frequency Range (±5%)
Discharge Time Constant
Linearity
Output Impedance
Output Bias (nominal)
Overload Recovery
Transverse Sensitivity (max.)
Strain Sensitivity
Temperature Coefficient
Temperature Range
(operational to +250°F)
Vibration
Shock (protected)
Size (hex. x height)
Weight (approx.)
Connector (solder terminals)
Case Material
Seal
Excitation Voltage
Excitation Current (constant )
9
9
mV/g
kHz
Hz
sec
%
ohm
V
microsec
%
g/Min/in
%/'F
°F
9
g
in
gm
V
mA
±500
0.01
10
70
1 to 1 0000
1
1
100
11
10
5
0.05
0.03
-40 to +200
±1000
2000
0.28 x 0.48
2
2
s.s.
epoxy
+ 18 to 24
2 to 20
Notes:
Model 303A02 has a 5-44 micro-connector. Other specifications are the
same.
Options include 080A15 adhesive mounting base, 080A16 three-axis
mounting adaptor (10-32 thread) and triaxial Model 303A06.
