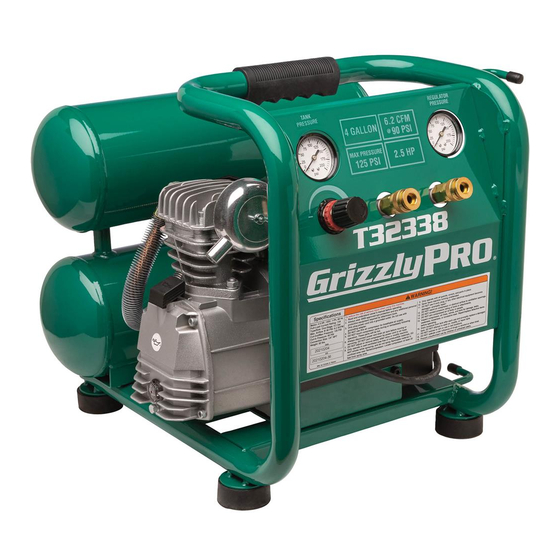

Grizzly T32338 Owner's Manual

4-gallon 2.5 hp portable air compressor
Hide thumbs Also See for T32338:
1
2
3
4
5
6

Advertisement

Table of Contents

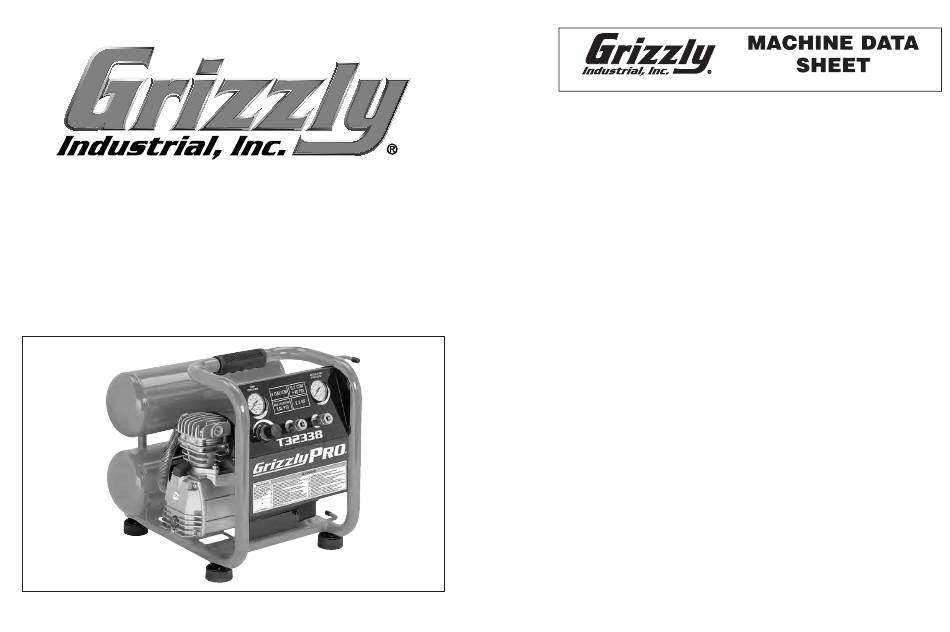

MODEL T32338
4-GALLON 2.5 HP PORTABLE
AIR COMPRESSOR
OWNER'S MANUAL
(For models manufactured since 12/20)
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL T32338
4-GALLON 2.5 HP PORTABLE AIR COMPRESSOR
Product Dimensions:
Weight .............................................................................................................................................................................. 82 lbs.
Width (side-to-side) x Depth (front-to-back) x Height ..................................................................................19 x 19 x 19-1/2 in.
Footprint (Length x Width) .........................................................................................................................................16 x 15 in.
Shipping Dimensions:
Type ................................................................................................................................................................... Cardboard Box
Content .......................................................................................................................................................................... Machine
Weight .............................................................................................................................................................................. 83 lbs.
Length x Width x Height .....................................................................................................................................20 x 19 x 20 in.
Electrical:
Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz
Full-Load Current Rating ...................................................................................................................................................... 14A
Minimum Circuit Size ........................................................................................................................................................... 20A
Connection Type ..................................................................................................................................................... Cord & Plug
Power Cord Included ............................................................................................................................................................Yes
Power Cord Length ............................................................................................................................................................72 in.
Power Cord Gauge ....................................................................................................................................................... 14 AWG
Plug Included ........................................................................................................................................................................Yes
Included Plug Type ..............................................................................................................................................................5-15
Switch Type ..................................................................................................................Pressure Switch w/Motor Reset Button
Motors:
Main
Horsepower ......................................................................................................................................................................2.5 HP
Phase .................................................................................................................................................................... Single-Phase
Amps .................................................................................................................................................................................... 14A
Speed .........................................................................................................................................................................3450 RPM
Type ......................................................................................................................................... TEFC Capacitor-Start Induction
Power Transfer ................................................................................................................................................................. Direct
Bearings ............................................................................................................................. Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type ..................................................................................................................................External
Main Specifications:
Operation Information
Compressor Style ..............................................................................................................................................Horizontal
Pump Type ...................................................................................................................................................... One-Stage
Max. Airflow/Delivery (at 40 PSI) ..................................................................................................................... 7.6 SCFM
Max. Airflow/Delivery (at 90 PSI) ..................................................................................................................... 6.2 SCFM
Cut-Out Pressure .................................................................................................................................................125 PSI
Cut-In Pressure ......................................................................................................................................................95 PSI
Duty Cycle ................................................................................................................................................................50/50
Tank Size .................................................................................................................................. 4.2 Gallons (Twin Stack)
Number of Cylinders ........................................................................................................................................................2
Pump Lubrication .....................................................................Grizzly Model T28041 or Equivalent Air Compressor Oil
Drain Valve Type ...............................................................................................................................................Ball Valve
Roll Cage .....................................................................................................................................................................Yes
Regulator .....................................................................................................................................................................Yes
Output Port Information
Connection Type ........................................................................................................................................Quick-Coupler
Connection Size ................................................................................................................................................. 1/4" NPT
Number of Connections ...................................................................................................................................................2
Hose Included .............................................................................................................................................................. No
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T32338 and is the answer not in the manual?

Questions and answers

Related Manuals for Grizzly T32338

Summary of Contents for Grizzly T32338

  • Page 1 Cut-In Pressure ..............................95 PSI Duty Cycle ................................50/50 Tank Size ..........................4.2 Gallons (Twin Stack) Number of Cylinders ................................2 Pump Lubrication ..............Grizzly Model T28041 or Equivalent Air Compressor Oil Drain Valve Type ...............................Ball Valve Roll Cage ..................................Yes Regulator ..................................Yes Output Port Information Connection Type ............................Quick-Coupler...

  • Page 2: Important Safety Instructions

    1 ： IMPORTANT SAFETY INSTRUCTIONS ● BEFORE STARTING COMPRESSOR, PULL SAFETY VALVE RING TO MAKE SURE THE VALVE MOVES FREELY. THE SAFETY VALVE IS FACTORY-INSTALLED TO PROTECT THE AIR RECEIVER FROM DAMAGE, SHOULD MALFUNCTION OCCUR IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY IN THE PRESSURE SWITCH.

  • Page 3: General Requirements

    2 ： GENERAL DESCRIPTION OF AIR COMPRESSOR To compress air, the piston moves up and down in the cylinder. During the down-stroke, air is drawn in through the inlet valve. The discharge valve remains closed. On the up-stroke of the piston, air is compressed.

  • Page 4: Compressor Lubrication

    6 ： COMPRESSOR LUBRICATION ： This pressure switch turns the compressor ON and OFF . It is operated manually, but 5-2-3-1 Do not add or change oil while the compressor is in operation. Use the recommended SAE10-30W when it is in the “ON” position, it allows the compressor to start up or shut down non-detergent oil only.

  • Page 5: Maintenance Checklist

    10 ： TROUBLESHOOTING ： CONDITION CAUSE CORRECTIVE ACTION Compressor does not 1 ： Loose electrical connection. 1 ： Check wiring connection. Before doing any maintenance or adjustments to your air compressor, the following safety start. 2 ： Motor overheated. 2 ： Press reset button or wait for precautions should be taken: automatic reset.
  • Page 6 Compressor over heating. 1 ： Undersized unit for air 1 ： Use unit with larger capacity. 11 ： PARTS： requirements. 2 ： Compressor location. 2 ： See installation section. 3 ： Air leaks in the system. 3 ： Fix leaks. 4 ：...
